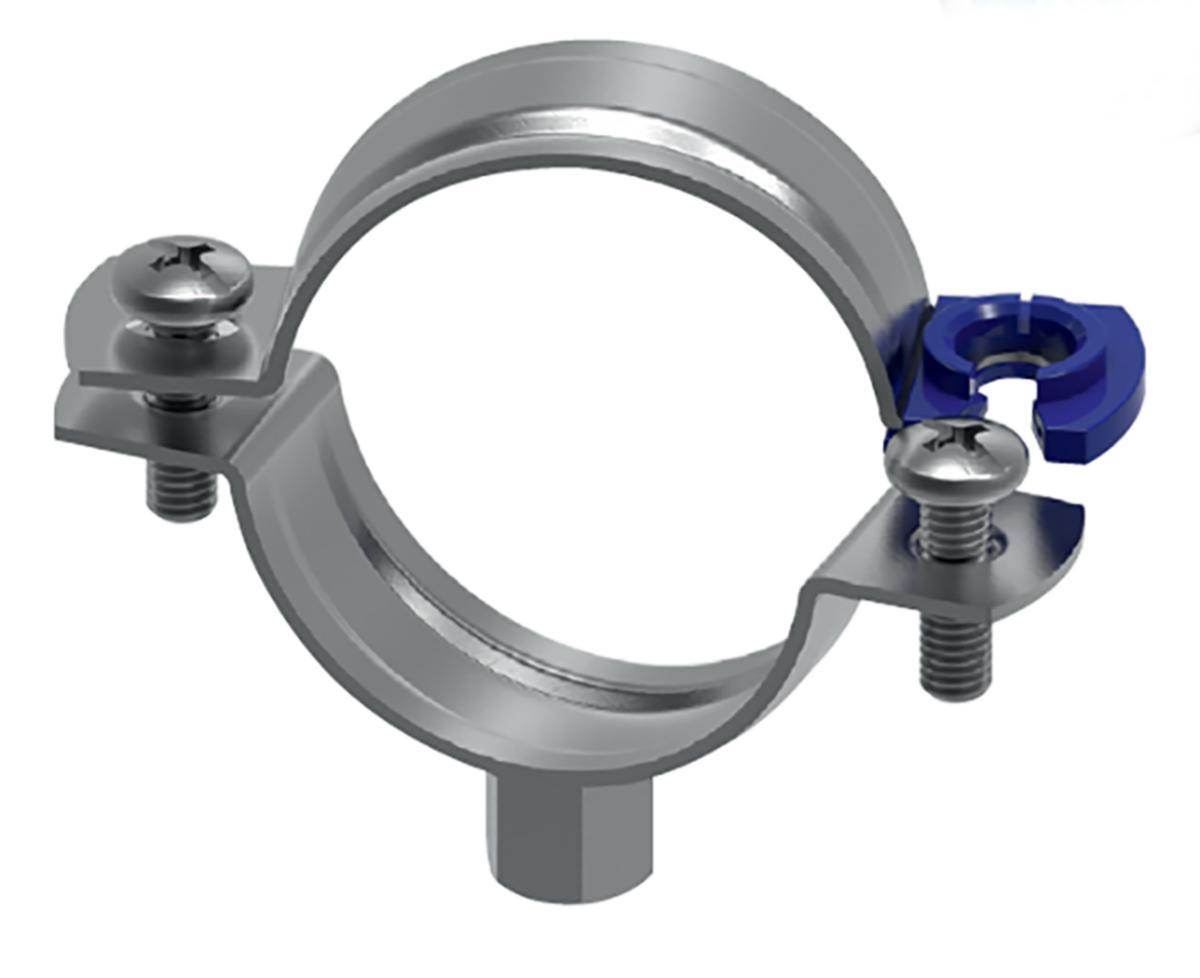

Clip with Connecting Nut 378, Electroplated, Jirva
CLAMP 802 M8/M10 112-118 FZB. JIRVA
Article number:
3809407
to see price and stock
Zinc plated dual clamp with 2 accompanying screws. Connector thread M8 or combined M8/M10 thread. Recommended maximum loads up to dimension 91 mm are 1.0 kN, and 1.5 kN for dim 95-163 mm.
- Article number: 3809407
- Replaces art.nbr: 43724089
- Material class PLG100
Technical data
- Packagin Size: 1 ST/25 ST/1500 ST
- Outer pipe diameter: 118-125 mm
- Width: 25 mm
- Connection size, connection facility: M8/M10
- Material: Steel
- Permitted work load: 2100 N
- Inlay: None
- Connection facility: Internal thread
- Suitable for aluminium tube: Yes
- Suitable for number of pipes: 1
- Suitable for cast iron pipe: Yes
- Suitable for copper tube: Yes
- Suitable for plastic tube: Yes
- Suitable for stainless steel tube: Yes
- Suitable for pipe coil: Yes
- Suitable for steel tube: Yes
- Surface protection: Galvanic/electrolytic zinc plated
- FM quality mark: No
- LPCB quality mark: No
- Lock facility: Other
- UL quality mark: No
- ULC quality mark: No
- Surface treatment: Untreated
- KIWA certified: No
- Medium temperature (continuous): 0-95 °C
- Material thickness: 2.0 mm
- Corrosiveness class: C1
- REACH Date: 2026-01-12
- Material dimension: 25x2.0
- With screw: M8X25
- REACH Information obligation: No
