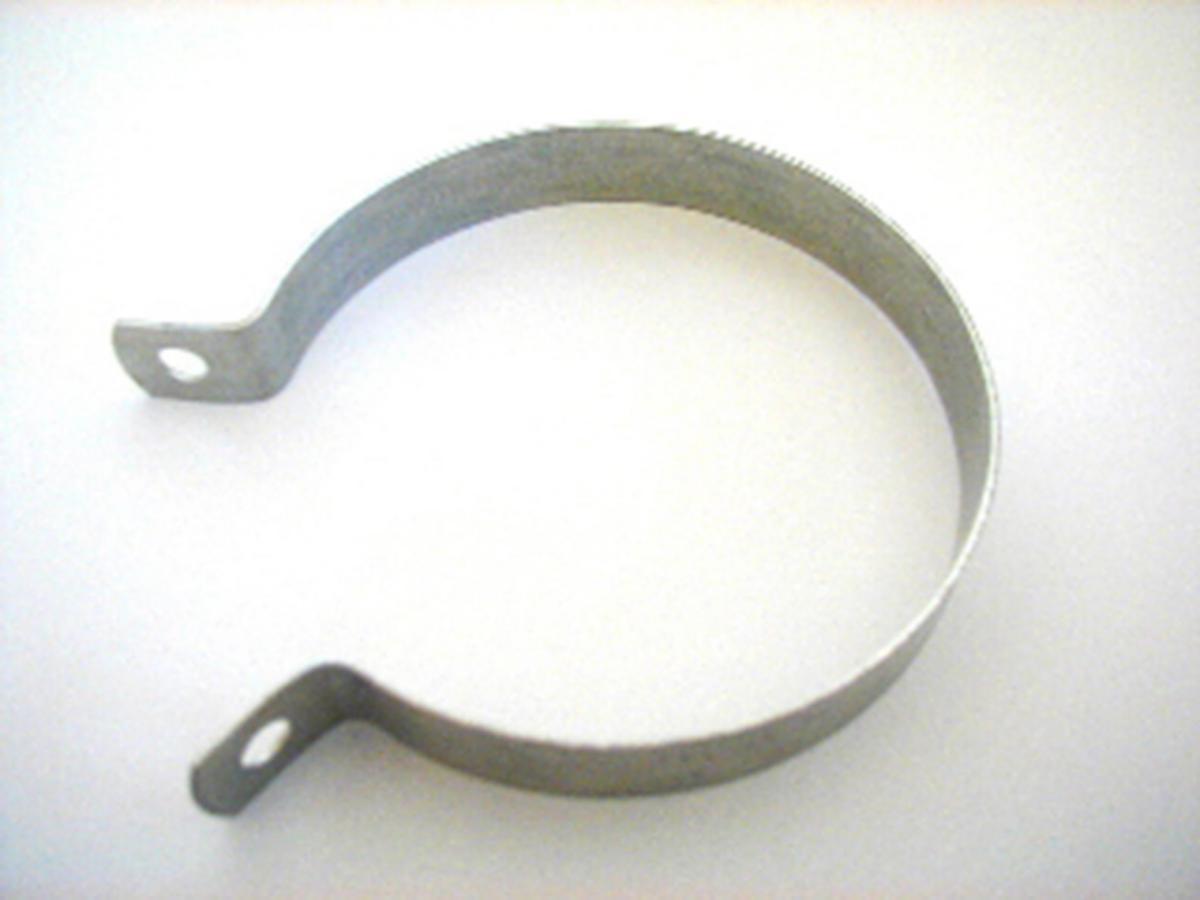

Clamp wrap for thicker steel pipes
CLAMP 48MM F ISOLATION 22MM 0
Article number:
3808873
to see price and stock
Coarser type. Zinc Plated Galv. Hole diameter 9.0 mm for dimensions up to 139.7 mm, and larger with hole diameter 11 mm.
- Article number: 3808873
- Material class PLG100
Technical data
- Packagin Size: 1 ST/10 ST
- Outer pipe diameter: 48 mm
- Material: Steel
- Connection facility: Hole
- Surface protection: Galvanic/electrolytic zinc plated
- Suitable for plastic tube: Yes
- Suitable for thin-walled pipe: Yes
- Colour: Grey
- Suitable for aluminium tube: Yes
- Suitable for copper tube: Yes
- Suitable for steel tube: Yes
- Shape: Strip
- Suitable for stainless steel tube: Yes
- Medium temperature (continuous): -45-110 °C
- Suitable for cast iron pipe: Yes
- Max. medium temperature (continuous): 110 °C
- Corrosiveness class: C2
- REACH Date: 2026-01-12
- Recommended screw: M 8x20
- Dimension other: 20x1.5 mm
- REACH Information obligation: No
