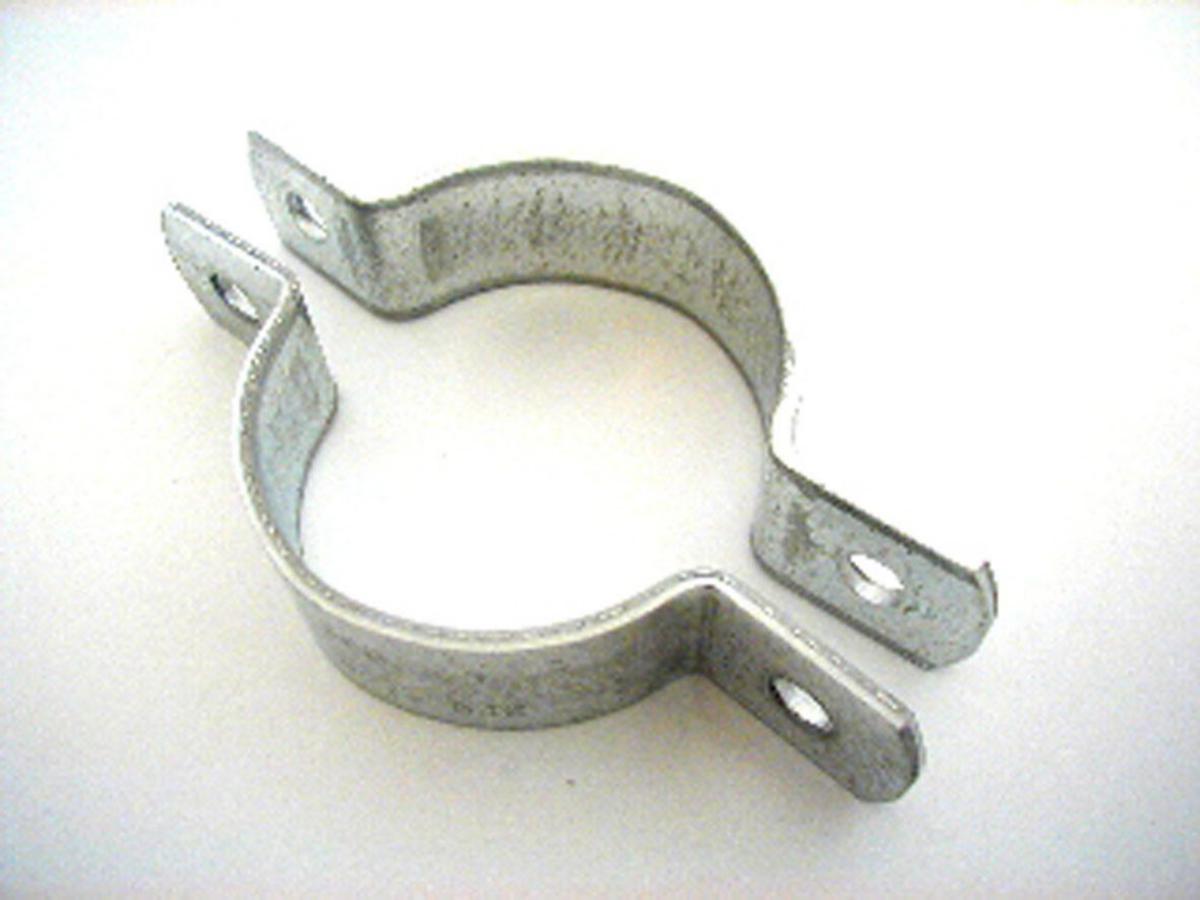

Split clamps FFZV type standard
CLAMP FFZV TWO-PIECE. 33.7 0
Article number:
3808334
to see price and stock
Supplied without screw and nut.
- Article number: 3808334
- Ean no: 7350078691703
- Material class PLG100
Technical data
- Packagin Size: 1 PAR/10 PAR
- Outer pipe diameter: 33.7 mm
- Width: 25 mm
- Material: Steel
- Permitted work load: 5200 N
- Inlay: None
- Connection facility: Hole
- Suitable for aluminium tube: Yes
- Suitable for number of pipes: 1
- Suitable for copper tube: Yes
- Suitable for plastic tube: Yes
- Suitable for stainless steel tube: Yes
- Suitable for pipe coil: Yes
- Suitable for steel tube: Yes
- Surface protection: Galvanic/electrolytic zinc plated
- FM quality mark: No
- LPCB quality mark: No
- Lock facility: Other
- UL quality mark: No
- ULC quality mark: No
- Surface treatment: Untreated
- KIWA certified: No
- Medium temperature (continuous): 0-95 °C
- Material thickness: 3 mm
- Corrosiveness class: C2
- REACH Date: 2026-01-12
- Recommended screw: M8x30
- REACH Information obligation: No
- Dimension other: 25x3 mm
