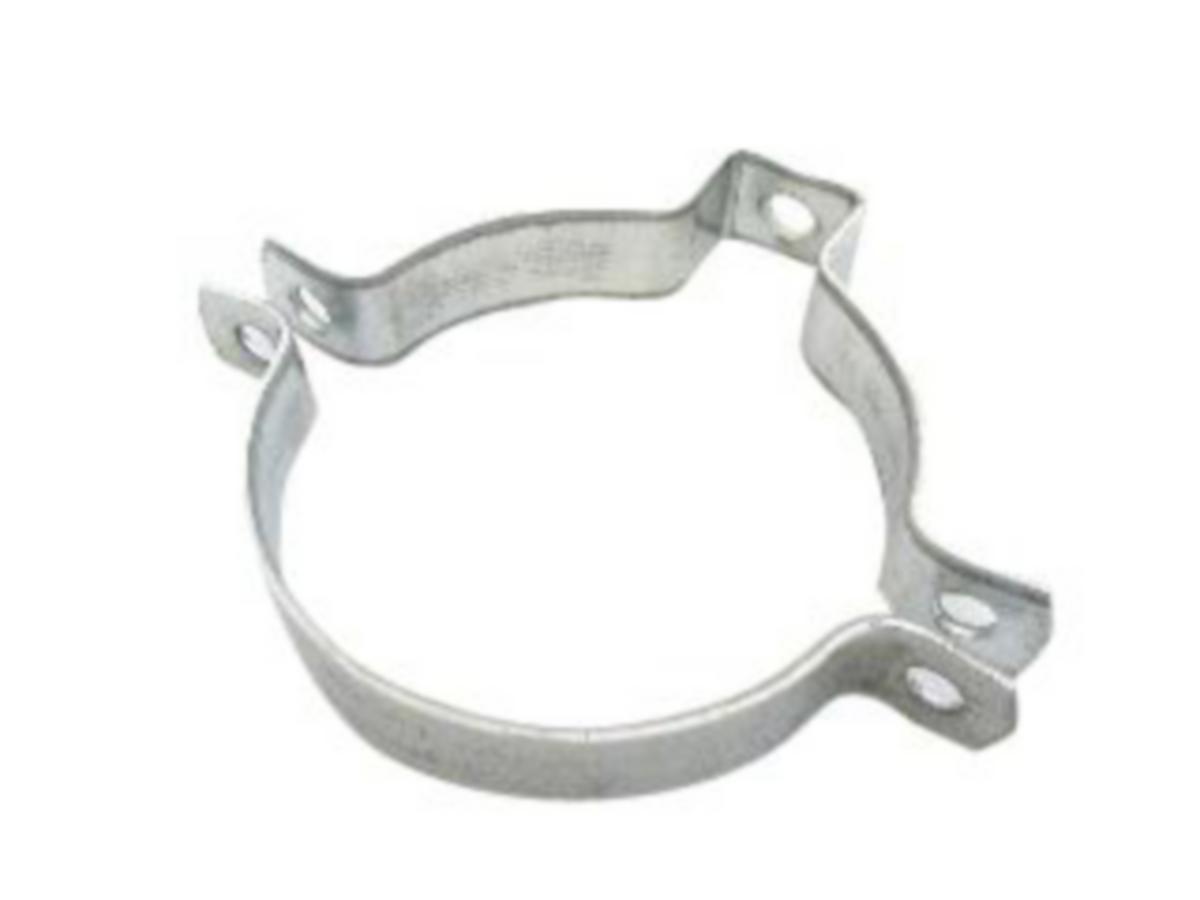

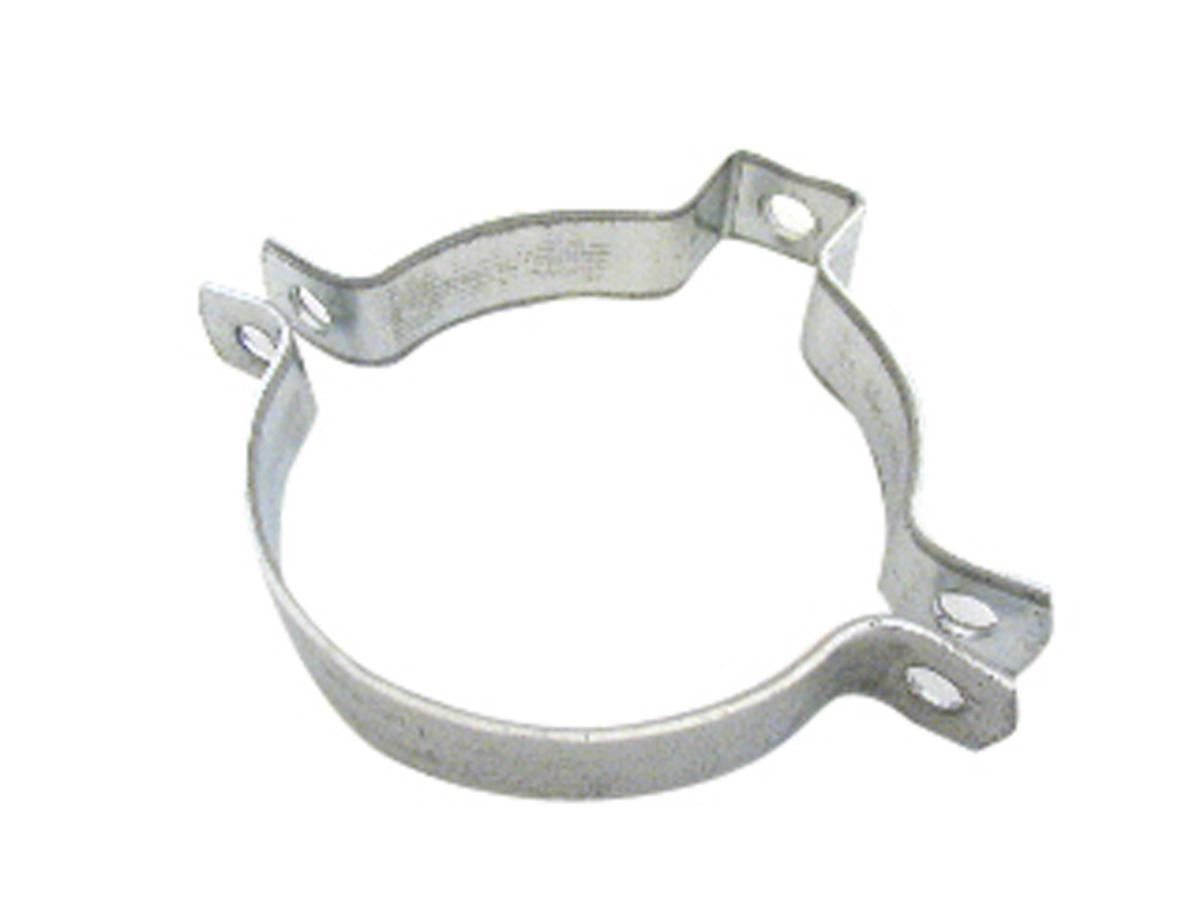

Clip Clamp for Plastic and Drain Pipes
STOPPER CLAMP FZBVPVC/MA50 0
Article number: Suppl. article no:
3814572
3814572
to see price and stock
For plastic waste pipes and MA pipes. The clamps are provided with a pressed out fixing lug to get the correct distance from the wall. Fixing hole 11 Ø mm. Supplied without screw and nut.
- Article number: 3814572
- Suppl. article no: 3814572
- Material class PLI100
Technical data
- Packagin Size: 1 PAR/5 PAR
- Outer pipe diameter: 50 mm
- Width: 25 mm
- Material: Steel
- Inlay: None
- Connection facility: Hole
- Suitable for aluminium tube: Yes
- Suitable for number of pipes: 1
- Suitable for cast iron pipe: Yes
- Suitable for copper tube: Yes
- Suitable for plastic tube: Yes
- Suitable for stainless steel tube: Yes
- Suitable for pipe coil: Yes
- Suitable for steel tube: Yes
- Surface protection: Galvanic/electrolytic zinc plated
- FM quality mark: No
- LPCB quality mark: No
- Lock facility: Other
- UL quality mark: No
- ULC quality mark: No
- Surface treatment: Untreated
- KIWA certified: No
- Medium temperature (continuous): 0-95 °C
- Material thickness: 3 mm
- Corrosiveness class: C2
- REACH Date: 2026-01-12
- Recommended screw: M10x25
- REACH Information obligation: No
- Dimension other: 25x3 mm
