Plejd

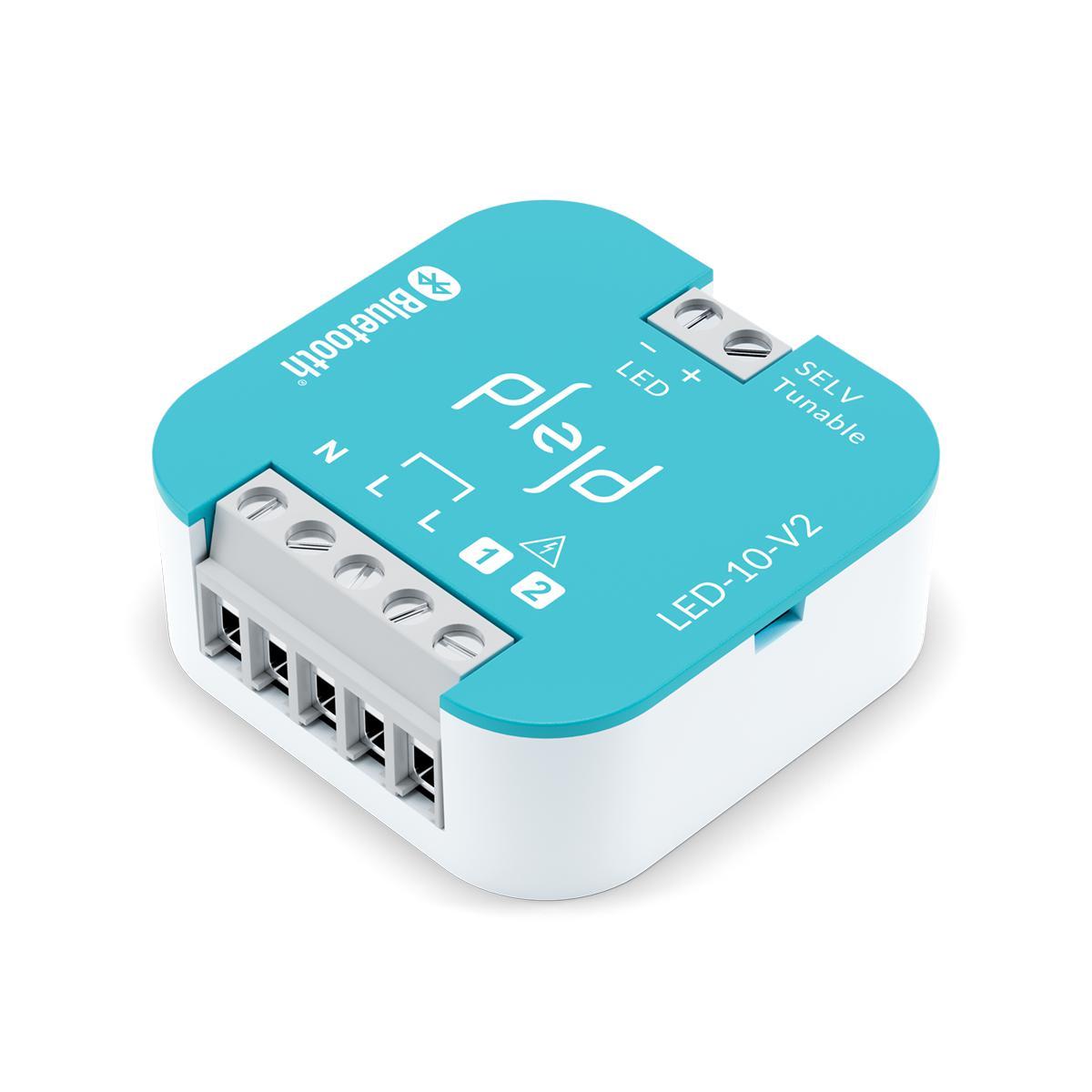

LED driver 10W
LED DRIVER 10 W
Article number: Suppl. article no:
7984894
LED-10-V2
to see price and stock
The 10 W LED driver features a built-in dimmer for constant current (CC) and constant voltage (CV) loads. The LED-10-V2 supports 2-wire tunable white and has separate inputs for control via a momentary push-button. The product can be controlled wirelessly via the app, automatically using time functions, or through other Plejd products.
- Article number: 7984894
- Suppl. article no: LED-10-V2
- Ean no: 7330018011945
- Material class QH8802
Technical data
- Packagin Size: 1 PCS/30 PCS/3600 PCS
- Output current: 150-700 mA
- Output voltage: 0-28 V
- Output power: 1-10 W
- Degree of protection (IP): IP20
- Suitable for constant voltage: Yes
- Suitable for constant current: Yes
- Dimmable: Yes
- Height: 18 mm
- Length: 46 mm
- Width: 46 mm
- Housing: Plastic housing
- Diameter: 57 mm
- Protection class according to IEC 61140: II
- Dimming programmable: Yes
- Dimming manufacturer's proprietary system: Yes
- Dimming with push-button: Yes
- Compatible with Amazon Alexa: Yes
- Compatible with Apple HomeKit: Yes
- Compatible with Google Assistant: Yes
- Operation by Bluetooth: Yes
- Power consumption: 0.3 W
- Efficiency: 83 %
- Frequency input voltage: 50 Hz
- Input voltage: 220-240 V
- Short-circuit protected: Yes
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 350
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 350
- Ambient temperature: -20-35 °C
- Independently operating: Yes
- Overload protection: Yes
- Overtemperature protection: Yes
- Mains surge immunity (differential mode, L-N): 1 kV
- Number of colour channels: 2
- REACH Date: 2026-05-07
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
- Suitable for DIN rail (top hat rail) mounting: Yes
- Interface Pulse Width Modulation (PWM): Yes
