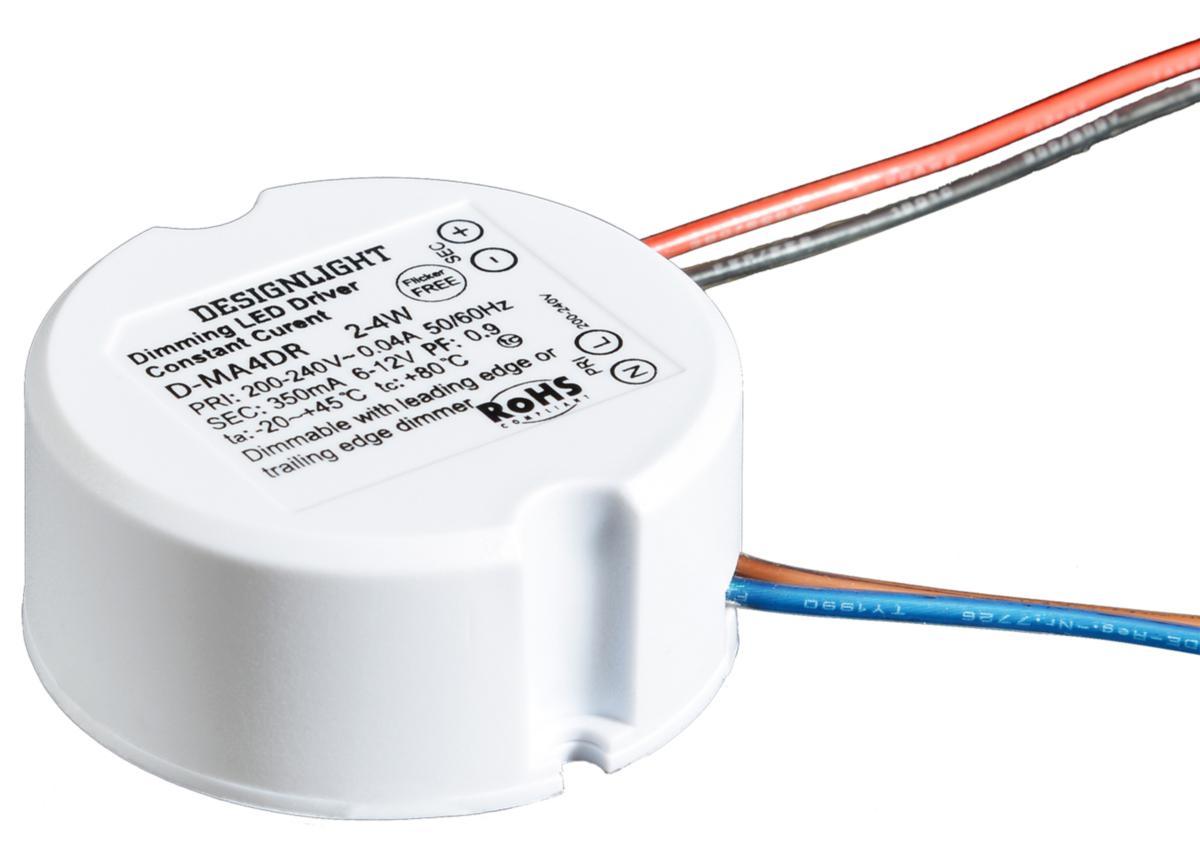

LED Driver 2-4W D-MA4D Dimmable, Designlight
Driver 2-4W dimmable
Article number: Suppl. article no:
7982492
D-MA4DR2
to see price and stock
A 2-4W driver in a minimalist design, dimmable. Excellent for installation in A/B or ROT box, or bolted as surface installation. Popular when installing smaller LED downlights in, for example, window recesses
- Article number: 7982492
- Suppl. article no: D-MA4DR2
- Ean no: 7340132805818
- Replaces art.nbr: 7981792
- Material class QQ3840
- This is an alternative to item 7981792
Technical data
- Packagin Size: 1 PCS/100 PCS
- Type: D-MA4DR2
- Output current: 350 mA
- Output voltage: 6-12 V
- Output power: 2-4 W
- Degree of protection (IP): IP44
- Suitable for constant voltage: No
- Suitable for constant current: Yes
- Suitable for DC-voltage (primary side): No
- Suitable for outdoor use: No
- Height: 20 mm
- Length: 47 mm
- Width: 47 mm
- Housing: Plastic housing
- Diameter: 47 mm
- Protection class according to IEC 61140: II
- Dimmable: Yes
- Dimming DALI: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming Touch and Dim: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: Yes
- Dimming mains voltage modulation: Yes
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): Yes
- Constant light output (CLO): No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- IFTTT support available: No
- Operation by Bluetooth: No
- REACH Date: 2023-09-13
- REACH Information obligation: No
