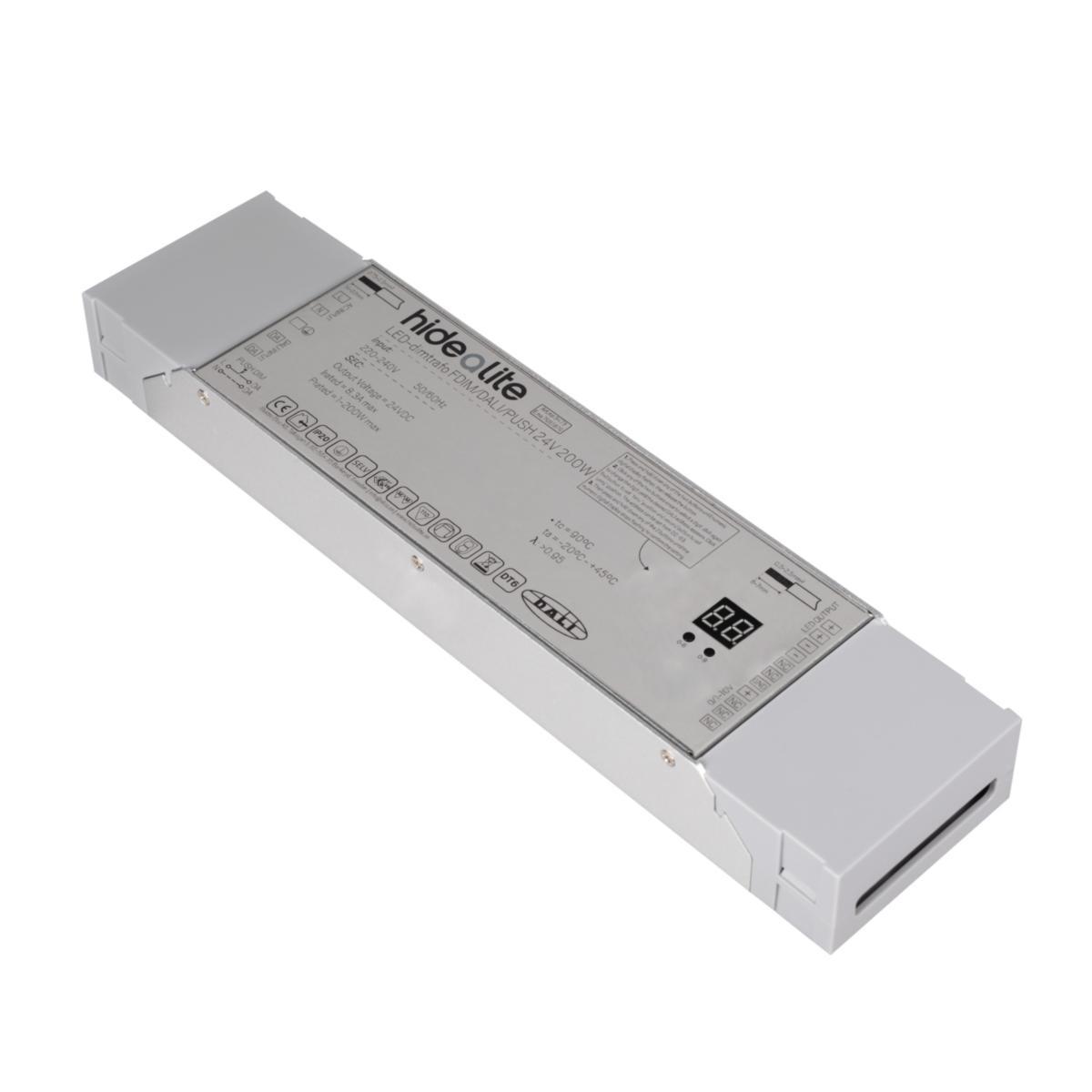

Dimmer LED FDIM/DALI/PUSH, Hide-a-Lite
DIMTRAF FDIM/DALI/PUSH 24V200W
Article number: Suppl. article no:
7981879
7981879
to see price and stock
Powerful dimming transformer for 24V LED strips. Perfect for phase dimming of LEDstrip single color via turntable dimmer. Can also be dimmed via push (230V), DALI or 0 / 1-10V. Memory function that lights up with the last set value after power failure. The entire effect can be taken out via an output.
- Article number: 7981879
- Suppl. article no: 7981879
- Ean no: 7392971136752
- Material class QQ382A
Technical data
- Packagin Size: 1 ST/18 ST
- Output voltage: 24 V
- Output power: 1-200 W
- Degree of protection (IP): IP20
- Suitable for constant voltage: Yes
- Suitable for constant current: No
- Suitable for DC-voltage (primary side): No
- Suitable for outdoor use: No
- Dimmable: Yes
- Height: 39 mm
- Length: 330 mm
- Width: 79 mm
- Housing: Metal housing
- Protection class according to IEC 61140: I
- Dimming DALI: Yes
- Dimming 0-10 V: Yes
- Dimming 1-10 V: Yes
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: Yes
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming Touch and Dim: No
- Dimming with push-button: Yes
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: Yes
- Dimming phase cut-off (trailing edge): Yes
- Dimming phase cut-on (leading edge): No
- REACH Date: 2022-06-01
- REACH Information obligation: No
- Dimming GPRS: No
