Hide-a-lite
Converter PLR, Hide-a-lite

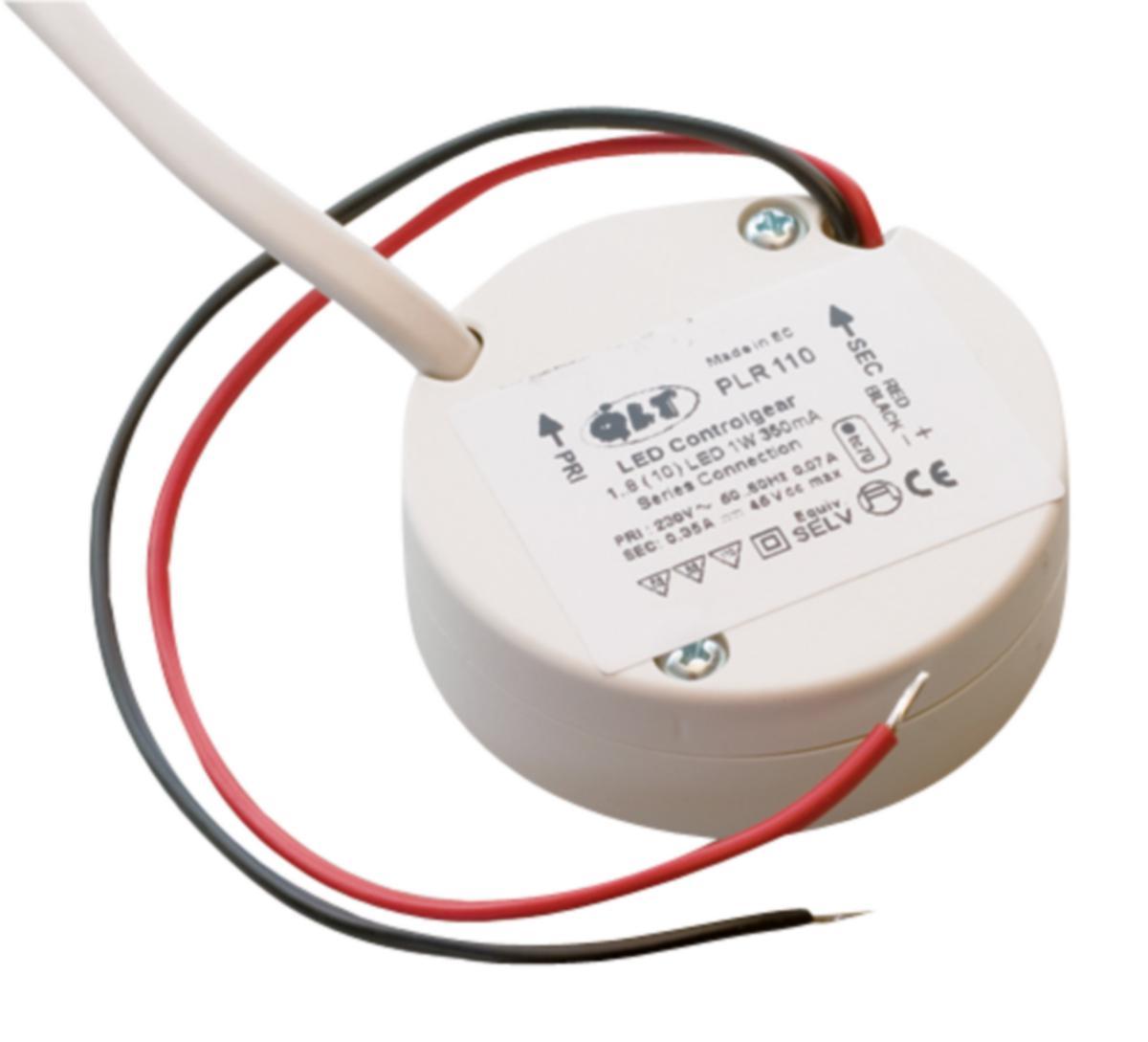

CONVERTER PLR 110 LED
Article number: Suppl. article no:
7452081
7452081
to see price and stock
Constant current converter intended for 350mA or 700mA LED light sources. For mounting in a device box or similar.
- Article number: 7452081
- Suppl. article no: 7452081
- Ean no: 7331575109298
- Material class QQ3820
Technical data
- Packagin Size: 1 ST/40 ST
- Type: PLR110
- Output current: 350 mA
- Output voltage: 2-30 V
- Output power: 1-10.5 W
- Degree of protection (IP): IP20
- Suitable for constant voltage: FALSE
- Suitable for constant current: TRUE
- Suitable for DC-voltage (primary side): FALSE
- Suitable for outdoor use: FALSE
- Height: 19 mm
- Housing: Plastic housing
- Diameter: 53 mm
- Model: Static
- Protection class according to IEC 61140: II
- Dimmable: FALSE
- Dimming DALI: FALSE
- Dimming 0-10 V: FALSE
- Dimming 1-10 V: FALSE
- Dimming DMX: FALSE
- Dimming DSI: FALSE
- Dimming LineSwitch: FALSE
- Dimming RF: FALSE
- Dimming Zigbee: FALSE
- Dimming potentiometer (integrated): FALSE
- Dimming programmable: FALSE
- Dimming manufacturer's proprietary system: FALSE
- Dimming Touch and Dim: FALSE
- Dimming with push-button: FALSE
- Dimming Sine Wave Reduction: FALSE
- Dimming mains voltage modulation: FALSE
- Dimming phase cut-off (trailing edge): FALSE
- Dimming phase cut-on (leading edge): FALSE
- REACH Date: 2022-06-01
- REACH Information obligation: No
- Dimming GPRS: FALSE
