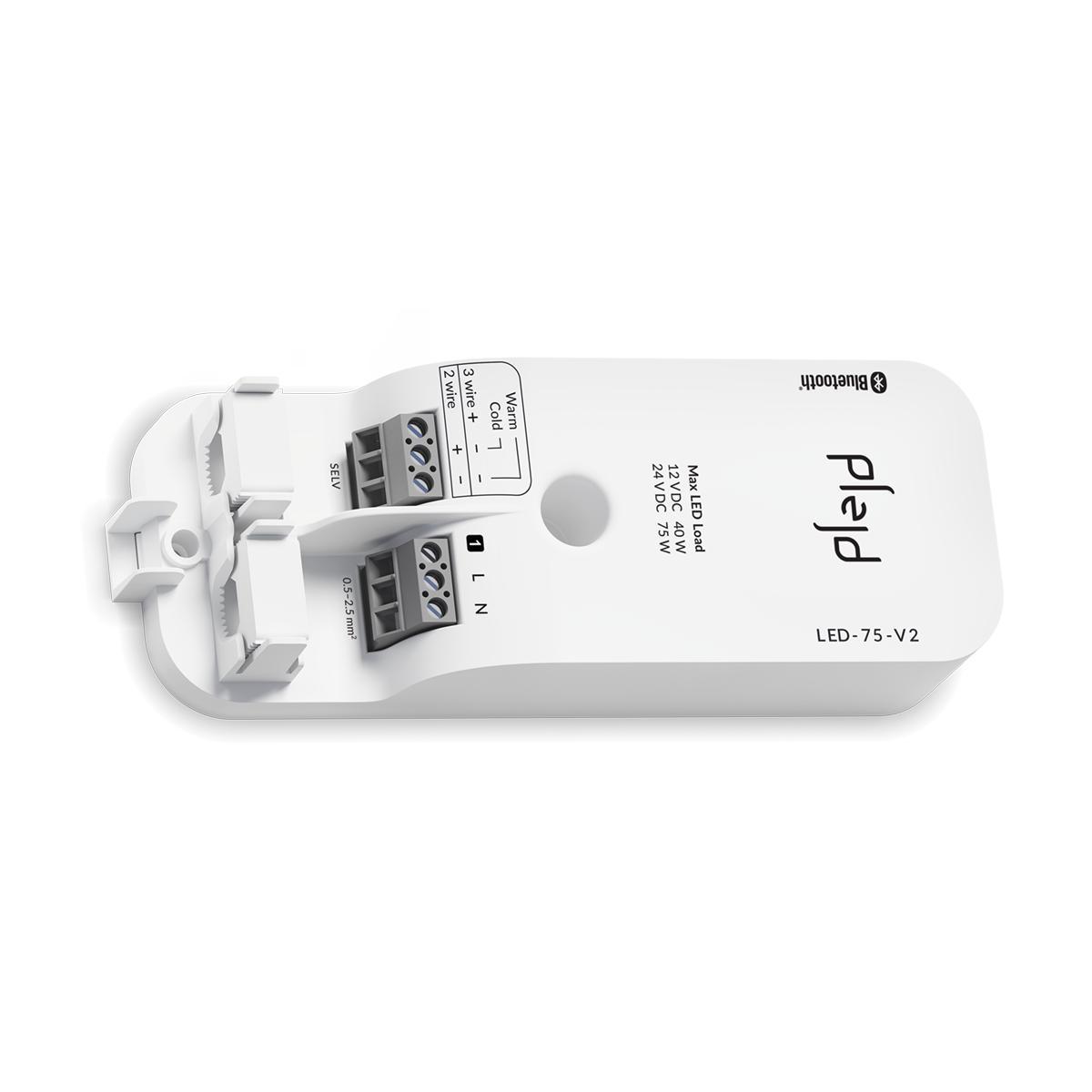

LED Driver,12/24VDC Tunable White
LED-DRIVER 75W
Article number: Suppl. article no:
7984895
LED-75-V2
to see price and stock
LED driver 75 W for use with 12/24 V DC tunable white or single color LED strips for up to 75 W load. The product has a control input and can also be controlled wirelessly via the app or through other products from Plejd. It can also be controlled automatically with built-in time functions such as astro and weekly clocks. Can be mounted on the wall with screws (not included).
- Article number: 7984895
- Suppl. article no: LED-75-V2
- Ean no: 7330018011952
- Material class QH8800
Technical data
- Packagin Size: 1 PCS/16 PCS
- Output current: 0-3125 mA
- Output voltage: 12-24 V
- Output power: 1-75 W
- Degree of protection (IP): IP20
- Suitable for constant voltage: Yes
- Height: 34 mm
- Length: 162 mm
- Width: 62 mm
- Housing: Plastic housing
- Diameter: 68 mm
- Protection class according to IEC 61140: II
- Dimmable: Yes
- Dimming programmable: Yes
- Dimming manufacturer's proprietary system: Yes
- Dimming with push-button: Yes
- Compatible with Amazon Alexa: Yes
- Compatible with Apple HomeKit: Yes
- Compatible with Google Assistant: Yes
- Operation by Bluetooth: Yes
- Power consumption: 0.35 W
- Efficiency: 90 %
- Frequency input voltage: 50 Hz
- Input voltage: 220-240 V
- Short-circuit protected: Yes
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 45
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 45
- Ambient temperature: -20-40 °C
- PWM modulation: Yes
- Independently operating: Yes
- Overtemperature protection: Yes
- Number of colour channels: 2
- REACH Date: 2025-12-23
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
