SG Armaturen

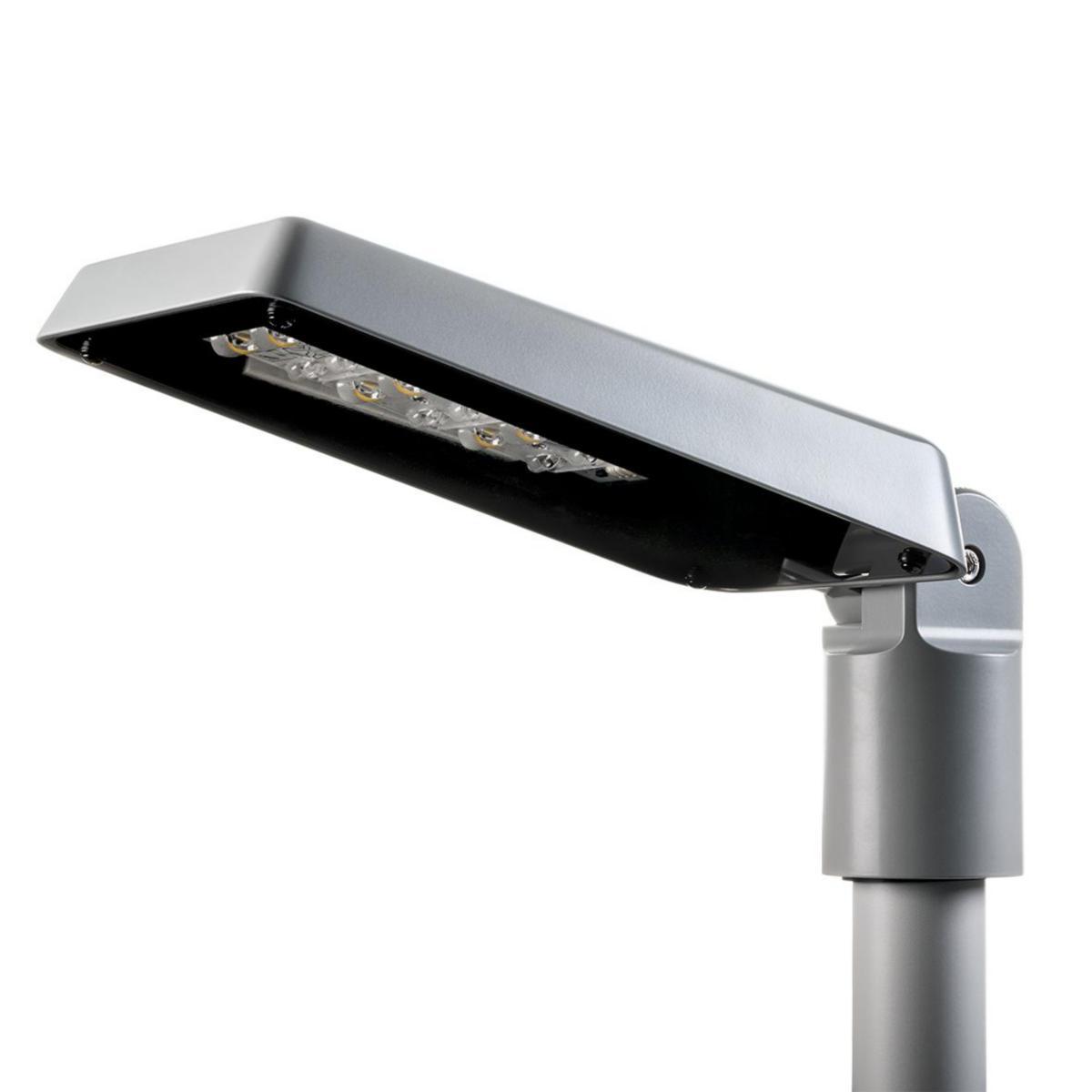

Street light Fenes
Fenes Lins 1 2500 3000K
Article number: Suppl. article no:
7749501
212631
to see price and stock
Fenes is an LED luminaire with asymmetric optics for mounting on posts or arms that is suitable for sports fields, residential areas, parking lots and the like. Lens 1 is ideal for, for example, electric light trails. Equipped with a multi-adapter that fits both Ø60 posts and Ø42/48 arms. Can be adjusted in steps of 5°. Fenes replaces old 125 W HQL and 70 W NAV luminaires with energy-saving LED technology. It is a compact and durable fixture in die-cast aluminum with a tempered glass front. Supplied complete with 8m cable.
- Article number: 7749501
- Suppl. article no: 212631
- Ean no: 7021982126314
- Material class QU0830
Technical data
- Packagin Size: 1 PCS/4 PCS
- Type: Lens 1
- Max. system power: 20 W
- Rated luminous flux according to IEC 62722-2- 1: 2250 lm
- Colour temperature: 3000 K
- Colour rendering index CRI: 70-79
- Housing colour: Grey
- Lamp type: LED not exchangeable
- Cable length: 8 m
- Degree of protection (IP): IP66
- Dimmable: No
- Protection class according to IEC 61140: II
- Impact strength: IK08
- Housing material: Aluminium
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Lamp holder: None
- Suitable for number of light sources: 1
- With light source: Yes
- Mounting method: Post top/side entry
- Nominal voltage: 220-240 V
- Suitable for spigot size: 60 mm
- Number of poles: 2
- Material cover: Glass opal
- Width: 170 mm
- Height/depth: 145 mm
- Conductor cross section: 1 mm²
- Colour of light: White
- Light distributor: Other
- Luminaire efficacy: 113 lm/W
- Suitable for lamp power: 20 W
- Length: 370 mm
- With connection cable: Yes
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Type of wiring: Ending
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 95 %
- Failure rate at median useful life of 100,000 h at 25 °C ambient (tq): 50 %
- Exchangeable control gear: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: C
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 50
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 85
- Connection type: Other
- REACH Date: 2024-08-23
- REACH Information obligation: No
