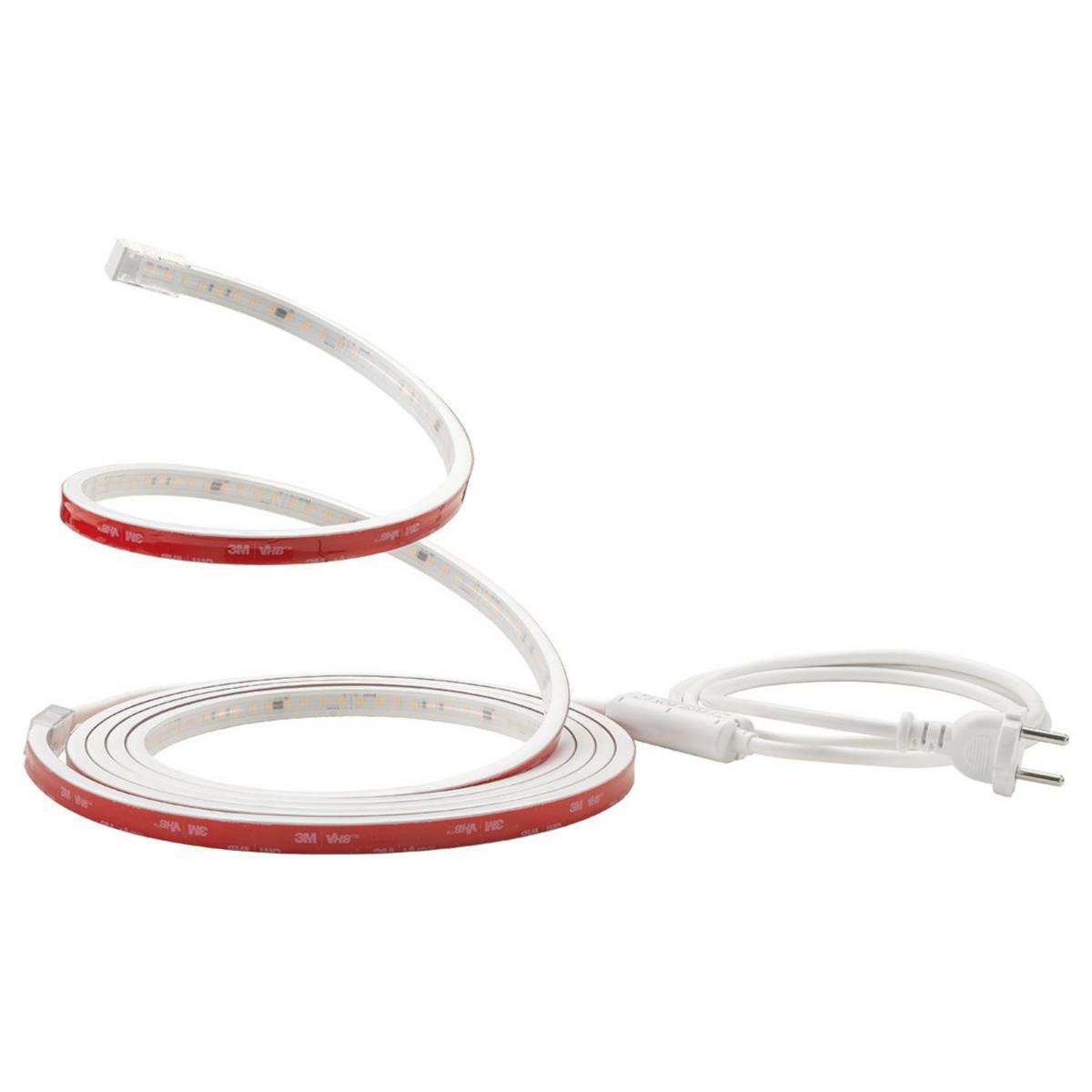

LED strip Stripline 230V outdoor
Stripline 230V 5m 9W/m 27K
Article number: Suppl. article no:
7770539
391480
to see price and stock
StripLine 230V Outdoor, a versatile LED strip system designed for architectural lighting effects on roofs and facades, functional lighting in parking garages, under stair railings or decorative garden lighting. Direct 230V connection; no driver required, allowing long lengths without voltage drop. Available in lengths up to 40 meters and supplied with 1.5 m cable and plug. Mount it using the tape on the back or with the included mounting clips, either directly on surfaces or in an aluminum profile (sold separately). The aluminum profile contains a robust polycarbonate (PC) diffuser that is easy to install and remove. For seamless installations, the diffuser is also available in rolls for very long, continuous runs. Stripline 230V Outdoor can be cut every 10 cm to adapt to each installation. After cutting, simply apply a new end cap to maintain water protection. The LED strip is encapsulated to IP65 standards and made of UV-resistant materials, ensuring durability and reliability outdoors.
- Article number: 7770539
- Suppl. article no: 391480
- Ean no: 7021983914804
- Material class QT7630
Technical data
- Packagin Size: 1 PCS/12 PCS
- Max. system power: 9 W
- Colour temperature: 2700 K
- Total length: 5 m
- Lamp power per meter: 9 W
- Number of nodes per meter: 120
- Degree of protection (IP): IP65
- Width: 12.6 mm
- Height/depth: 7.4 mm
- Lamp voltage: 220-240 V
- Voltage type: AC
- Self-adhesive: Yes
- Beam angle: 120 °
- Lowest bending radius: 40 mm
- Model: Strip
- Number of nodes per foot: 37
- Number of poles: 2
- Type of control gear: Not required
- Colour rendering index CRI: 90-100
- Lamp power per foot: 2.74 W
- Conductor cross section: 1 mm²
- Luminous flux per meter: 855 lm
- Colour of light: White
- Lamp type: LED not exchangeable
- Mounting method: Surface mounting
- Protection class according to IEC 61140: II
- Type of wiring: Ending
- Suitable for dimmer: Yes
- Luminaire efficacy: 95 lm/W
- Connection type: Other
- REACH Date: 2025-08-14
- REACH Information obligation: No
