Designlight

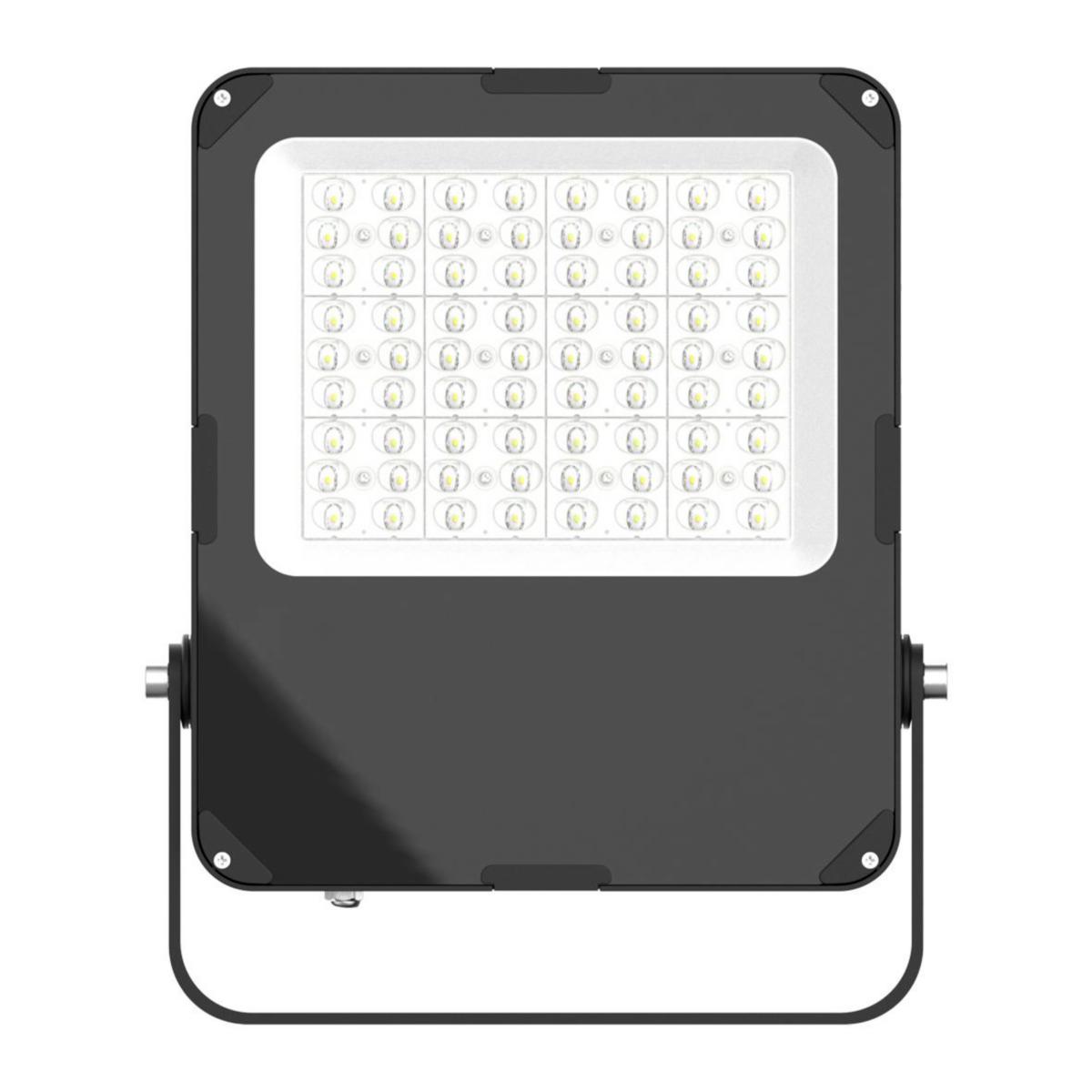

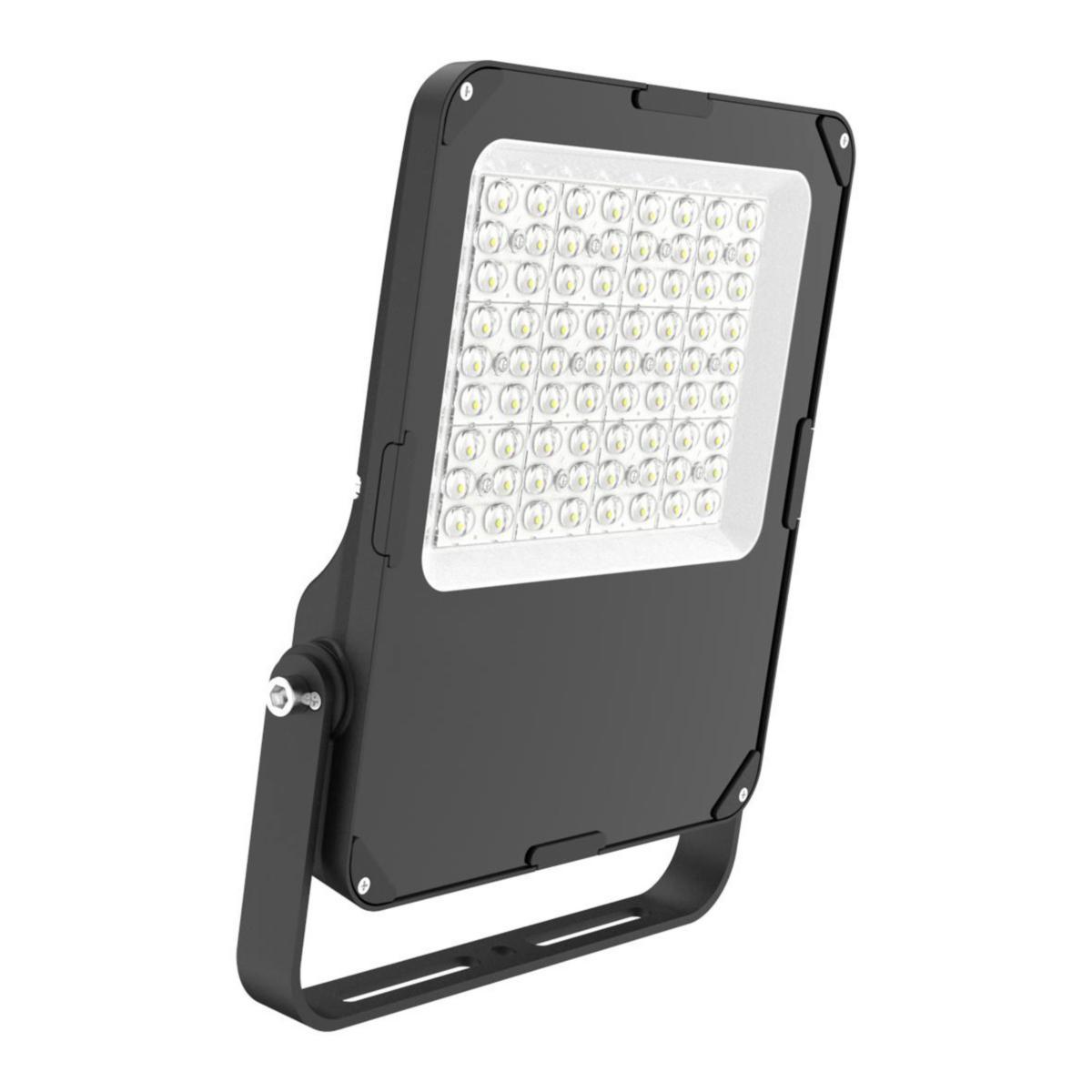

Floodlight Elly II
FLOODL.ELLY II 150W 4K
Article number: Suppl. article no:
7770863
EW-150
to see price and stock
Durable and energy-efficient floodlight with Ceramic LED. On/off. Extra surge protection of 10kV. Asymmetric 130x50° beam angle. IP65. IK08. Easy to install, adjustable bracket incl. connection cable 2 m. Cast aluminum housing. Black Akzo Nobel powder coating. Suitable for general lighting in warehouses and industries. Can be used both indoors and outdoors. Also suitable for illuminating gardens or buildings. Recommended ambient temperature -35 – 50C°. D-marked.
- Article number: 7770863
- Suppl. article no: EW-150
- Ean no: 7340132807904
- Material class QU2110
Technical data
- Packagin Size: 1 PCS/3 PCS
- Max. system power: 150 W
- Rated luminous flux according to IEC 62722-2- 1: 18284 lm
- Colour temperature: 4000 K
- Light distribution: Asymmetric
- Housing colour: Black
- Length: 402 mm
- Width: 337 mm
- Height/depth: 61 mm
- Lamp type: LED exchangeable
- Cover material: Plastic, transparent
- Impact strength: IK08
- Degree of protection (IP), front side: IP65
- Degree of protection (IP), rear side: IP65
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Number of poles: 3
- Surface brushed: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Dimmable: No
- Total harmonic distortion (THD): 20 %
- Power factor: 0.9
- Colour consistency (McAdam ellipse): SDCM3
- Colour rendering index CRI: 80-89
- Adjustability: Swivelling
- Housing material: Aluminium
- Conductor cross section: 1 mm²
- Colour of light: White
- Light outlet: Direct
- Luminaire efficacy: 122 lm/W
- Suitable for built-in mounting: No
- Suitable for clamp-mounting: No
- Suitable for pedestal/floor mounting: Yes
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: Yes
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: Yes
- With light source: Yes
- With light sensor: No
- With movement sensor: No
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Ambient temperature: -35-50 °C
- Beam angle: Variable beam angle
- Voltage type: AC
- Type of wiring: Ending
- Surface protection: Powder coating
- Covering of the luminaire with thermally insulating material possible: No
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 15
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 17
- Exchangeable control gear: Yes
- Operation by Bluetooth: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: E
- Connection type: Free conductor end
- Compatible with Casambi: No
- Containing product according to 2019/2020/EU: Yes
- With presence detector: No
- Emergency power supply system: None
- REACH Date: 2026-01-08
- REACH Information obligation: No
