Siteco

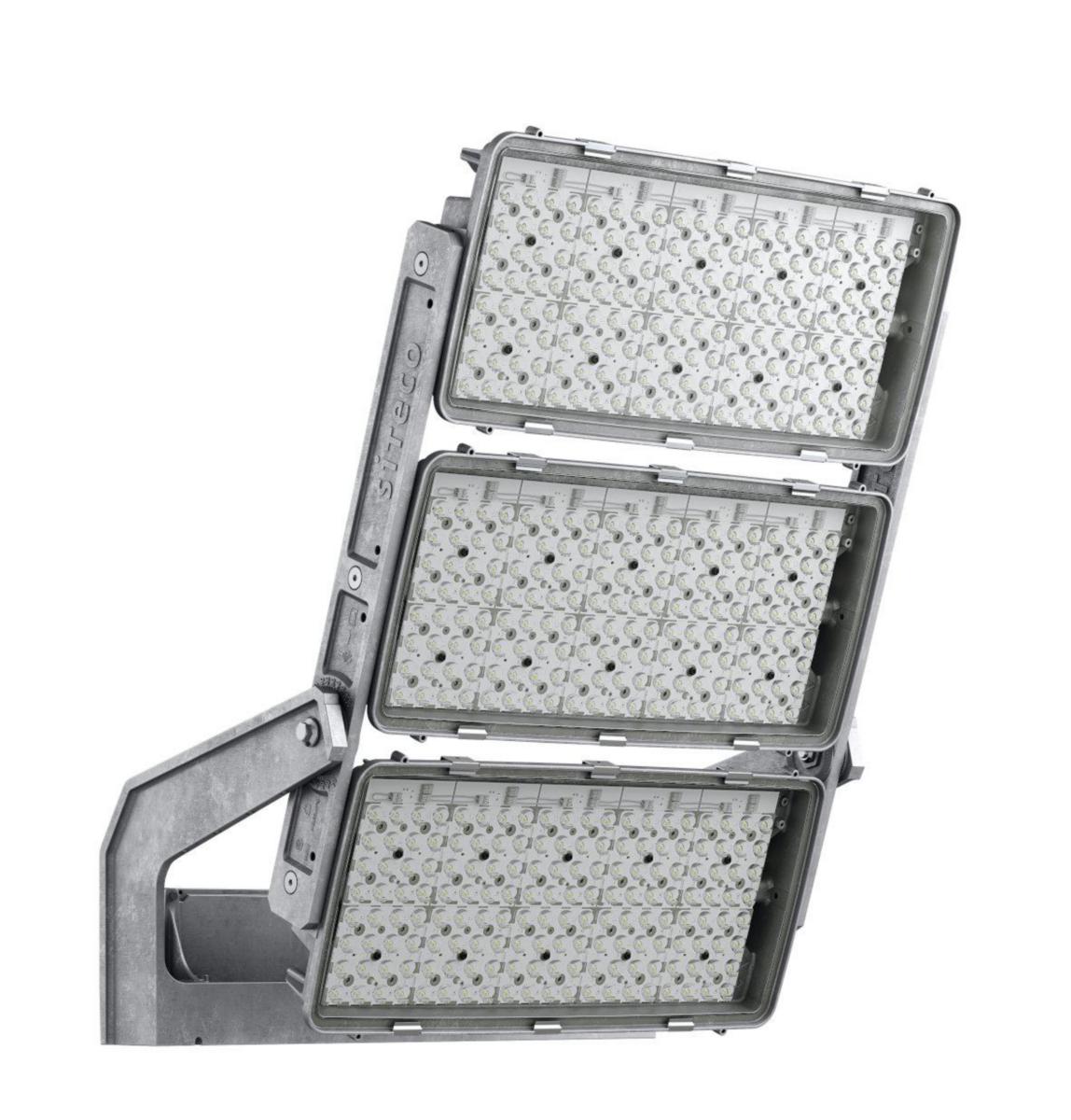

Floodlight FL11
FLOODLIGHT 11MXPRO PL33T
Article number: Suppl. article no:
7770851
5XA779626T01AB
to see price and stock
Powerful and efficient floodlight with 2 or 3 modules for mounting the driver separately in e.g. a driver cabinet. The optics are ideal for football pitches that require 200lux. Glare shields are available as accessories for additional glare reduction.
- Article number: 7770851
- Suppl. article no: 5XA779626T01AB
- Ean no: 4069025143303
- Material class QU2170
Technical data
- Design: Optics PL33T, 3 modules
- Max. system power: 1932 W
- Rated luminous flux according to IEC 62722-2- 1: 24-248920 lm
- Colour temperature: 4000 K
- Dimming DALI-2: Yes
- Light distribution: Asymmetric
- Housing colour: Aluminium
- Length: 1003 mm
- Width: 651 mm
- Height/depth: 338 mm
- Nominal voltage: 220-240 V
- Lamp type: LED exchangeable
- Material cover: Glass transparent
- Impact strength: IK07
- Degree of protection (IP), front side: IP66
- With control gear: Yes
- Suitable for workplace according to EN 12464-1: No
- Surface brushed: No
- Dimmable: Yes
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Colour rendering index CRI: 70-79
- Adjustability: Swivelling
- Housing material: Aluminium
- Conductor cross section: 2.5 mm²
- Colour of light: White
- Light distributor: Diffuser lens/optic/panel
- Light outlet: Direct
- Luminaire efficacy: 129 lm/W
- Suitable for built-in mounting: No
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: Yes
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: Yes
- With light source: Yes
- With light sensor: No
- With movement sensor: No
- Rated ambient temperature according to IEC 62722-2-1: -40-55 °C
- Reflector: None
- Protection class according to IEC 61140: I
- Voltage type: AC
- Surface protection: Untreated
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 90 %
- Failure rate at median useful life of 100,000 h at 25 °C ambient (tq): 5 %
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 1
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 1
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: D
- Containing product according to 2019/2020/EU: No
- With presence detector: No
- REACH Date: 2025-08-01
- REACH Information obligation: No
