Westal

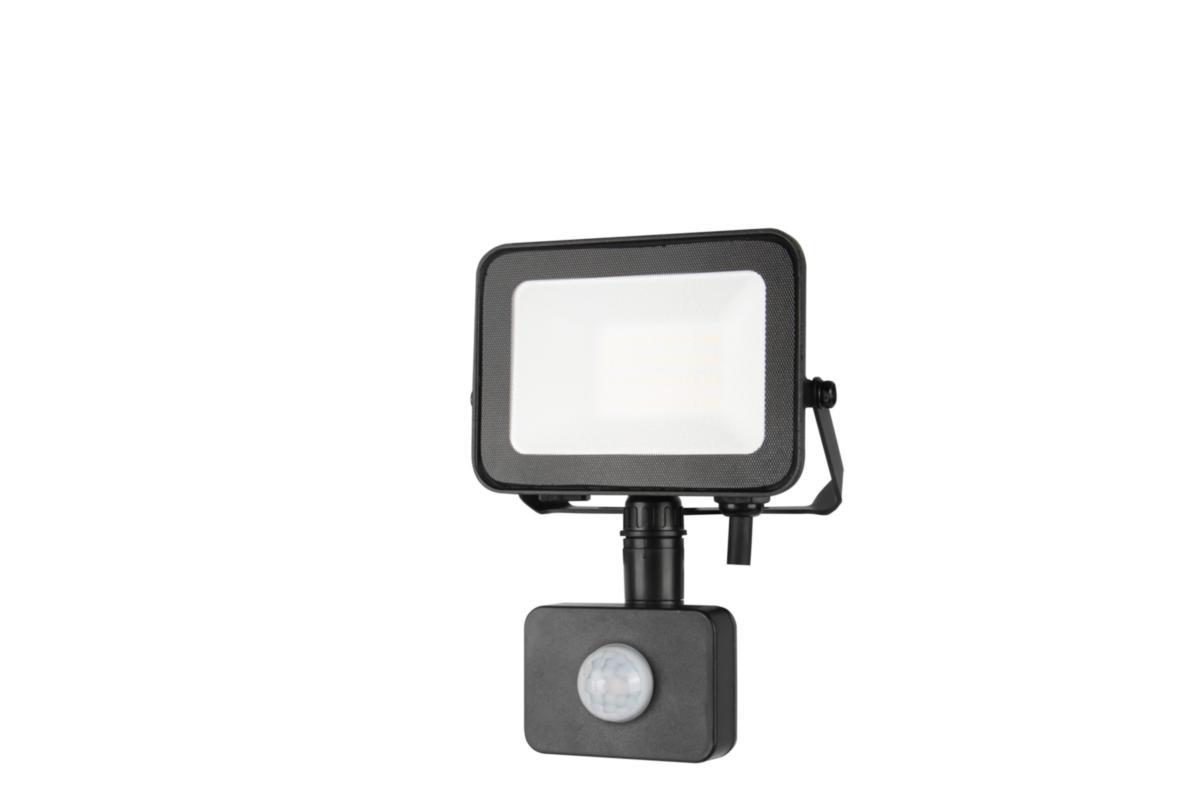

Floodlight Zatt mini II Pir
Flood Zatt Mini II 10W PIR
Article number: Suppl. article no:
7770594
25-3-32
to see price and stock
Spotlight with an aluminum body and clear tempered glass glare shield. Equipped with an LED unit with built-in driver. The PIR sensor makes it possible to set the sensitivity and time. Also available in an on/off model. The spotlight is supplied with a rubber cable for easy installation. Suitable for use in both private and public environments. Time: 10s-10min, ambient light: 2000lux
- Article number: 7770594
- Suppl. article no: 25-3-32
- Ean no: 7393047253328
- Material class QU2130
Technical data
- Max. system power: 10 W
- Rated luminous flux according to IEC 62722-2- 1: 1000 lm
- Colour temperature: 4000 K
- Light distribution: Symmetric
- Housing colour: Black
- Length: 110 mm
- Width: 80 mm
- Height/depth: 30 mm
- Nominal voltage: 220-240 V
- Lamp type: LED not exchangeable
- Material cover: Plastic, structured
- Impact strength: IK07
- Type of control gear: Not required
- Number of poles: 3
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Power factor: 0.9
- Colour consistency (McAdam ellipse): SDCM3
- Colour rendering index CRI: 80-89
- Adjustability: Swivelling
- Housing material: Aluminium
- Conductor cross section: 1 mm²
- Colour of light: White
- Light outlet: Direct
- Suitable for built-in mounting: No
- Suitable for clamp-mounting: Yes
- Suitable for pedestal/floor mounting: Yes
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: Yes
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: Yes
- With light source: Yes
- With light sensor: Yes
- With movement sensor: Yes
- Rated ambient temperature according to IEC 62722-2-1: -25-40 °C
- Reflector: Other
- Protection class according to IEC 61140: I
- Beam angle: > 80° - Extreme wide beam
- Voltage type: AC
- Type of wiring: Ending
- Surface protection: Powder coating
- Connection type: Other
- REACH Date: 2025-04-24
- REACH Information obligation: No
