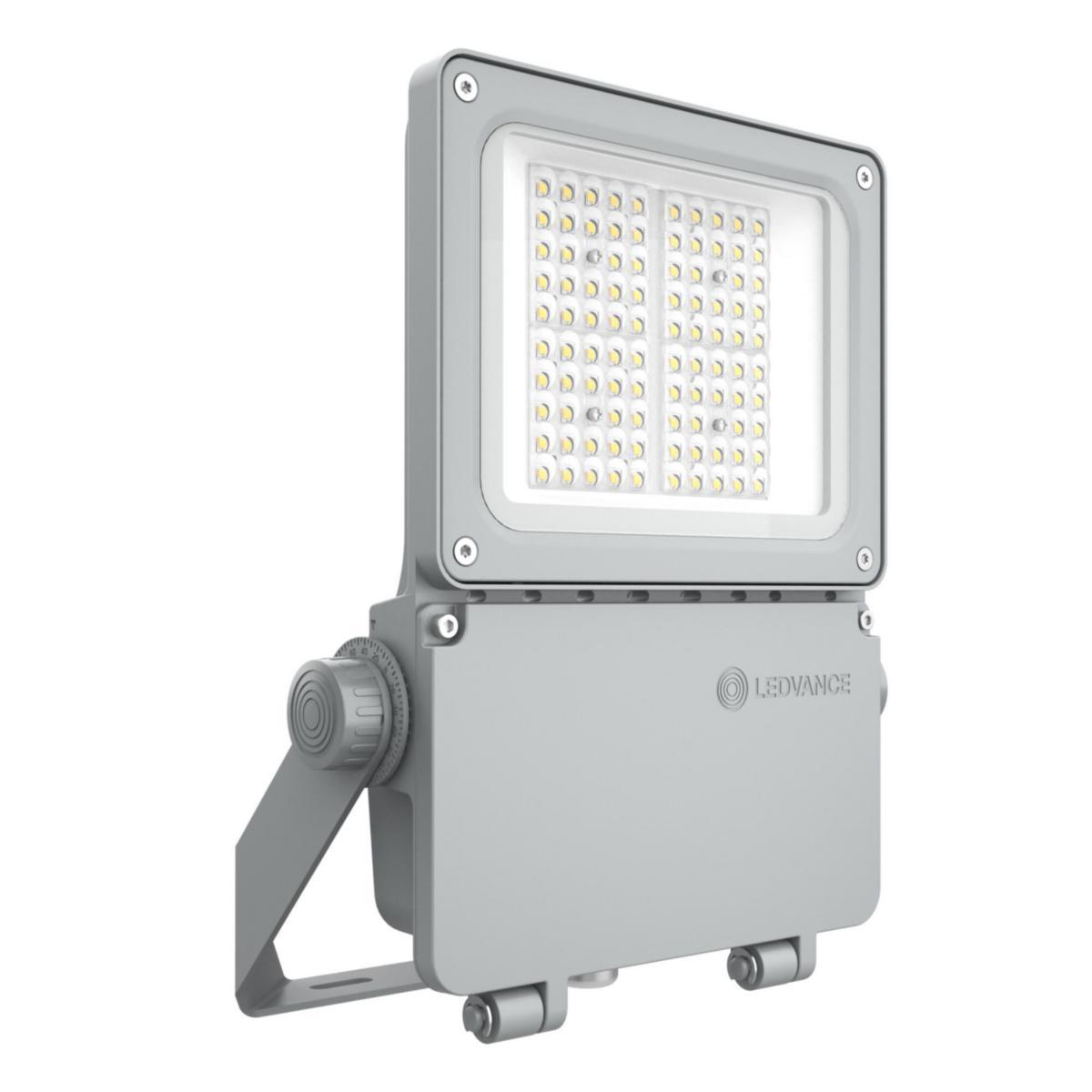

Floodlight Flex 55x120° Asym - FL FLEX 40W 840 55X120°
Ledvance

Floodlight Flex 55x120° Asym

FL FLEX 40W 840 55X120°
Article number:
7770399
Suppl. article no:
4099854373213





 to see price and stock
Denna produkt innehåller ett eller flera ämnen på kandidatförteckningen.
LEDVANCE FLOODLIGHT FLEX ASYMMETRIC 55X120 are robust and durable floodlights with a wide beam angle of 55°x120°, asymmetric light distribution for various applications. Available as on/off or with DALI D4i for lighting control and smart city applications. High efficiency up to 161 lm/W. The on/off version has a multi-lumen function and can be easily adjusted between four different effects. Available in color temperatures 3000K and 4000K as well as a version with 2200K. Corrosion resistance C5 based on 1500 hours of salt spray test. High surge protection up to 10 kV (L/N-PE), 6 kV (L-N). Long service life L70/B50 up to 120,000 hours (at 25 °C). Luminous flux up to 70,000 lm. Withstands ambient temperatures of -30° to 50°C. Three cable entries for flexible use and easy connection between luminaires. Daisy chain possible. Integrated ventilation to prevent condensation inside the luminaire. Easy angle adjustment by locking every 2.5°. Easy luminaire upgrade thanks to replaceable LED driver. Supplied with jumper.
  • Article number:
    7770399
  • Suppl. article no:
    4099854373213
  • Ean no:
    4099854373213
  • Material class
    QU2180
Technical data
  • Max. system power: 40 W
  • Rated luminous flux according to IEC 62722-2- 1: 3500-6200 lm
  • Colour temperature: 4000 K
  • Light distribution: Asymmetric
  • Housing colour: Aluminium
  • Length: 406 mm
  • Width: 277 mm
  • Height/depth: 67 mm
  • Nominal voltage: 220-240 V
  • Lamp type: LED not exchangeable
  • Material cover: Glass transparent
  • Impact strength: IK08
  • Degree of protection (IP), front side: IP66
  • With control gear: Yes
  • Type of control gear: Electronic ballast
  • Number of poles: 3
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
  • Dimmable: No
  • Power factor: 0.9
  • Photobiological safety according to EN 62471: RG1
  • Colour consistency (McAdam ellipse): SDCM5
  • Colour rendering index CRI: 80-89
  • Filament test according to IEC 60695-2-11: 850 °C - 30 s
  • Adjustability: Swivelling
  • Housing material: Aluminium
  • Conductor cross section: 1.5 mm²
  • Colour of light: White
  • Light distributor: Focal lens
  • Light outlet: Direct
  • Luminaire efficacy: 155-159 lm/W
  • Suitable for pedestal/floor mounting: Yes
  • Suitable for wall mounting: Yes
  • Suitable for surface mounting: Yes
  • With light source: Yes
  • Rated lifetime L70/B50 at 25 °C: 120000 h
  • Rated ambient temperature according to IEC 62722-2-1: -30-50 °C
  • Protection class according to IEC 61140: I
  • Voltage type: AC
  • Type of wiring: Suitable for loop-through wiring
  • Surface protection: Powder coating
  • Luminous flux adjustable: Positions
  • Max. number of luminaires per miniature circuit breaker B16 (MCB): 12
  • Max. number of luminaires per miniature circuit breaker C16 (MCB): 20
  • IFTTT support available: Yes
  • Exchangeable control gear: Yes
  • Energy efficiency class of the light source according to EU regulation 2019/2015: C
  • Nominal current: 184 mA
  • Connection type: Push-in clamp
  • Containing product according to 2019/2020/EU: Yes
  • REACH Date: 2024-06-01
  • REACH contains candidate substances: Bly
  • REACH Information obligation: Yes
