Ledvance

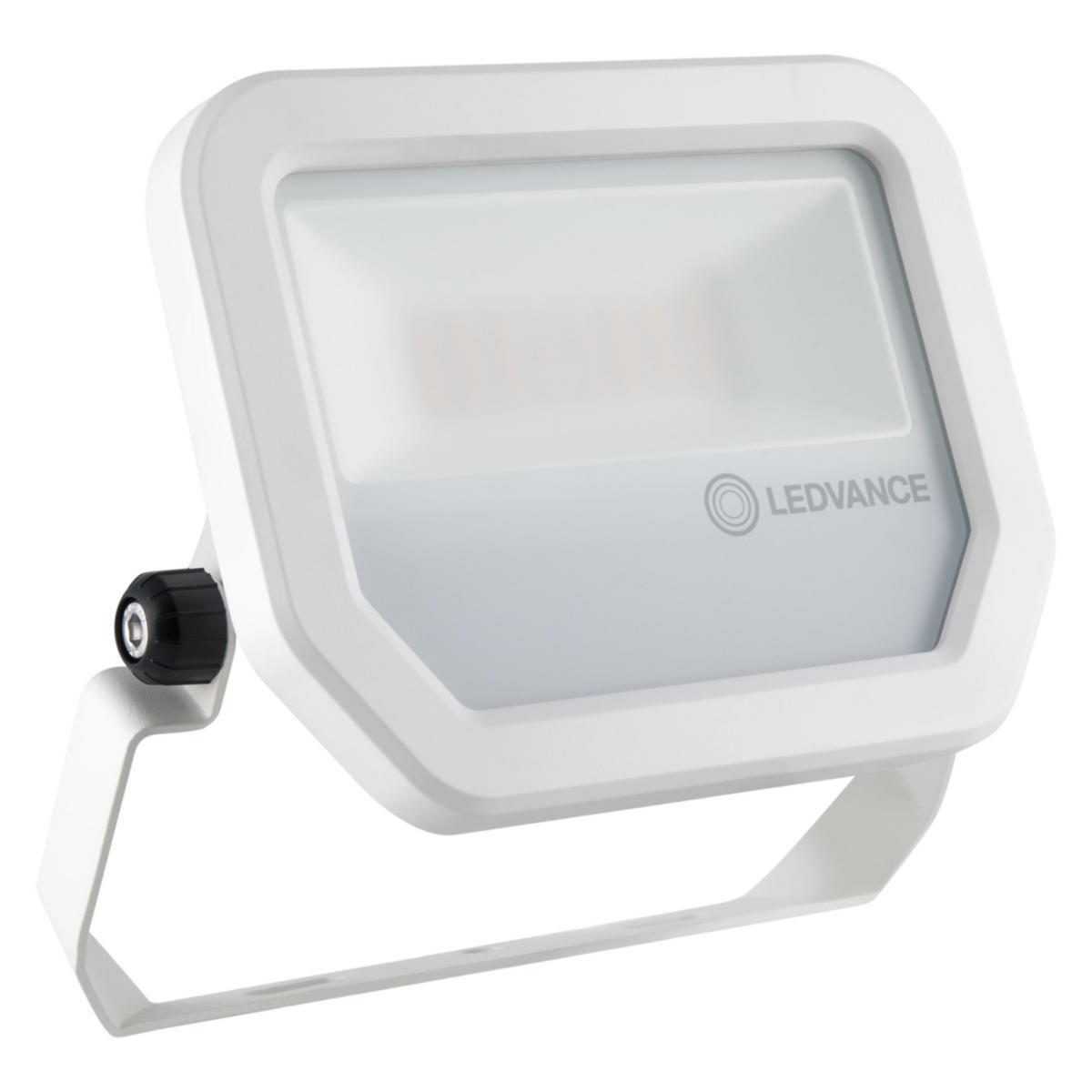

Floodight PFM, Ledvance
FLOODLIGHT PFM 20W/4000K WT 4058075421035
Article number: Suppl. article no:
7766592
4058075421035
to see price and stock
LEDVANCE FLOODLIGHT PERFORMANCE with symmetrical light scattering replaces traditional floodlight luminaires with halogen light sources. High efficiency of up to 125 lm / W. Matt diffuser in tempered glass for a uniform light image and low glare. Mounting bracket with 30 ° angle and wide rotation range. Robust and sustainable design for applications such as building facades, residential areas, gardens, car parks and tunnels. Available in 9 different effects, 3 color temperatures and with black or white luminaire housing. 5 year warranty.
- Article number: 7766592
- Suppl. article no: 4058075421035
- Ean no: 4058075421035
- Material class QU218A
- This is an alternative to item 7770305
Technical data
- Packagin Size: 1 ST/12 ST/12 ST
- Max. system power: 20 W
- Rated luminous flux according to IEC 62722-2- 1: 2400 lm
- Colour temperature: 4000 K
- Light distribution: Symmetric
- Luminous flux: 2400 lm
- Housing colour: White
- Length: 144 mm
- Width: 156 mm
- Height/depth: 42 mm
- Nominal voltage: 100-277 V
- Lamp type: LED not exchangeable
- Material cover: Glass opal
- Suitable for lamp power: 20 W
- Impact strength: IK07
- Degree of protection (IP): IP65
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Surface brushed: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Dimmable: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming phase cut-off (trailing edge): No
- Dimming phase cut-on (leading edge): No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DALI: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Total harmonic distortion (THD): 19 %
- Power factor: 0.9
- Photobiological safety according to EN 62471: RG1
- Colour consistency (McAdam ellipse): SDCM5
- Colour rendering index CRI: 80-89
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Adjustability: Swivelling
- Housing material: Aluminium
- Lamp holder: None
- Colour of light: White
- Light distributor: Reflector
- Light outlet: Direct
- Luminaire efficacy: 120 lm/W
- Suitable for built-in mounting: No
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: Yes
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: No
- With light source: Yes
- With light sensor: No
- With movement sensor: No
- Rated lifetime L70/B50 at 25 °C: 70000 h
- Rated ambient temperature according to IEC 62722-2-1: -30-50 °C
- Reflector: Other
- Protection class according to IEC 61140: I
- Beam angle: Open beam/diffuse
- Voltage type: AC
- Dimming Touch and Dim: No
- Type of wiring: Ending
- Surface protection: Powder coating
- Covering of the luminaire with thermally insulating material possible: No
- Emergency power supply integrated: No
- Connection type: Other
- LED nominal current at constant current: 98 mA
- Rated life time L80/B10 at 25 °C: 55000 h
- REACH Date: 2022-06-01
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
