AhlsellProductsElectricLighting 70-8377 Exterior luminairesCeiling and wall-mounted luminairesDownlight
SG Armaturen

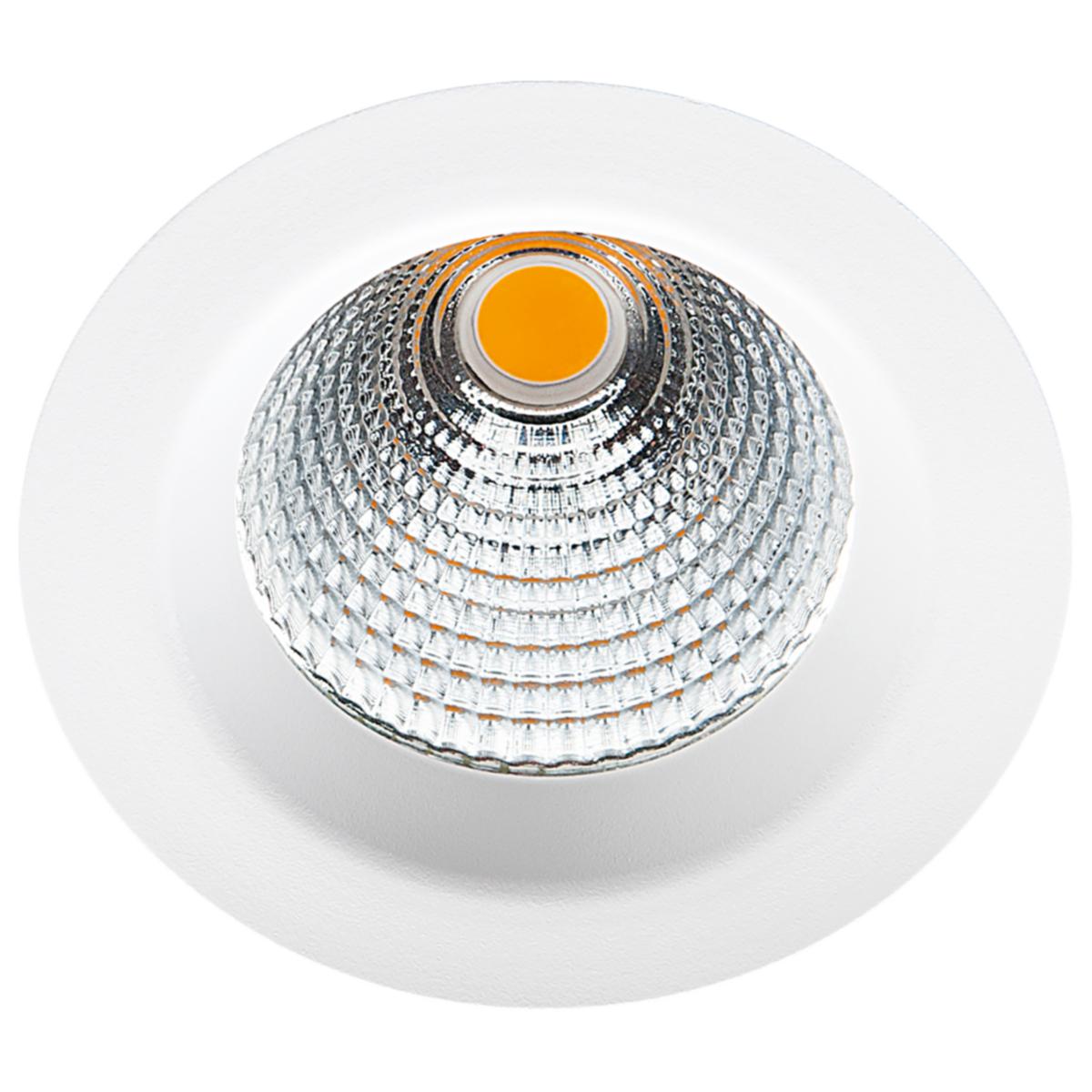

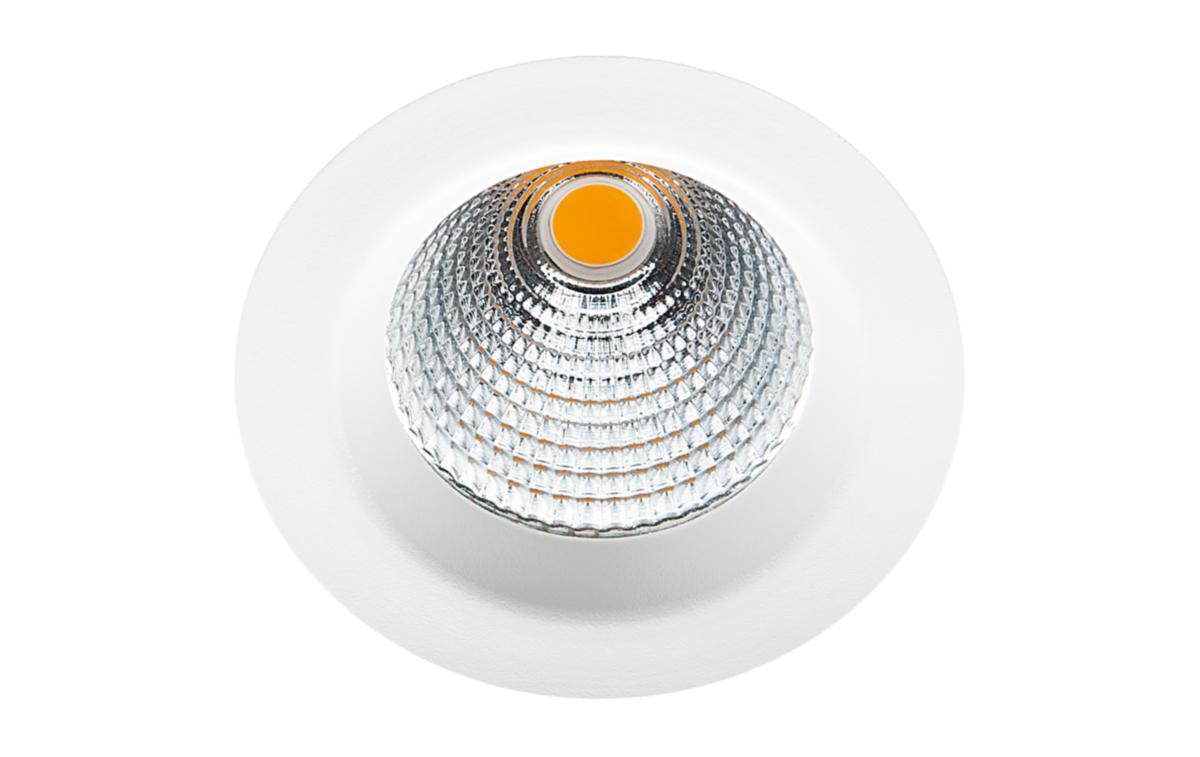

Downlight Jupiter Pro Outdoor
JUPITER PRO WHITE 25W LED 40D
Article number: Suppl. article no:
7463878
940340
to see price and stock
Recessed downlight with integrated LED 230V. Supplied with driver.
- Article number: 7463878
- Suppl. article no: 940340
- Ean no: 7021989403401
- Material class QT442A
Technical data
- Packagin Size: 1 ST/8 ST/192 ST/192 ST
- Design: 40°
- Max. system power: 22 W
- Rated luminous flux according to IEC 62722-2- 1: 2230 lm
- Colour temperature: 3000 K
- Housing colour: White
- Surface brushed: No
- Beam angle: 21-40° - Medium beam
- Dimming DALI: No
- Dimming DALI-2: No
- Outer diameter: 114 mm
- Built-in diameter: 83 mm
- Built-in width: 114 mm
- Built-in height: 110 mm
- Built-in length: 110 mm
- Height/depth: 110 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Reflector: High-gloss
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Width: 114 mm
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Power factor: 0.96
- Photobiological safety according to EN 62471: Other
- Dimming phase cut-on (leading edge): No
- Filament test according to IEC 60695-2-11: None
- Material cover: Glass transparent
- Degree of protection (IP): IP65
- Dimmable: Yes
- Degree of protection (IP), front side: IP65
- Degree of protection (IP), rear side: IP20
- Lamp holder: None
- Conductor cross section: 1 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Other
- Light outlet: Direct
- Luminaire efficacy: 101 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for lamp power: 22 W
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- Length: 110 mm
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 230 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 0 h
- Rated life time L80/B10 at 25 °C: 0 h
- Suitable for ceiling mounting: Yes
- Degree of protection (NEMA): Other
- Impact strength: IK00
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-2.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM2
- Covering of the luminaire with thermally insulating material possible: No
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 90 %
- Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq): 0 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
- Failure rate at median useful life of 100,000 h at 25 °C ambient (tq): 10 %
- Failure rate at median useful life of 35,000 h at 25 °C ambient (tq): 0 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 10 %
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: Positions
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 30
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 51
- IFTTT support available: No
- Unified Glare Ratio (UGR): 22
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: E
- Energy efficiency class: A+
- Nominal current: 500-600 mA
- Connection type: Other
- LED nominal current at constant current: 500-700 mA
- GWP-tot (A1-A3): 15,9009 kgCO2e/ST
- REACH Date: 2022-08-26
- REACH contains candidate substances: Bly
- Energy efficiency class of the provided exchangeable built-in lamp: A+
- REACH Information obligation: Yes
