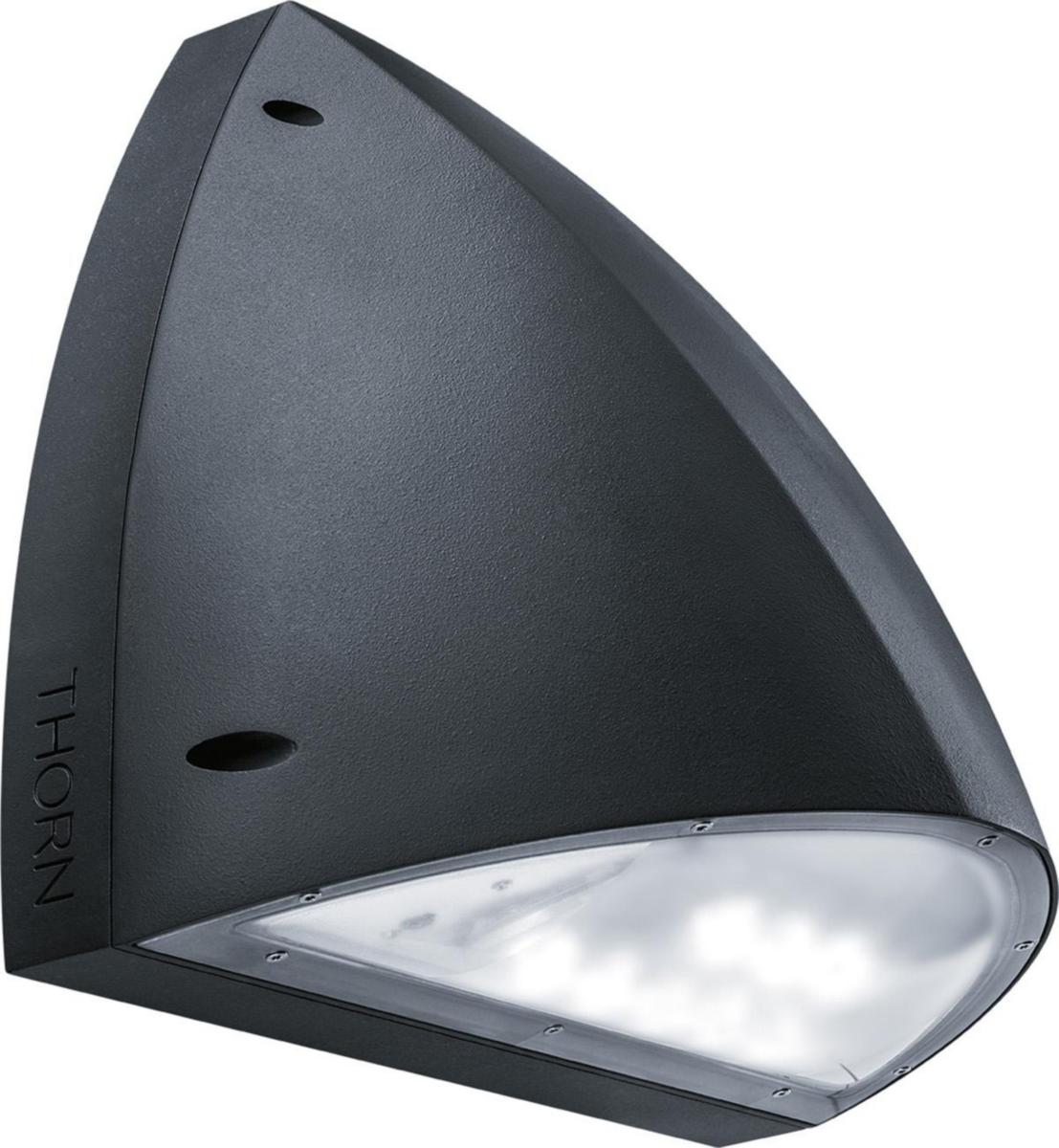

Wall luminaire Piazza II, Thorn
PIAZZA II 2700-840 HF ANT PIAZZA II LED VÄGG
Article number: Suppl. article no:
7716018
96666261
to see price and stock
A robust LED wall luminaire. Electronic actuator without light control. Back plate: die-cast Aluminum, painted anthracite. Frame: anthracite polycarbonate (PC). Ø 20 mm cable entry via holes in the back or side, BESA compliant. IP65, IK10, 4000K.
- Article number: 7716018
- Suppl. article no: 96666261
- Ean no: 5037319387398
- Material class QT900A
Technical data
- Max. system power: 25 W
- Rated luminous flux according to IEC 62722-2- 1: 2910 lm
- Colour temperature: 4000 K
- Housing colour: Anthracite
- Dimming DALI: No
- Light distribution: Asymmetric
- Lamp type: LED not exchangeable
- Suitable for number of light sources: 1
- Lamp holder: Other
- Degree of protection (IP): IP65
- Length: 383 mm
- Width: 195 mm
- Height/depth: 306 mm
- Type of control gear: LED operating device current-controlled
- Material cover: Plastic, transparent
- Housing material: Plastic
- With control gear: Yes
- With light source: Yes
- Protection class according to IEC 61140: I
- Nominal voltage: 220-240 V
- Voltage type: AC
- Colour rendering index CRI: 80-89
- Light outlet: Direct
- Suitable for workplace according to EN 12464-1: No
- Dimming phase cut-off (trailing edge): No
- Dimming with push-button: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming phase cut-on (leading edge): No
- Dimmable: No
- Colour of light: White
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- Rated lifetime L70/B50 at 25 °C: 60000 h
- Suitable for ceiling mounting: No
- Type of grid: None
- Dimming Touch and Dim: No
- Suitable for wall mounting: Yes
- REACH Date: 2021-10-29
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- Dimming depending on control gear: No
- Dimming GPRS: No
