AhlsellProductsElectricLighting 70-8377 Exterior luminairesCeiling and wall-mounted luminairesCeiling and wall luminaires
Ledvance

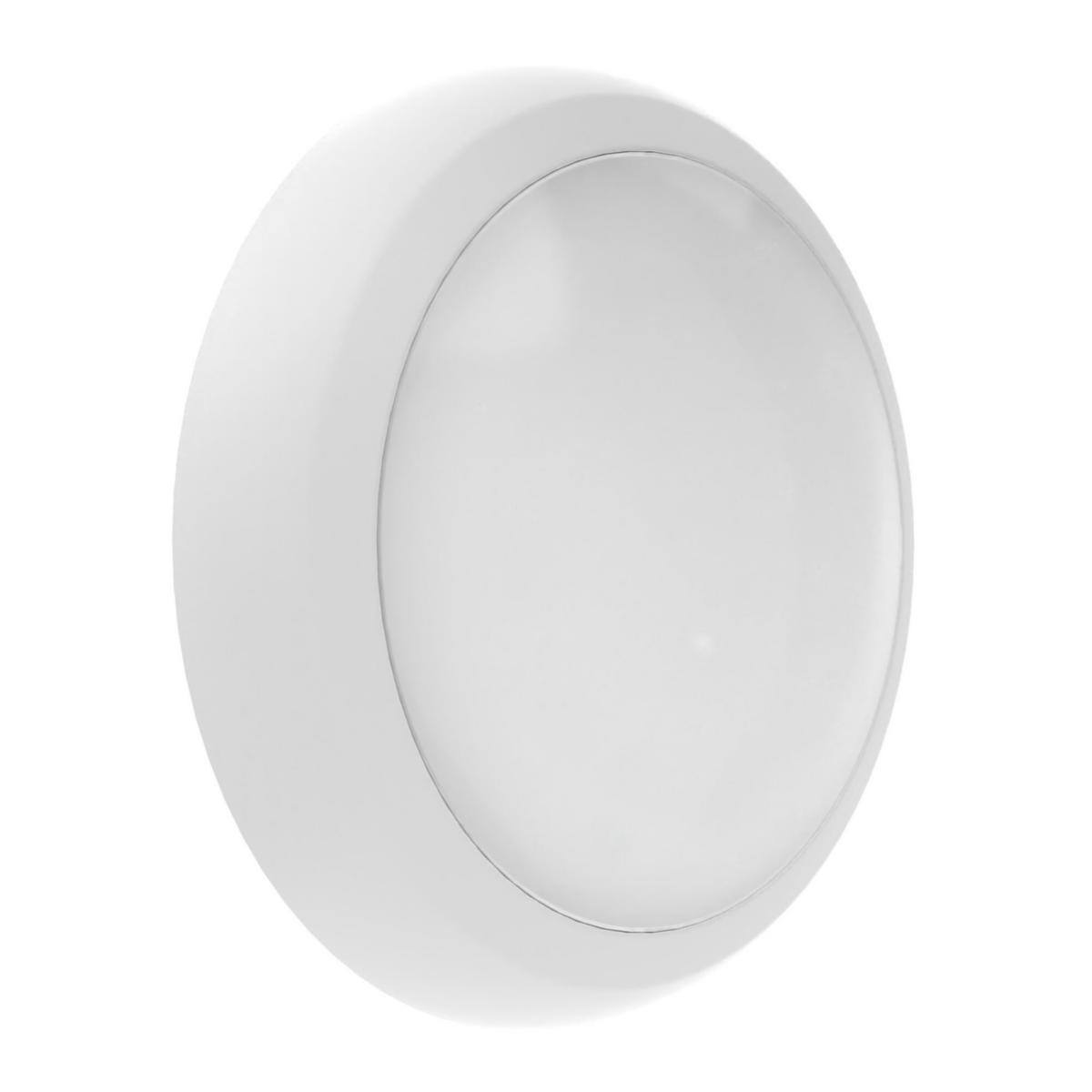

Ceiling and wall luminaire Bulkhead Combo
BULKHEAD COMBO 325 16W WHITE
Article number: Suppl. article no:
7706777
4099854480997
to see price and stock
LEDVANCE BULKEAD COMBO is a versatile wall and ceiling luminaire with adjustable color temperature and lumens. Choose between 3000, 4000K and 5700K and lumens in three steps. The product can be easily upgraded and converted to a sensor or emergency luminaire or a combination of these. High efficiency up to 125 lm/W. Lifespan up to 50,000 hours (L70). IP65 and IK10 make it suitable for dusty and humid environments as well as public areas. All necessary mounting accessories are included. Ring with eyelet is available as a separate accessory.
- Article number: 7706777
- Suppl. article no: 4099854480997
- Ean no: 4099854480997
- Material class QT9170
Technical data
- Packagin Size: 1 PCS/10 PCS
- Max. system power: 16 W
- Rated luminous flux according to IEC 62722-2- 1: 1080-1920 lm
- Colour temperature: 3000-5700 K
- Housing colour: White
- With presence detector: No
- With movement sensor: No
- With light sensor: No
- Light distribution: Symmetric
- Lamp type: LED not exchangeable
- Beam angle: > 80° - Extreme wide beam
- Degree of protection (IP), front side: IP65
- Height/depth: 90 mm
- Outer diameter: 325 mm
- Type of control gear: Electronic ballast
- Material cover: Plastic, opal
- Housing material: Plastic
- Surface protection housing: Untreated
- With control gear: Yes
- With light source: Yes
- Protection class according to IEC 61140: II
- Impact strength: IK10
- Nominal voltage: 220-240 V
- Voltage type: AC
- Colour rendering index CRI: 80-89
- Light outlet: Direct
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 4
- Power factor: 0.7
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Dimmable: No
- Colour of light: White
- Light distributor: Diffuser lens/optic/panel
- Luminaire efficacy: 120-125 lm/W
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- With air slots: No
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Suitable for ceiling mounting: Yes
- Type of wiring: Suitable for loop-through wiring
- Covering of the luminaire with thermally insulating material possible: No
- Operation by Bluetooth: No
- Photobiological safety according to EN 62471: RG0
- Colour consistency (McAdam ellipse): SDCM6
- Beam angle adjustable: No
- Colour of light adjustable: Positions
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: Positions
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 40
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 40
- IFTTT support available: Yes
- Exchangeable control gear: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: D
- Compatible with Casambi: No
- Suitable for wall mounting: Yes
- Nominal current: 55-90 mA
- Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): Yes
- Connection type: Push-in clamp
- Ball-proof according to DIN 18032-3: No
- Containing product according to 2019/2020/EU: Yes
- Suitable for clamp-mounting: No
- Max. number of luminaires per miniature circuit breaker C10 (MCB): 24
- With switch: No
- REACH Date: 2024-06-01
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
