AhlsellProductsElectricLighting 70-8377 Exterior luminairesCeiling and wall-mounted luminairesCeiling and wall luminaires
a-collection
Façade luminaires aWall
WALL LUM 9-18W 840 ANTHRACITE
Article number:
7706294
to see price and stock

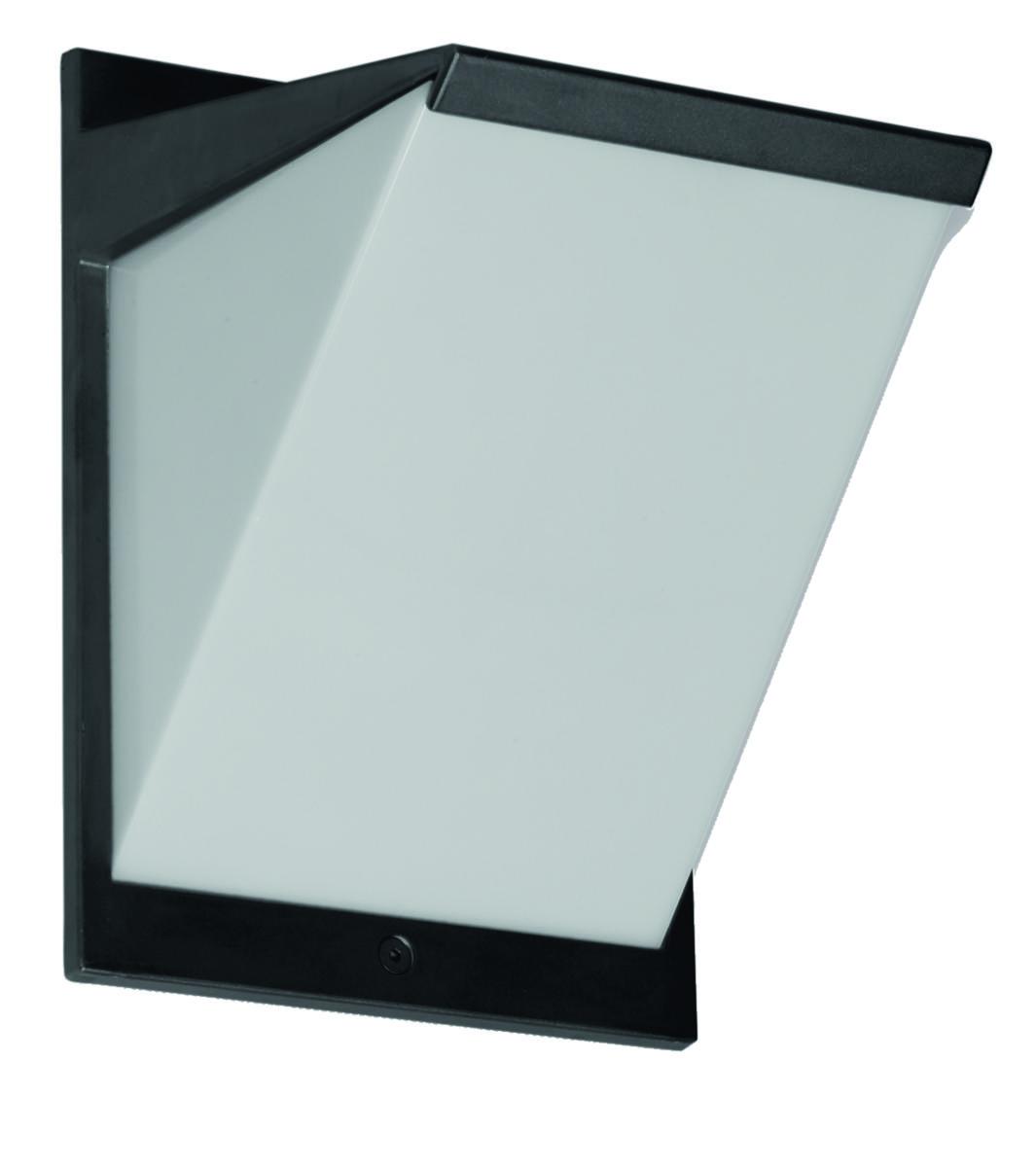

Elegant luminaire intended for general facade lighting and house number plates. Anthracite-colored frame in cast aluminum with dome in polycarbonate. Can be provided with a disc for house number or other information. The fixture is supplied preset at 9W (790lm) but can easily be changed to 13W (1080lm) or 18W (1450lm) for more light. Intended for mounting on a wall with at least a 25 mm air gap to the eaves or other overhang. Recommended installation height is 1.8-4 meters. Cable entry from behind or from above. Double sealing nipples for each mounting option for max. 14.5 mm cable diameter. Three-pole quick terminal block with double connections for max. 2.5 mm².
- Article number: 7706294
- Ean no: 6438100453183
- Material class QT6802
Technical data
- Packagin Size: 1 PCS/40 PCS
- Max. system power: 18 W
- Rated luminous flux according to IEC 62722-2- 1: 1450 lm
- Colour temperature: 3000 K
- Housing colour: Anthracite
- Dimming DALI: No
- Dimming DALI-2: No
- With movement sensor: No
- With light sensor: No
- Light distribution: Symmetric
- Lamp type: LED exchangeable
- Degree of protection (IP): IP44
- Length: 302 mm
- Width: 222 mm
- Height/depth: 236 mm
- Type of control gear: LED operating device current-controlled
- Material cover: Plastic, opal
- Housing material: Aluminium
- Surface protection housing: Lacquered
- With control gear: Yes
- With light source: Yes
- Protection class according to IEC 61140: I
- Impact strength: IK10
- Nominal voltage: 220-240 V
- Voltage type: AC
- Colour rendering index CRI: 80-89
- Light outlet: Direct
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimming phase cut-off (trailing edge): No
- Dimming with push-button: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming phase cut-on (leading edge): No
- Dimmable: No
- Conductor cross section: 2.5 mm²
- Colour of light: White
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for suspended mounting: Yes
- Suitable for surface mounting: Yes
- With air slots: No
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Suitable for ceiling mounting: No
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Operation by Bluetooth: No
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Luminous flux adjustable: Positions
- IFTTT support available: No
- Exchangeable control gear: Yes
- Compatible with Casambi: No
- Suitable for wall mounting: Yes
- Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): Yes
- Connection type: Push-in clamp
- REACH Date: 2023-06-02
- REACH Information obligation: No
