Hide-a-lite

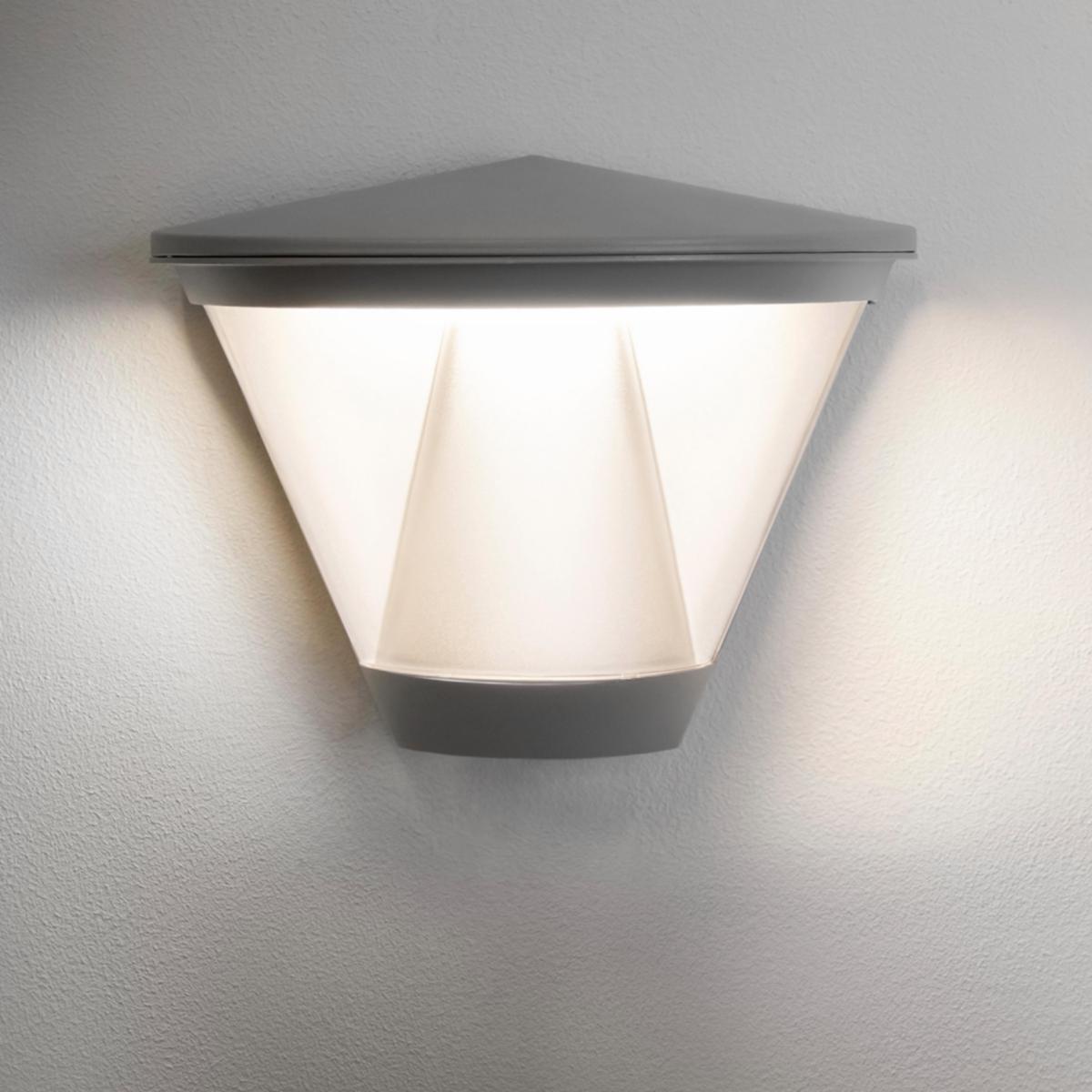

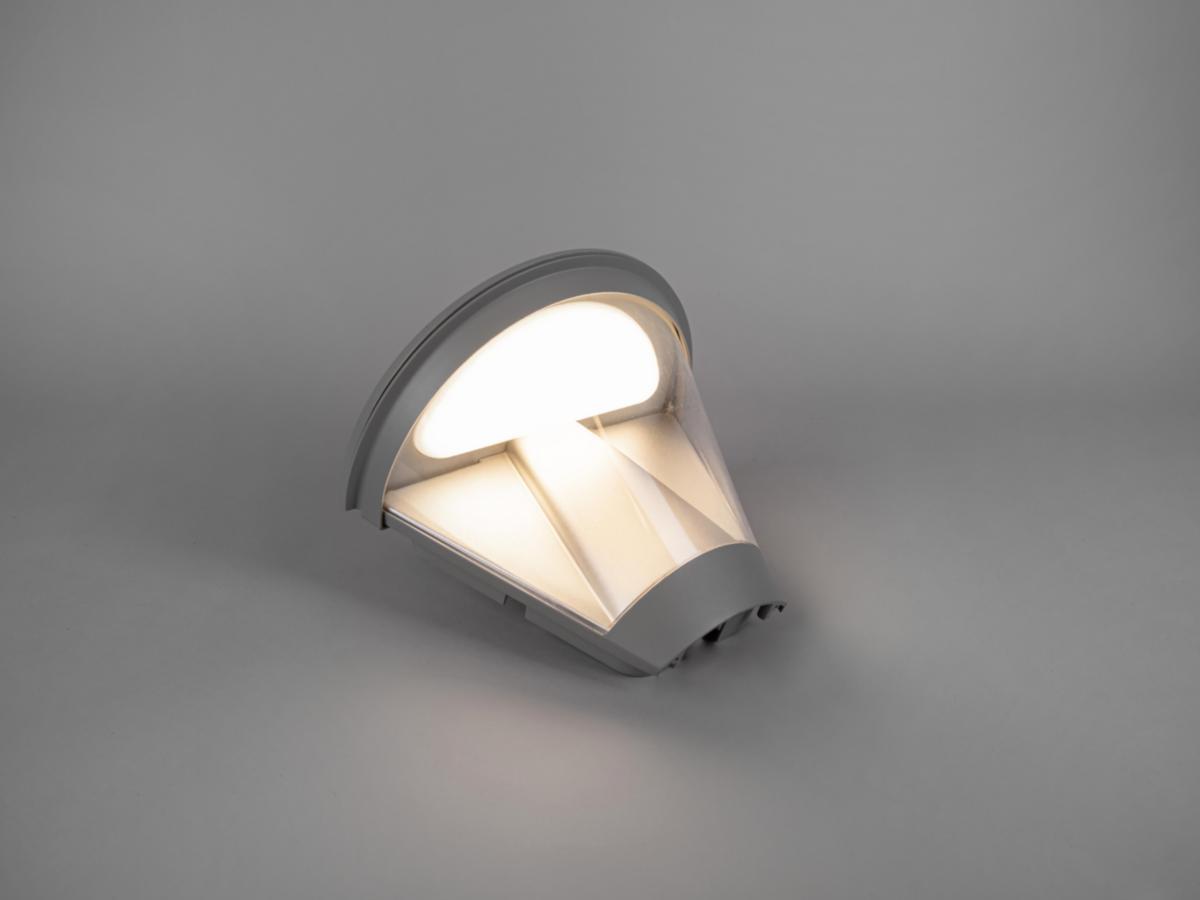

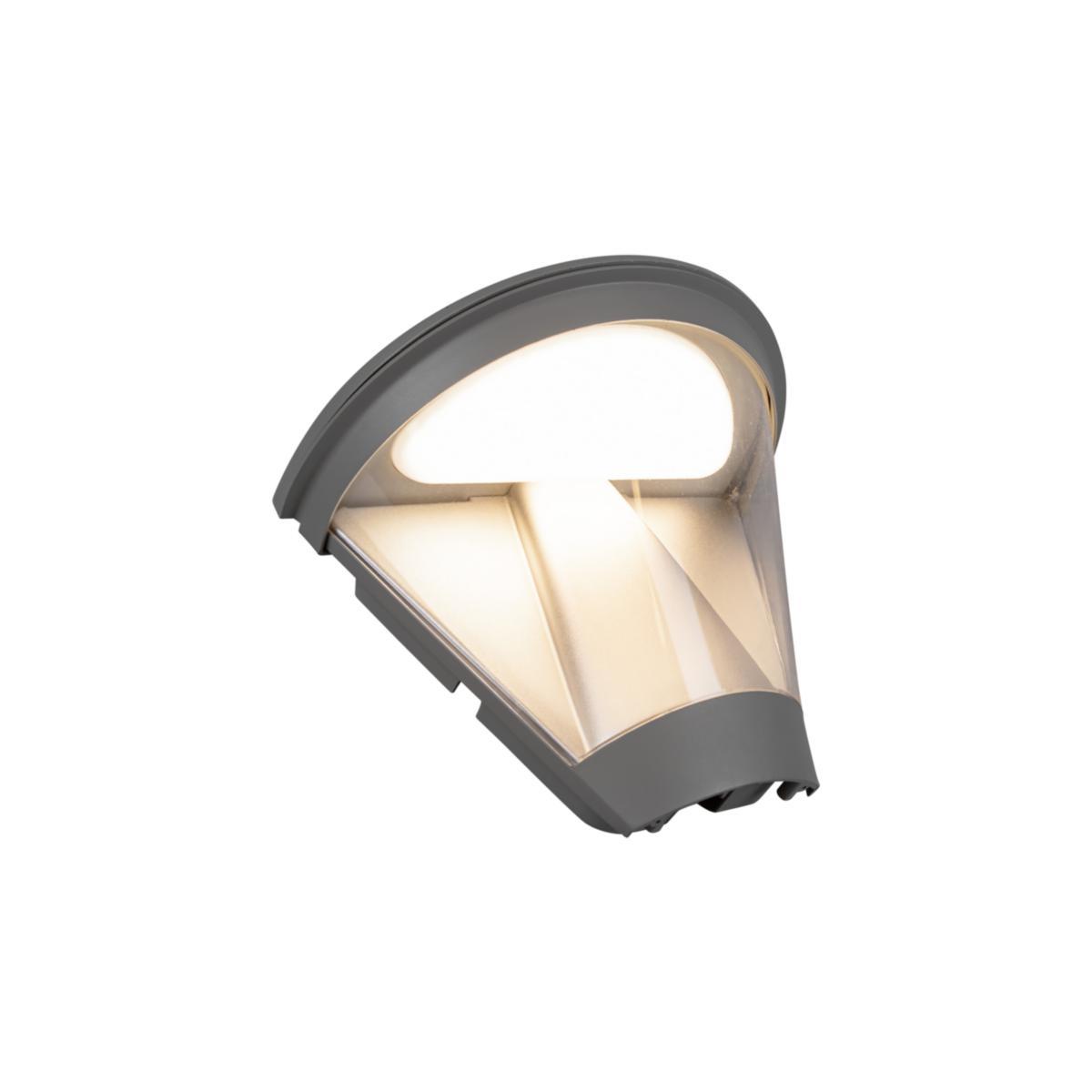

Wall luminaire Pave Wall
Pave Wall Grey
Article number: Suppl. article no:
7706022
4511
to see price and stock
Easily installed wall luminaire in the Pave family with a stylish design language, available with both clear and opal glass. Wide light pattern for a nicely lit facade. Plenty of space for easy assembly. Choose the look and increase the dimming of your luminaire in combination with Top, Deco II and Deco IV. Number plates are available as accessories for placement at entrances (numbers 3x 0-9 and letters 3x A-J). Replaceable LED and driver. Selectable color temperature and adjustable light flow via DIP switch. The back has double feed-throughs for easy forwarding.
- Article number: 7706022
- Suppl. article no: 4511
- Ean no: 7392971147284
- Material class QT9020
Technical data
- Packagin Size: 1 PCS/4 PCS/48 PCS
- Max. system power: 18 W
- Rated luminous flux according to IEC 62722-2- 1: 1940 lm
- Colour temperature: 3000-4000 K
- Housing colour: Grey
- With movement sensor: No
- With light sensor: No
- Light distribution: Symmetric
- Lamp type: LED exchangeable
- Suitable for number of light sources: 1
- Beam angle: > 80° - Extreme wide beam
- Degree of protection (IP): IP65
- Length: 180 mm
- Width: 301 mm
- Height/depth: 240 mm
- Type of control gear: LED operating device current-controlled
- Material cover: Plastic, transparent
- Housing material: Aluminium
- Surface protection housing: Powder coating
- With control gear: Yes
- With light source: Yes
- Protection class according to IEC 61140: I
- Impact strength: IK10
- Nominal voltage: 220-240 V
- Voltage type: AC
- Colour rendering index CRI: 80-89
- Number of poles: 5
- Power factor: 0.9
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Dimmable: No
- Conductor cross section: 2.5 mm²
- Colour of light: White
- Light distributor: Reflector
- Luminaire efficacy: 108 lm/W
- Suitable for built-in mounting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -30-40 °C
- Type of wiring: Suitable for loop-through wiring
- Operation by Bluetooth: No
- Total harmonic distortion (THD): 30 %
- Colour consistency (McAdam ellipse): SDCM3
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 85 %
- Flickering value Pst LM: 0
- Beam angle adjustable: No
- Colour of light adjustable: Positions
- Luminous flux adjustable: Positions
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 74
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 74
- Stroboscope effect value SVM: 0
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: C
- Suitable for wall mounting: Yes
- Nominal current: 90-500 mA
- Connection type: Push-in clamp
- REACH Date: 2023-05-16
- REACH Information obligation: No
