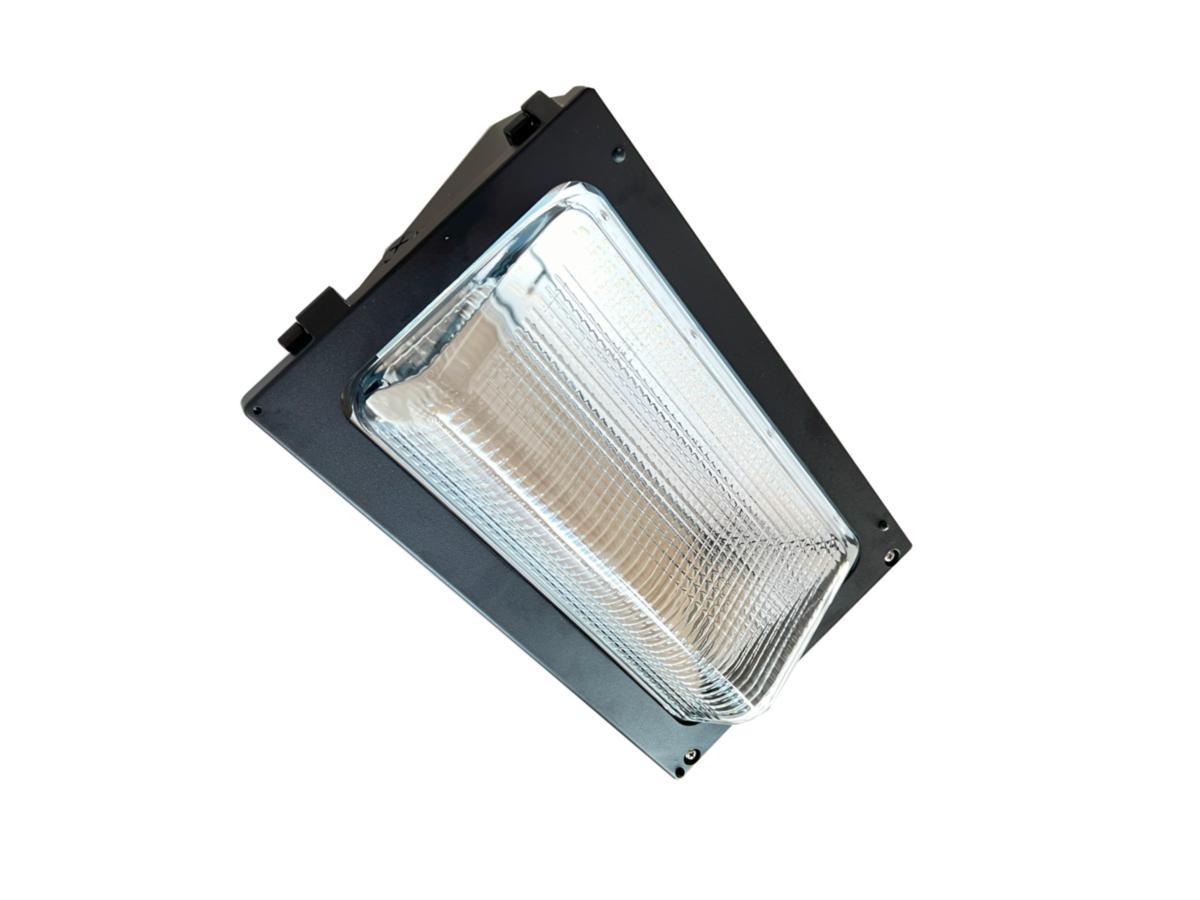

Wall luminaire Thor
FACADE LUM IP65 28W CCT
Article number: Suppl. article no:
7705558
CWL355-28W-3CCT-ND-I
to see price and stock
Thor IP65 is an easy-to-install and robust facade luminaire with a classic look that makes it suitable in most environments where you want direct downward light from a location on the facade.
- Article number: 7705558
- Suppl. article no: CWL355-28W-3CCT-ND-I
- Ean no: 7072907841072
- Material class QT9120
Technical data
- Packagin Size: 1 PCS/1 PCS/45 PCS
- Max. system power: 35 W
- Rated luminous flux according to IEC 62722-2- 1: 4286 lm
- Colour temperature: 3000-5000 K
- Housing colour: Black
- Dimming DALI: No
- Dimming DALI-2: No
- With movement sensor: No
- With light sensor: No
- Light distribution: Asymmetric
- Lamp type: LED not exchangeable
- Beam angle: 41-80° - Wide beam
- Degree of protection (IP): IP65
- Length: 132 mm
- Width: 345 mm
- Height/depth: 236 mm
- Type of control gear: LED operating device current-controlled
- Material cover: Structured glass
- Housing material: Aluminium
- Surface protection housing: Powder coating
- With control gear: Yes
- With light source: Yes
- Protection class according to IEC 61140: I
- Impact strength: IK08
- Nominal voltage: 220-240 V
- Voltage type: AC/DC
- Colour rendering index CRI: 80-89
- Light outlet: Direct
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimming phase cut-off (trailing edge): No
- Dimming with push-button: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 0.9
- Dimming phase cut-on (leading edge): No
- Dimmable: Yes
- Conductor cross section: 2.5 mm²
- Colour of light: White
- Light distributor: Reflector
- Luminaire efficacy: 122 lm/W
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- With air slots: No
- Suitable for ceiling mounting: No
- Type of grid: High-gloss
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Covering of the luminaire with thermally insulating material possible: No
- Operation by Bluetooth: No
- Colour consistency (McAdam ellipse): SDCM3
- Unified Glare Ratio (UGR): 19
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 85 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 10 %
- Beam angle adjustable: No
- Colour of light adjustable: Positions
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: Positions
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 40
- IFTTT support available: No
- Exchangeable control gear: Yes
- Compatible with Casambi: No
- Suitable for wall mounting: Yes
- Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): Yes
- Connection type: Push-in clamp
- REACH Date: 2022-01-01
- REACH Information obligation: No
