Hide-a-lite

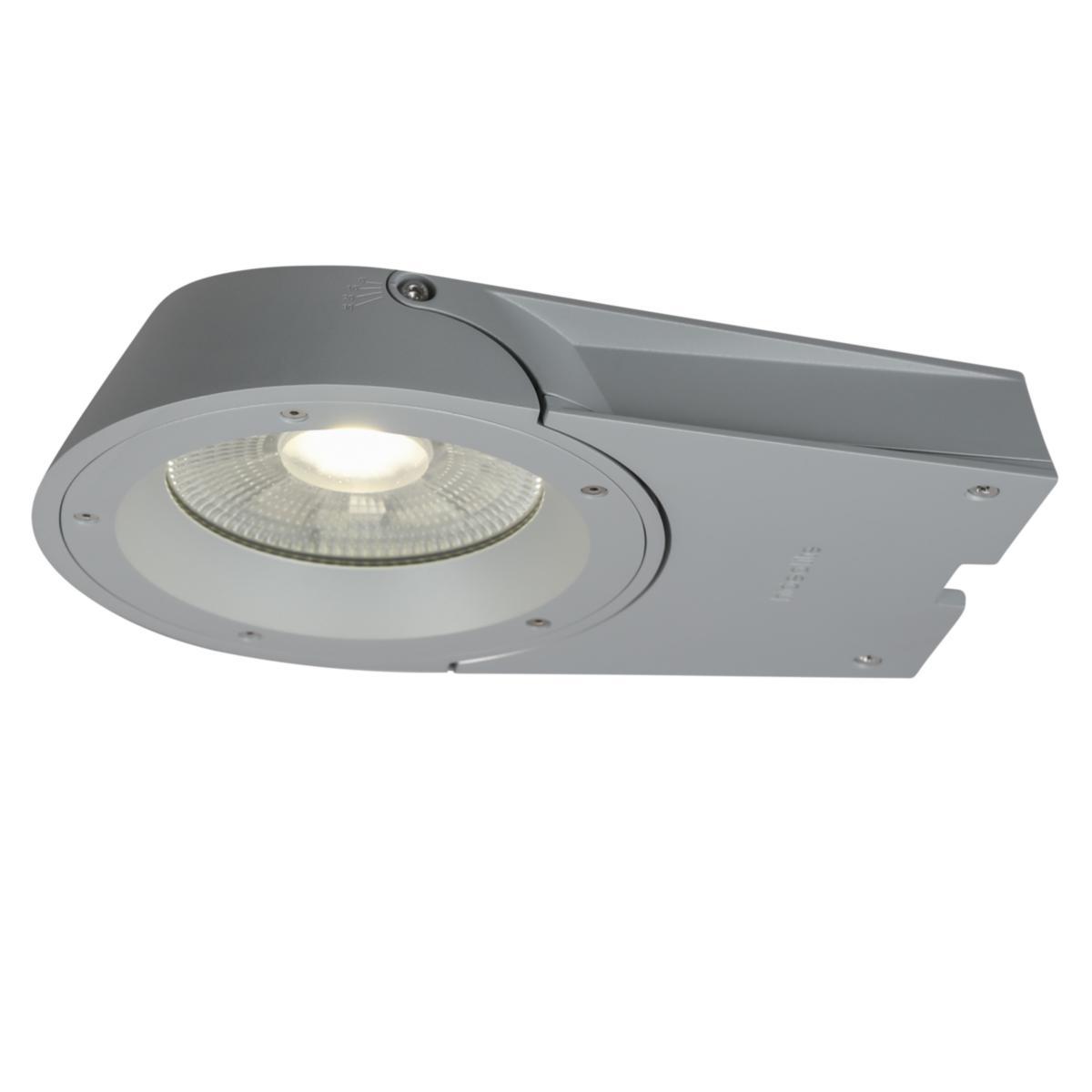

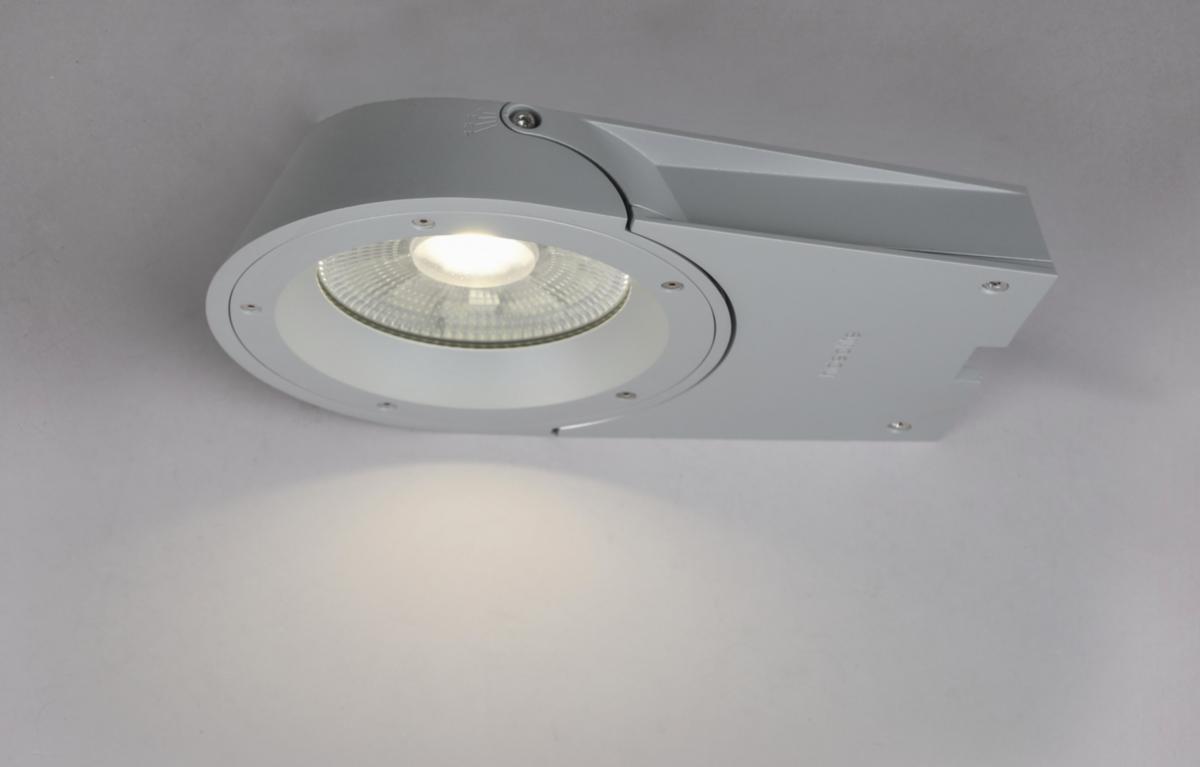

Facade fixture Sharp Wall
Sharp Wall Grey
Article number: Suppl. article no:
7705424
7705424
to see price and stock
Sharp Wall is a perfect facade fixture in a sharp design for wall mounting on larger properties that meets the requirements regarding glare, smoothness and color reproduction for car parks. Perfect on an industrial facade, next to the garage next to the rental property or why not over the warehouse gate. Adjustable luminous flux and selectable color temperature via DIP-Switch, directly in the luminaire. Impact resistant (IK10) with durable powder coating to cope with our Nordic climate. Customizable with its tiltable luminaire head, it makes it possible to direct the light 0-30°. Corner brackets are available as accessories and Mounting plate for thin metal and lightweight concrete facades. Easy to install thanks to separate back cover and switchable quick terminal for direct connection to 230V. Adapted for external cable.
- Article number: 7705424
- Suppl. article no: 7705424
- Ean no: 7392971145228
- Material class QT9020
Technical data
- Packagin Size: 1 PCS/4 PCS
- Max. system power: 27 W
- Rated luminous flux according to IEC 62722-2- 1: 2950 lm
- Colour temperature: 3000-4000 K
- Housing colour: Grey
- Light distribution: Symmetric
- Lamp type: LED exchangeable
- Suitable for number of light sources: 1
- Beam angle: > 80° - Extreme wide beam
- Degree of protection (IP): IP65
- Length: 450 mm
- Width: 200 mm
- Height/depth: 61 mm
- Type of control gear: LED operating device current-controlled
- Material cover: Plastic, transparent
- Housing material: Aluminium
- Surface protection housing: Powder coating
- With control gear: Yes
- With light source: Yes
- Protection class according to IEC 61140: I
- Impact strength: IK10
- Nominal voltage: 220-240 V
- Voltage type: AC
- Colour rendering index CRI: 80-89
- Light outlet: Direct
- Number of poles: 3
- Luminous intensity: 1280 cd
- Power factor: 0.94
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimmable: No
- Conductor cross section: 1.5 mm²
- Colour of light: White
- Light distributor: Focal lens
- Luminaire efficacy: 95 lm/W
- Suitable for built-in mounting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- Rated lifetime L70/B50 at 25 °C: 100000 h
- Rated ambient temperature according to IEC 62722-2-1: -20-50 °C
- Suitable for ceiling mounting: No
- Type of grid: None
- Type of wiring: Suitable for loop-through wiring
- Total harmonic distortion (THD): 9 %
- Colour consistency (McAdam ellipse): SDCM3
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 84 %
- Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq): 76 %
- Flickering value Pst LM: 0.056
- Beam angle adjustable: No
- Colour of light adjustable: Positions
- Constant light output (CLO): No
- Luminous flux adjustable: Positions
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 19
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 32
- Stroboscope effect value SVM: 0.012
- Exchangeable control gear: Yes
- Suitable for wall mounting: Yes
- Nominal current: 250-750 mA
- Connection type: Push-in clamp
- REACH Date: 2022-05-24
- REACH Information obligation: No
