Westal

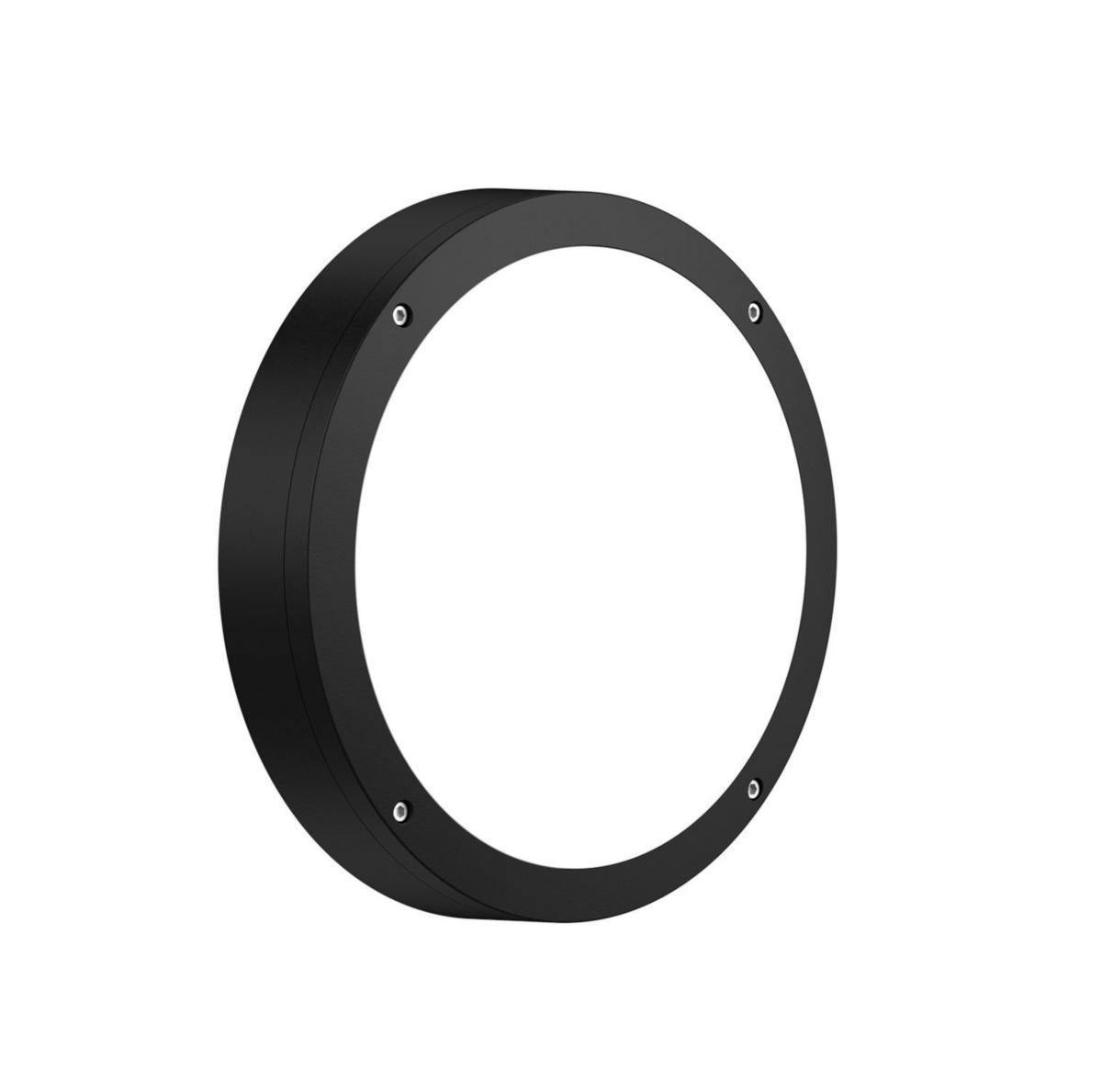

Wall luminaire Diploma half / full PC
DIPLOMA PC 3K BL
Article number: Suppl. article no:
7705198
21-6-29
to see price and stock
Wall / ceiling luminaire in PC. Dimmable with front-rear dimmer. For wall or ceiling mounting. Dual inputs / outputs with the possibility to come with a surface-mounted cable. For public environments such as parking garages, entrances, attic corridors etc ..
- Article number: 7705198
- Suppl. article no: 21-6-29
- Ean no: 7393047216477
- Material class QT9040
Technical data
- Design: Full
- Max. system power: 12 W
- Rated luminous flux according to IEC 62722-2- 1: 1100 lm
- Colour temperature: 3000 K
- Housing colour: Black
- Colour rendering index CRI: 80-89
- Height/depth: 59 mm
- Outer diameter: 275 mm
- Degree of protection (IP): IP65
- Impact strength: IK10
- Dimming phase cut-off (trailing edge): Yes
- Lamp type: LED not exchangeable
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Material cover: Plastic, opal
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Number of poles: 3
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming phase cut-on (leading edge): Yes
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: Yes
- Filament test according to IEC 60695-2-11: 750 °C - 30 s
- Protection class according to IEC 61140: II
- Housing material: Plastic
- Conductor cross section: 2.5 mm²
- Colour of light: White
- Light distribution: Symmetric
- Light outlet: Direct
- Luminaire efficacy: 92 lm/W
- With movement sensor: No
- With light source: Yes
- With light sensor: No
- Nominal voltage: 220-240 V
- Rated ambient temperature according to IEC 62722-2-1: -20-45 °C
- Type of wiring: Suitable for loop-through wiring
- Beam angle: > 80° - Extreme wide beam
- Colour consistency (McAdam ellipse): SDCM5
- Exchangeable control gear: No
- Suitable for wall mounting: Yes
- Connection type: Push-in clamp
- REACH Date: 2020-10-01
- REACH Information obligation: No
