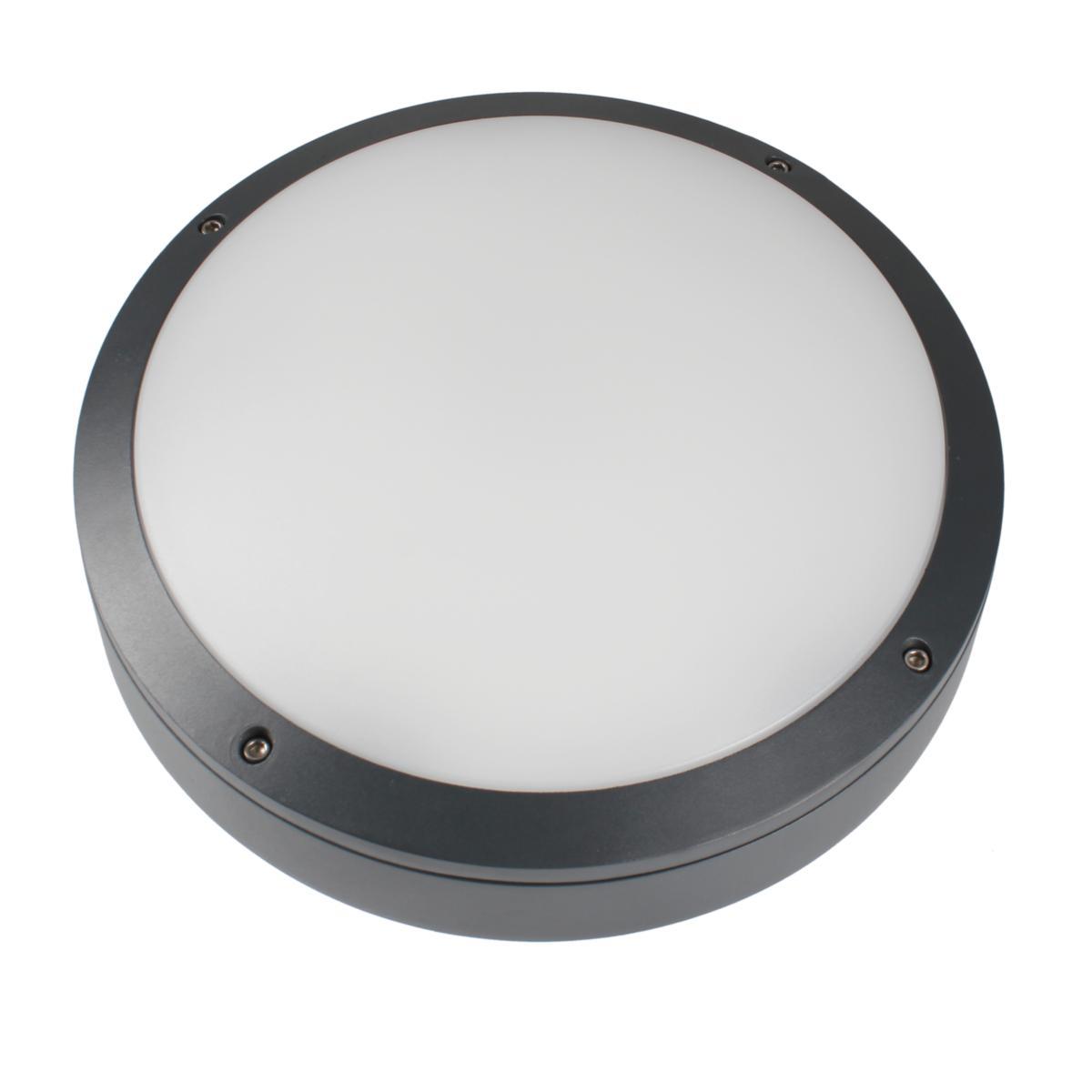

Wall/ceiling luminaire aRmour DLS
EXT LUM 1700LM 3000K DLS ANT ARMOUR
Article number:
7704785
to see price and stock
Robust luminaire for mounting on a facade, wall or ceiling. The luminaire has a built-in light relay that can be set from "always on" down to 2 lux. Can be supplemented with a cross or eye lid for decoration or shielding. Fixed luminous flux 1920lm.
- Article number: 7704785
- Ean no: 7333123081261
- Material class QT6800
Technical data
- Max. system power: 18 W
- Rated luminous flux according to IEC 62722-2- 1: 1920 lm
- Colour temperature: 3000 K
- Housing colour: Anthracite
- With light sensor: Yes
- Lamp type: LED not exchangeable
- Degree of protection (IP): IP65
- Height/depth: 78 mm
- Outer diameter: 275 mm
- Material cover: Plastic, opal
- Housing material: Aluminium
- Surface protection housing: Powder coating
- Protection class according to IEC 61140: I
- Impact strength: IK10
- Nominal voltage: 220-240 V
- Colour rendering index CRI: 80-89
- Number of poles: 3
- Dimmable: No
- Conductor cross section: 1.5 mm²
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Suitable for ceiling mounting: Yes
- Colour consistency (McAdam ellipse): SDCM3
- Suitable for wall mounting: Yes
- Connection type: Push-in clamp
- Rated life time L80/B10 at 25 °C: 50000 h
- REACH Date: 2025-03-13
- REACH Information obligation: No
