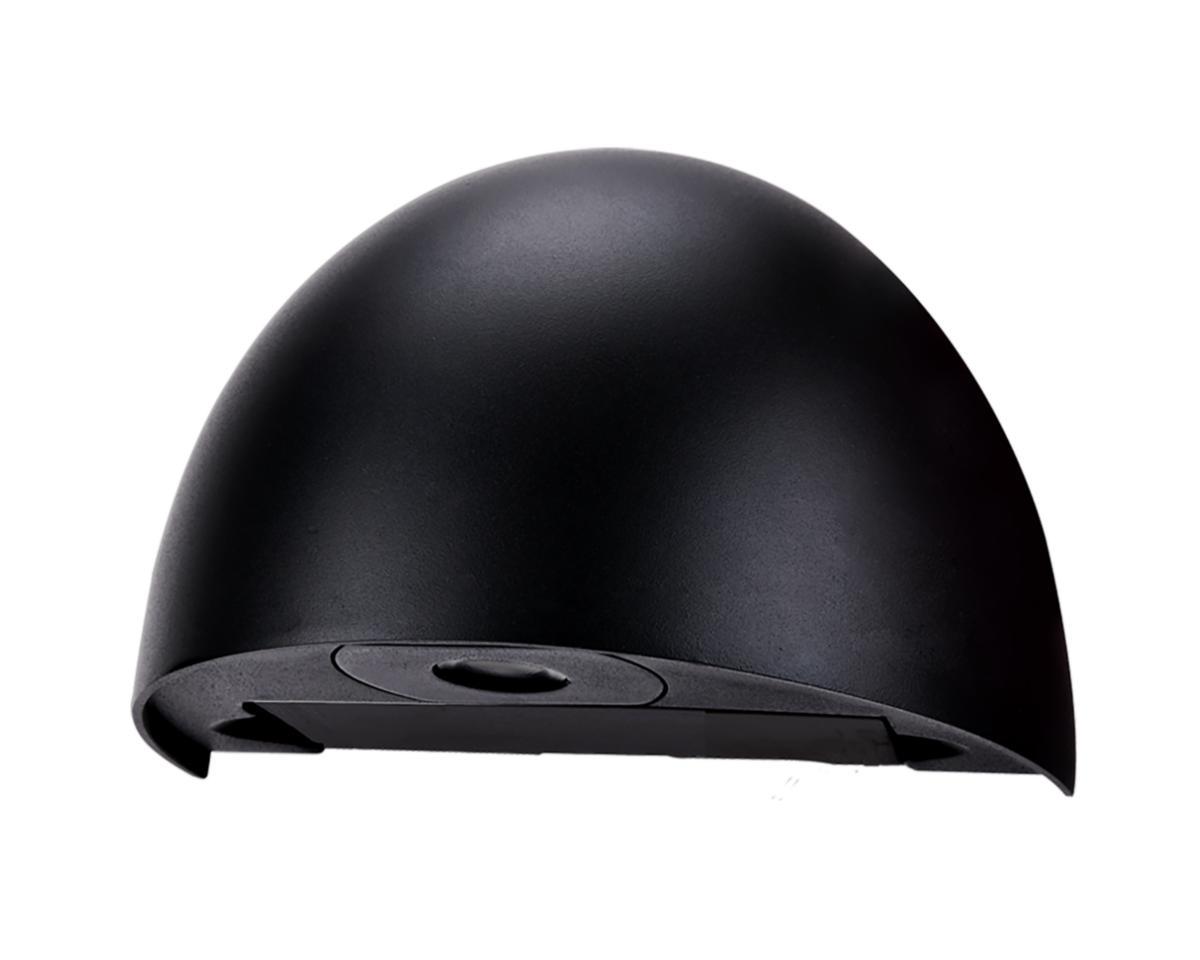

Wall luminaire UNI II, Westal
WALL ARM BLK
Article number: Suppl. article no:
7704684
20-2-14
to see price and stock
Wall luminaire with LED, variant with also 2 earthed sockets. Anodised and powder-coated aluminum frame. The luminaire is equipped with an LED unit equipped with a reflector lens for good glare. The back piece has two inputs and outputs for recessed or surface-mounted installation and a 4-pin quick-connect terminal block. The luminaire is suitable for outdoor use and is suitable for use in both private and public environments.
- Article number: 7704684
- Suppl. article no: 20-2-14
- Ean no: 7393044202145
- Material class QT9040
Technical data
- Packagin Size: 1 ST/8 ST
- Max. system power: 12 W
- Rated luminous flux according to IEC 62722-2- 1: 1376 lm
- Colour temperature: 3000 K
- Housing colour: Black
- With movement sensor: No
- With light sensor: No
- Light distribution: Symmetric
- Lamp type: LED exchangeable
- Beam angle: > 80° - Extreme wide beam
- Degree of protection (IP): IP54
- Length: 155 mm
- Width: 220 mm
- Height/depth: 145 mm
- Type of control gear: LED operating device current-controlled
- Housing material: Aluminium
- Surface protection housing: Powder coating
- With control gear: Yes
- Protection class according to IEC 61140: I
- Impact strength: IK10
- Nominal voltage: 100-277 V
- Voltage type: AC
- Colour rendering index CRI: 80-89
- Light outlet: Direct
- Number of poles: 4
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: Yes
- Dimmable: No
- Conductor cross section: 2.5 mm²
- Light distributor: Refractor lens
- Luminaire efficacy: 100 lm/W
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- With air slots: No
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Suitable for ceiling mounting: No
- Type of grid: Other
- Type of wiring: Loop-through wiring included
- Covering of the luminaire with thermally insulating material possible: No
- Colour consistency (McAdam ellipse): SDCM5
- Suitable for wall mounting: Yes
- Connection type: Insulation displacement connector
- REACH Date: 2021-12-08
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
