Hide-a-lite

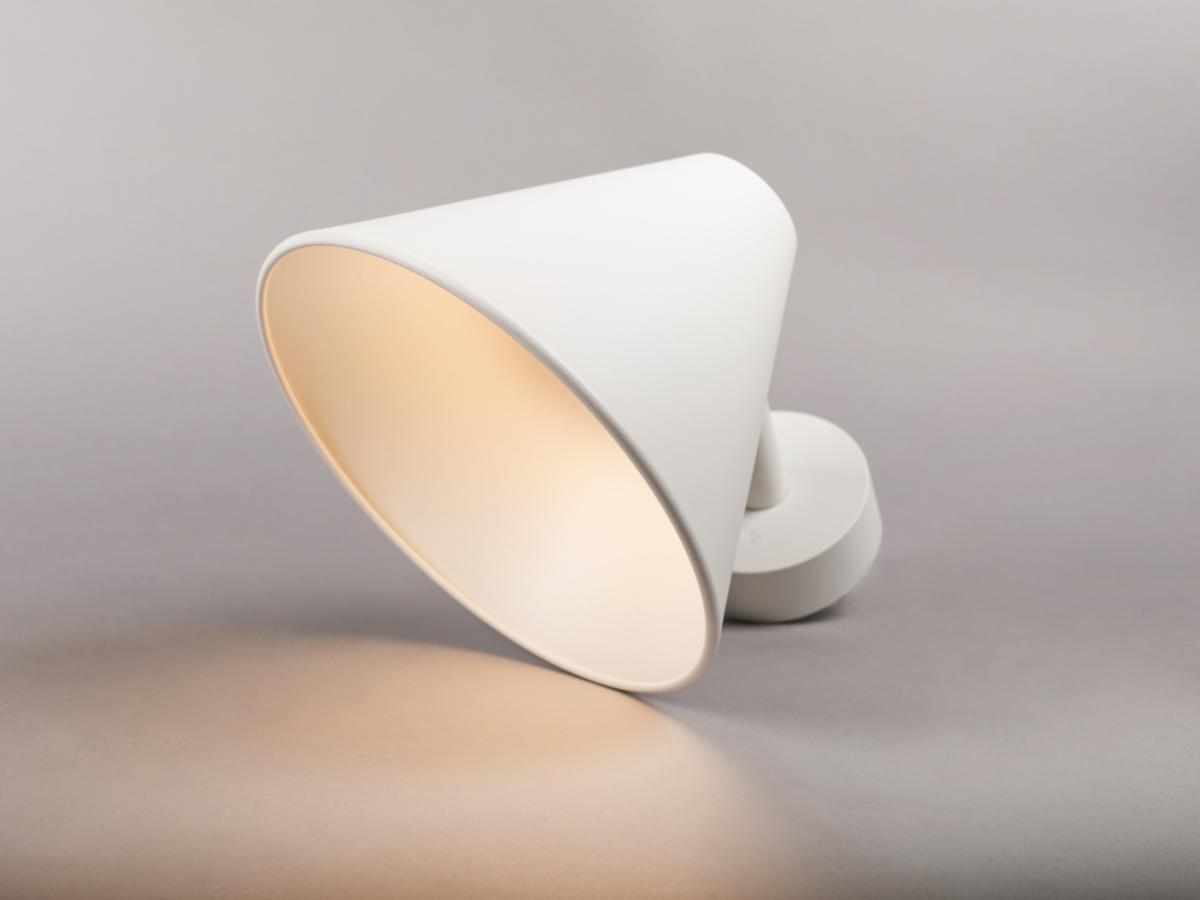

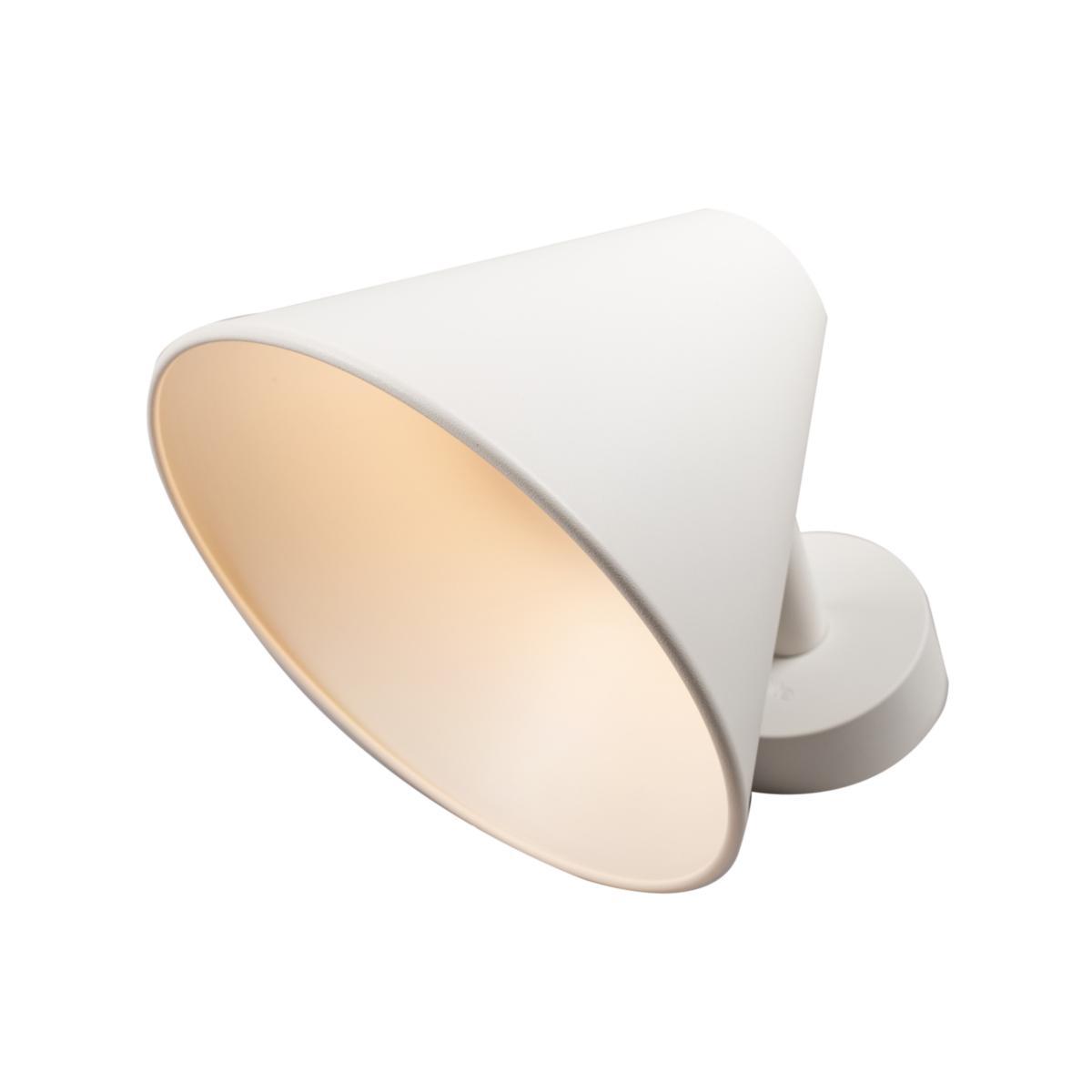

Wall luminaire Peak, Hide-a-Lite
WALLFIXT. PEAK WHITE PEAK
Article number: Suppl. article no:
7704330
7704330
to see price and stock

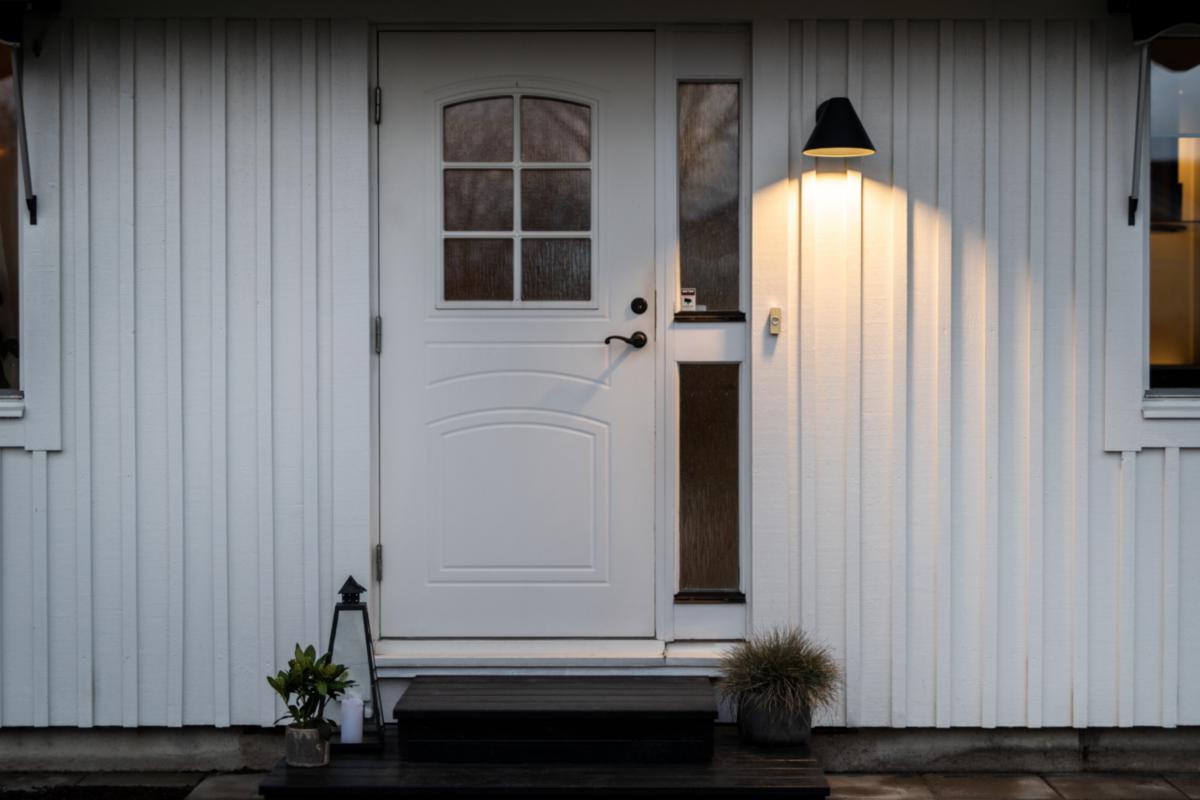

Classic wall design for large and small facades. Creates a wide light image and illuminates both wall and ground. Peak with LED has integrated interchangeable phase dimmable drive and selectable color temperature. IP54 and IK08 rating with durable powder coating to cope with our Nordic climate. Separate back cover and divertable quick-release terminal for direct connection to 230 V. The back cover also has an integrated spirit level that facilitates installation. Supplied with spacers for surface wiring.
- Article number: 7704330
- Suppl. article no: 7704330
- Ean no: 7392971139111
- Material class QT902B
Technical data
- Packagin Size: 1 ST/4 ST
- Max. system power: 10.5 W
- Rated luminous flux according to IEC 62722-2- 1: 830 lm
- Colour temperature: 3000-4000 K
- Dimmable: Yes
- Housing colour: White
- Lamp type: LED exchangeable
- Beam angle: > 80° - Extreme wide beam
- Lamp holder: Other
- Dimming DALI: No
- Material cover: Plastic, transparent
- Number of poles: 3

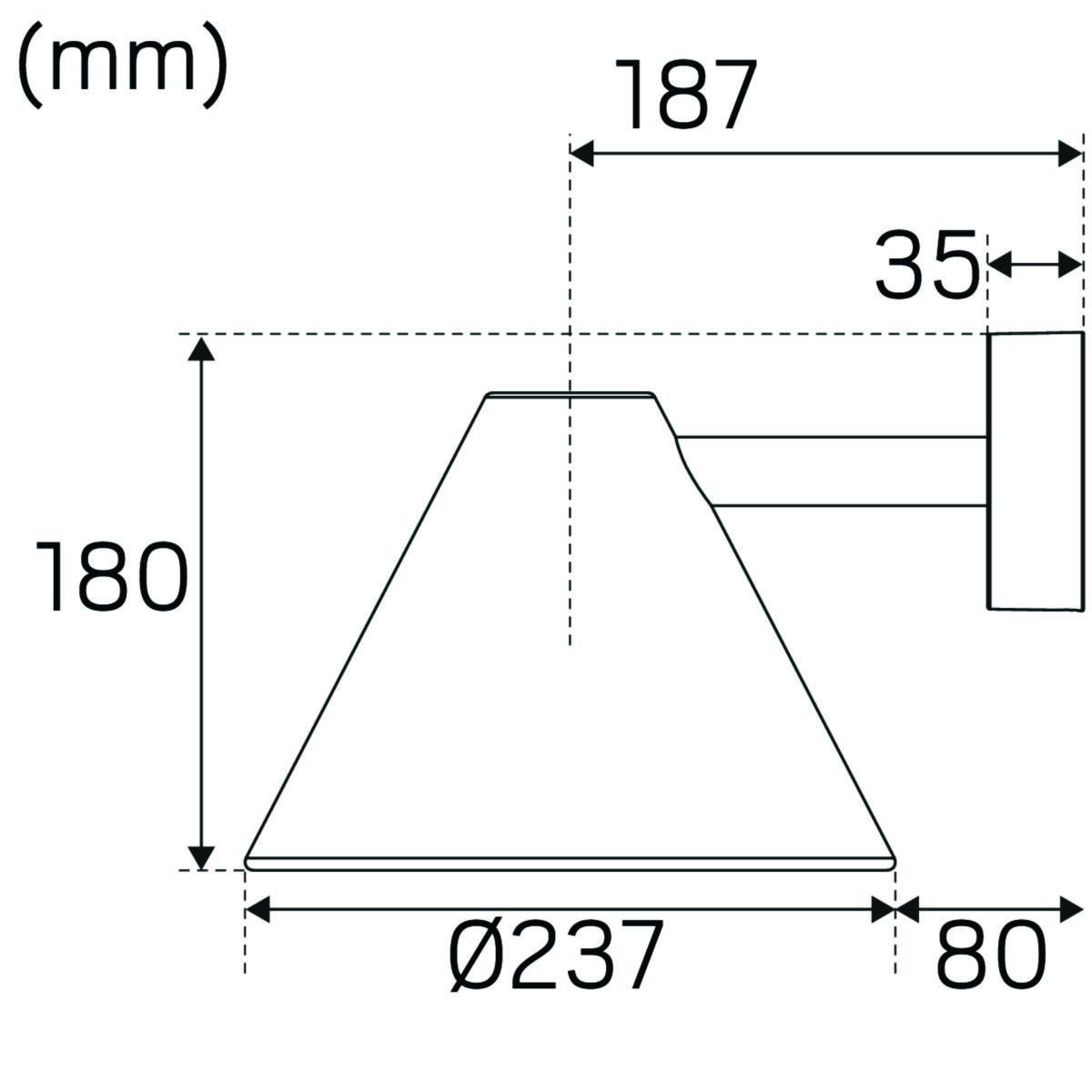

- Height/depth: 180 mm
- Outer diameter: 237 mm
- Type of control gear: LED operating device current-controlled
- Degree of protection (IP): IP54
- Housing material: Other
- With control gear: Yes
- With light source: Yes
- Protection class according to IEC 61140: I
- Impact strength: IK08
- Nominal voltage: 220-240 V
- Voltage type: AC
- Colour rendering index CRI: 80-89
- Light distribution: Symmetric
- Light outlet: Direct
- Covering of the luminaire with thermally insulating material possible: No
- Type of grid: None
- Built-in length: 317 mm
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- With light sensor: No
- With air slots: No
- With movement sensor: No
- Suitable for workplace according to EN 12464-1: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Suitable for number of light sources: 1
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: No
- Dimming phase cut-off (trailing edge): Yes
- Dimming with push-button: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 0.9
- Dimming phase cut-on (leading edge): Yes
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Conductor cross section: 2.5 mm²
- Light distributor: Diffuser lens/optic/panel
- Luminaire efficacy: 79 lm/W
- Rated ambient temperature according to IEC 62722-2-1: -20-50 °C
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Operation by Bluetooth: No
- Colour consistency (McAdam ellipse): SDCM3
- Luminous intensity: 410 cd
- Surface protection housing: Powder coating
- Suitable for wall mounting: Yes
- REACH Date: 2022-06-01
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Emergency power supply integrated: No
- Dimming depending on control gear: No
