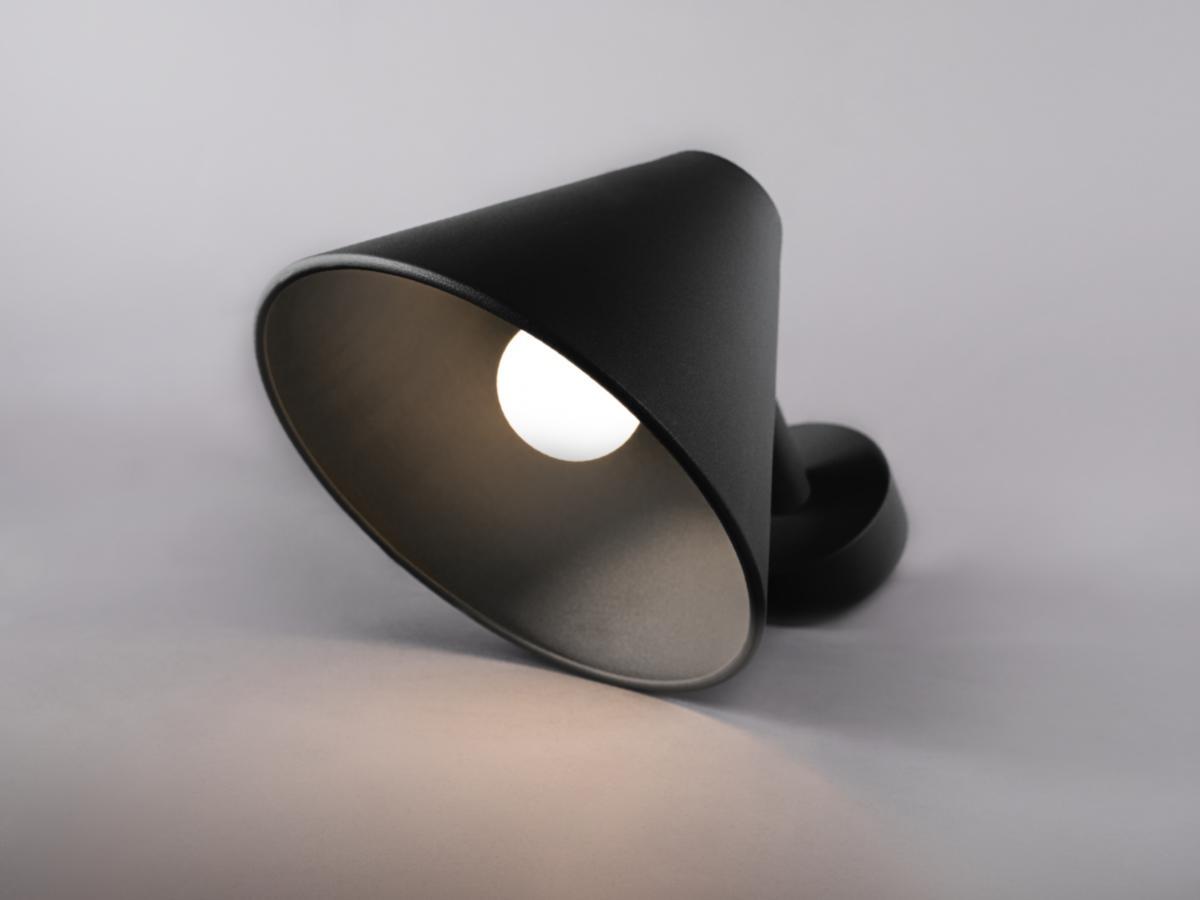

Wall luminaire Peak E27, Hide-a-Lite
WALLFIXT. PEAK E27 ANTHRACITE PEAK EXKL LJUSK
Article number: Suppl. article no:
7704328
7704328
to see price and stock
Classic wall luminaire for large and small facades that creates a wide light picture and illuminates both wall and ground. With the E27 socket you choose your own light source (not included). IP54 rating with durable powder coating to cope with our Nordic climate. Easily installed thanks to a separate backplate and divertable quick-release terminal for direct connection to 230 V. The backplate also has an integrated spirit level that facilitates assembly. Supplied with spacers for surface wiring.
- Article number: 7704328
- Suppl. article no: 7704328
- Ean no: 7392971139098
- Material class QT902B
Technical data
- Packagin Size: 1 ST/4 ST
- Housing colour: Anthracite
- Lamp type: Incandescent lamp
- Lamp holder: E27
- Number of poles: 3

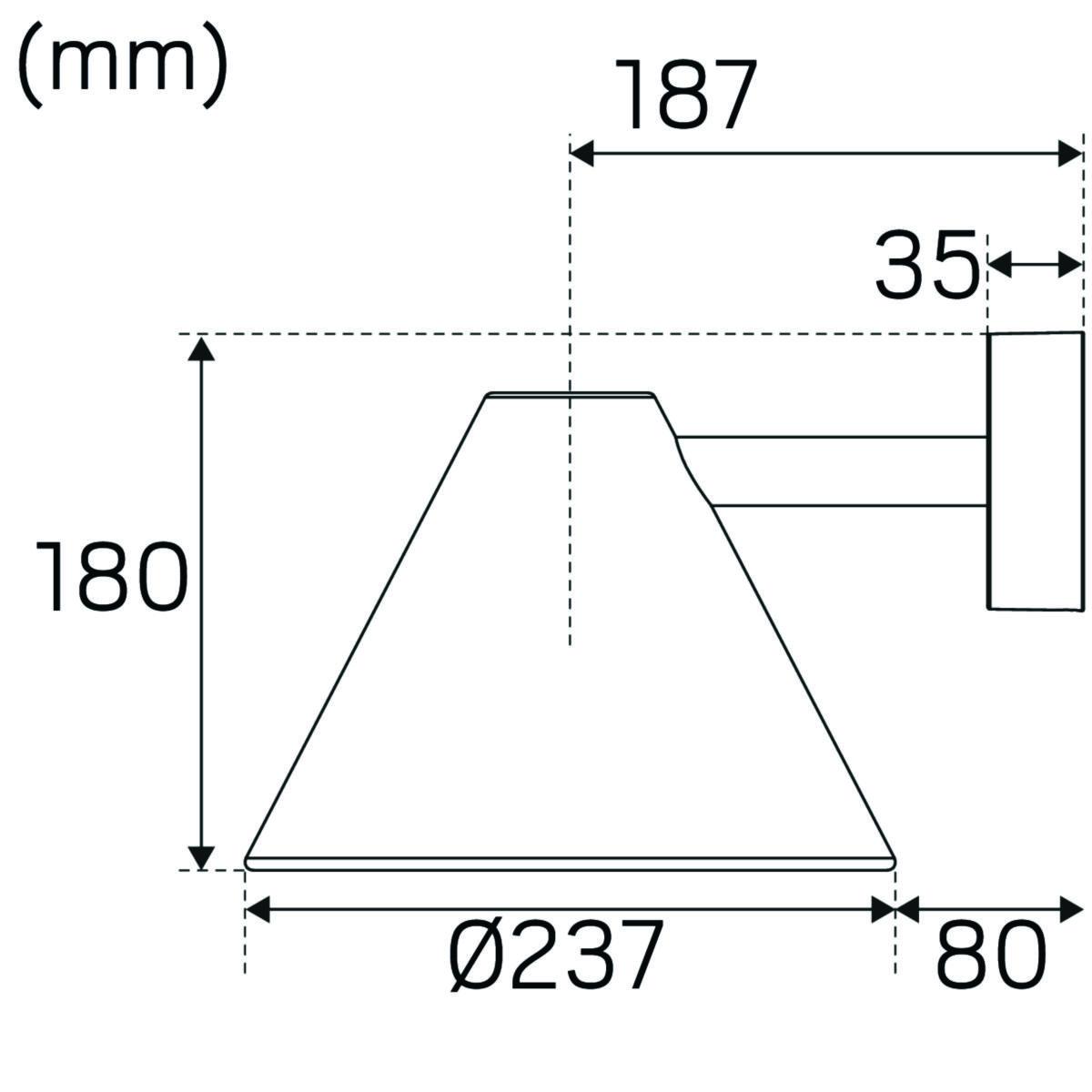

- Height/depth: 180 mm
- Outer diameter: 237 mm
- Degree of protection (IP): IP23
- Housing material: Other
- With light source: No
- Protection class according to IEC 61140: I
- Nominal voltage: 220-240 V
- Voltage type: AC
- Light distribution: Symmetric
- Light outlet: Direct
- Covering of the luminaire with thermally insulating material possible: No
- Type of grid: None
- Built-in length: 317 mm
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- With light sensor: No
- With air slots: No
- With movement sensor: No
- Suitable for workplace according to EN 12464-1: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Suitable for number of light sources: 1
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: No
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Conductor cross section: 2.5 mm²
- Light distributor: None
- Suitable for lamp power: 1-60 W
- Type of wiring: Suitable for loop-through wiring
- Surface protection housing: Powder coating
- Suitable for wall mounting: Yes
- REACH Date: 2022-06-01
- Lowest energy efficiency class of the exchangeable lamp: E
- REACH Information obligation: No
- Emergency power supply integrated: No
- Highest energy efficiency class of the exchangeable lamp: A++
