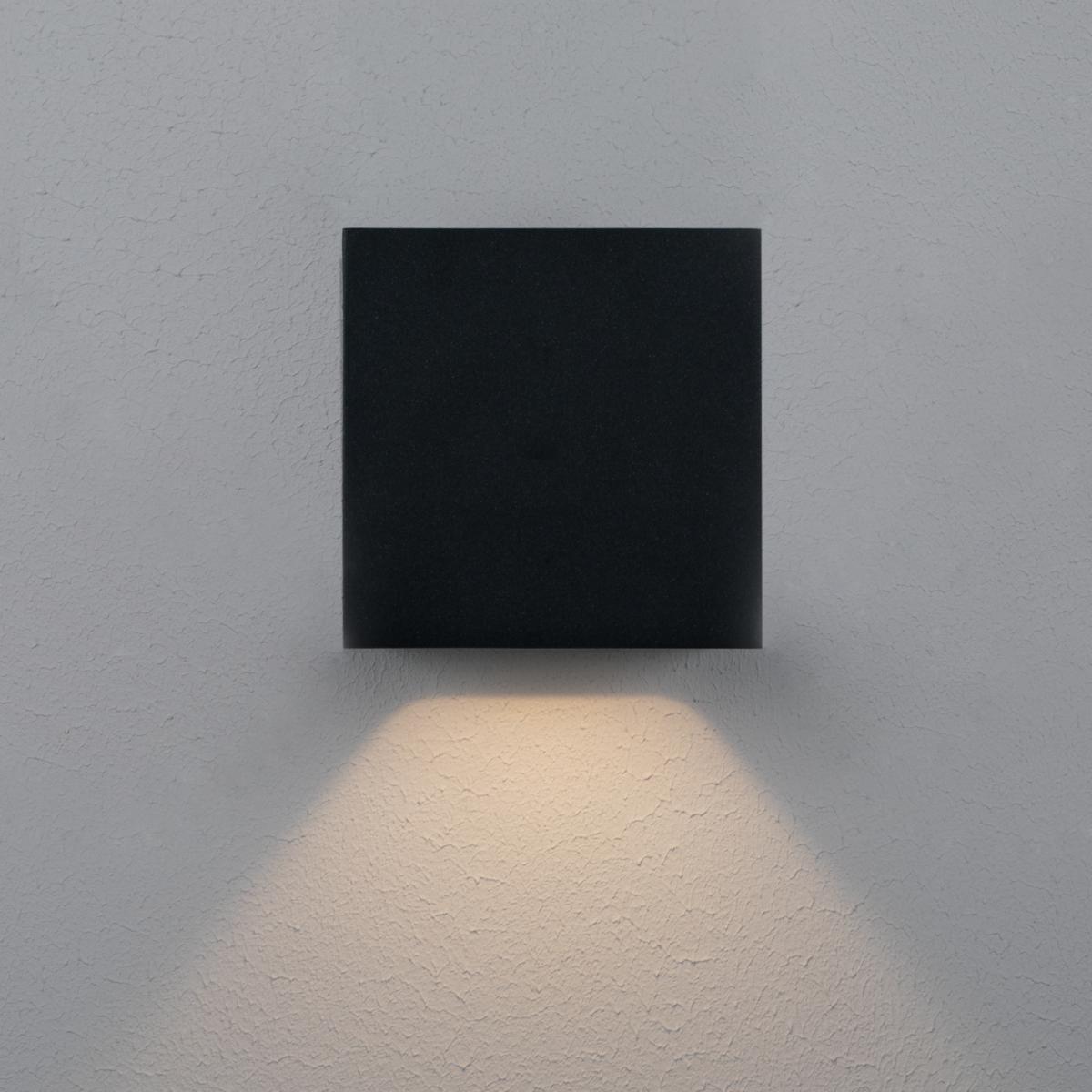

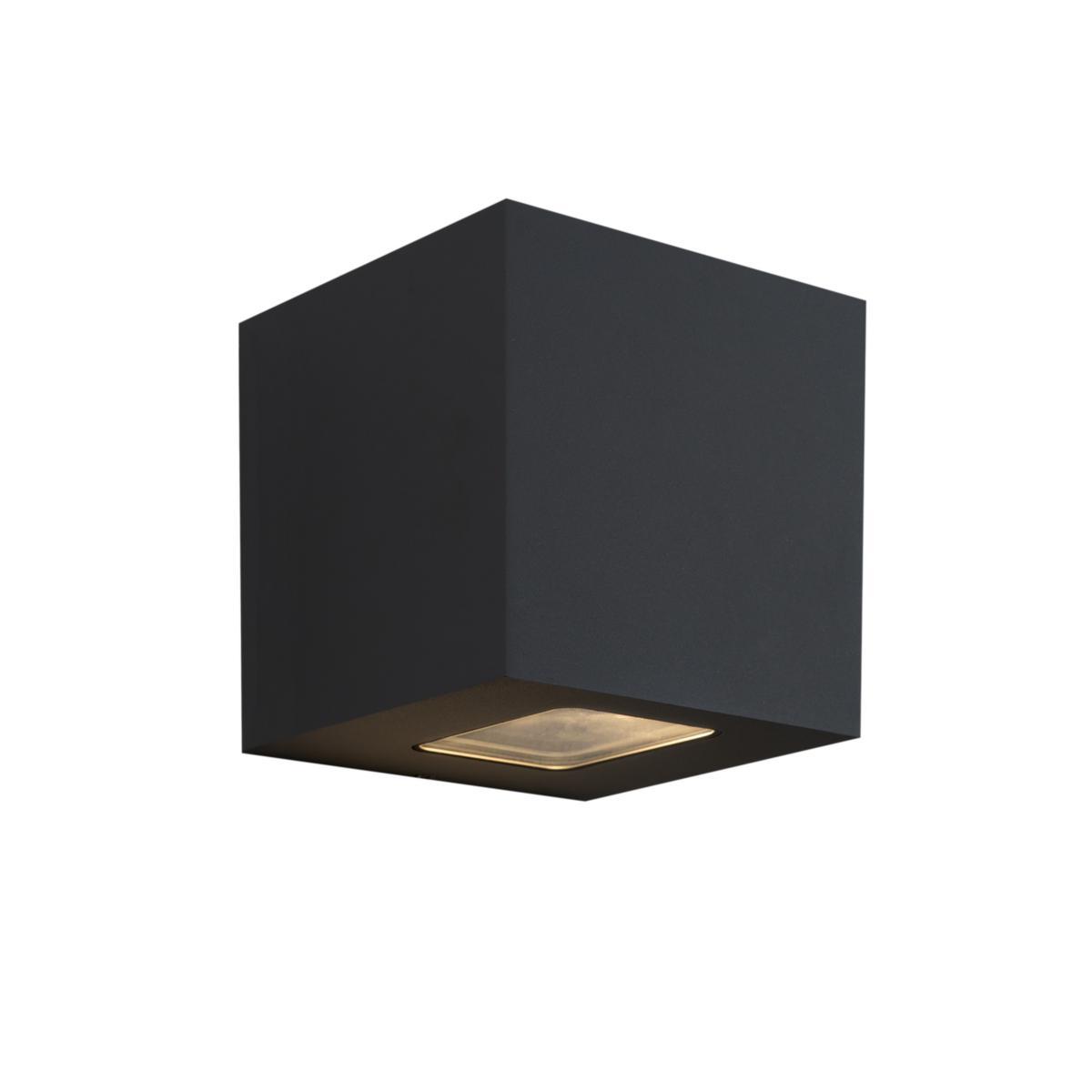

Wall luminaire Cube XL I, Hide a Lite
WALL CUBE XL I ANTHRA 3000K IP65 CUBE XL I
Article number: Suppl. article no:
7703802
7703802
to see price and stock
Impact-resistant wall luminaire in cube-shaped timeless design for lighting larger facades and entrances. Big brother in the Cube family. Easy to install and complete for direct connection to 230V. Easy installation thanks to a separate back piece and a switchable quick-connect terminal block. Spacers for surface wiring are included. IP65 rating and durable powder coating to withstand harsh environments. Built-in actuators with separately adjustable light level via DIP switch for up or down light, 60% and 100%
- Article number: 7703802
- Suppl. article no: 7703802
- Ean no: 7392971135748
- Material class QT902A
Technical data
- Packagin Size: 1 ST/6 ST
- Max. system power: 12.5 W
- Rated luminous flux according to IEC 62722-2- 1: 925 lm
- Colour temperature: 3000 K
- Housing colour: Anthracite
- Dimming DALI: No
- With movement sensor: No
- With light sensor: No
- Light distribution: Symmetric
- Lamp type: LED not exchangeable
- Suitable for number of light sources: 1
- Beam angle: 41-80° - Wide beam
- Lamp holder: Other
- Degree of protection (IP): IP65
- Length: 150 mm
- Width: 150 mm
- Height/depth: 150 mm
- Type of control gear: LED operating device current-controlled
- Material cover: Without cover
- Housing material: Aluminium
- With control gear: Yes
- With light source: Yes
- Protection class according to IEC 61140: I
- Impact strength: IK10
- Nominal voltage: 220-240 V
- Voltage type: AC
- Colour rendering index CRI: 80-89
- Light outlet: Direct
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimming phase cut-off (trailing edge): No
- Dimming with push-button: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming phase cut-on (leading edge): No
- Dimmable: No
- Conductor cross section: 2.5 mm²
- Colour of light: White
- Light distributor: Reflector
- Luminaire efficacy: 74 lm/W
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- With air slots: No
- Rated lifetime L70/B50 at 25 °C: 75000 h
- Rated ambient temperature according to IEC 62722-2-1: -20-50 °C
- Suitable for ceiling mounting: No
- Type of grid: None
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Covering of the luminaire with thermally insulating material possible: No
- Suitable for wall mounting: Yes
- REACH Date: 2022-06-01
- Dimming GPRS: No
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
- Dimming depending on control gear: No
