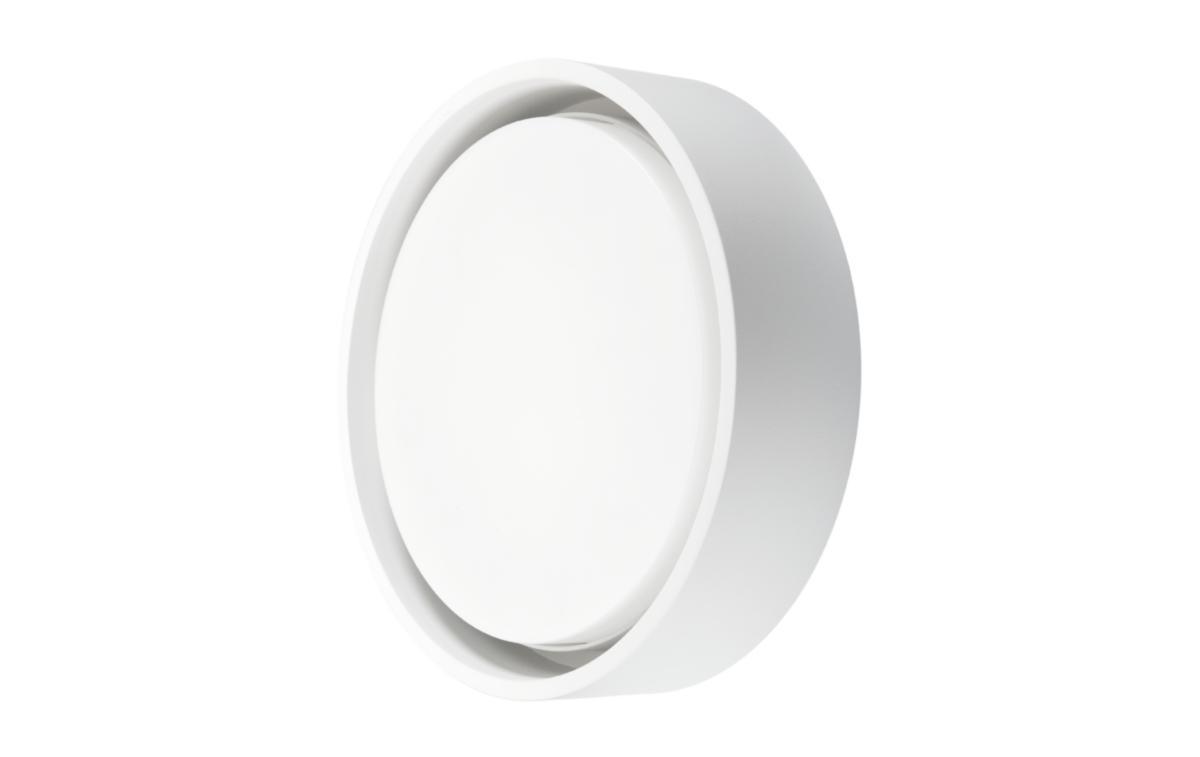

Wall luminaire Frame, SG-Armaturen
FRAME ROUND WHITE 3000K FRAME ROUND
Article number: Suppl. article no:
7703501
605041
to see price and stock

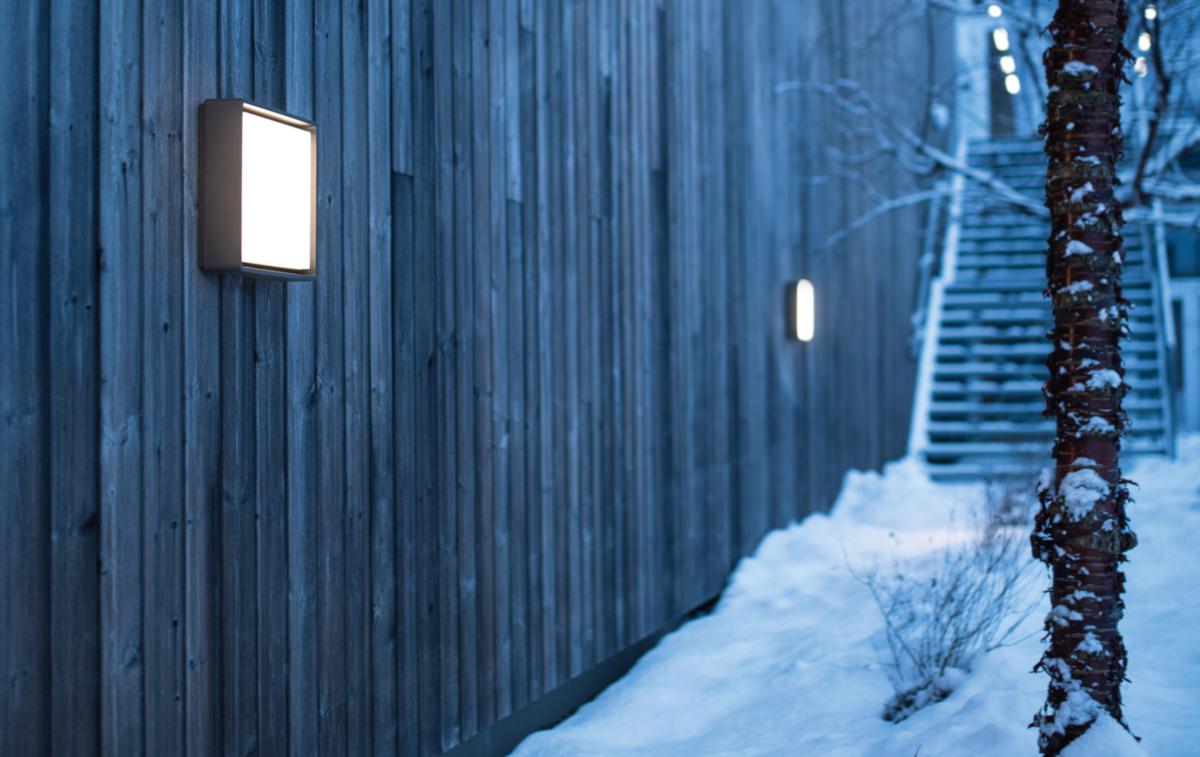

Frame is a modern, stylish design luminaire that fits just as well indoors and outdoors. Can be mounted both on the ceiling and on the wall. Made of die-cast, powder-coated aluminum with black, white or graphite gray surface. Screen in UV stabilized, opal polycarbonate. The frame series is available as round, square and rectangular in several sizes. Versions with sensor and twilight relay are available. Simple installation, two inputs / outputs for cables, with the possibility of both hidden and visible cable. 10-year corrosion guarantee, protection class IP66, impact resistance IK10. Lumens value can be set to different lumen values with dip switch
- Article number: 7703501
- Suppl. article no: 605041
- Ean no: 7021986050417
- Material class QT687A
Technical data
- Packagin Size: 1 ST/6 ST/72 ST
- Type: Round
- Max. system power: 7 W
- Rated luminous flux according to IEC 62722-2- 1: 670 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimming DALI: No
- With movement sensor: No
- With light sensor: No
- Light distribution: Symmetric
- Lamp type: LED not exchangeable
- Suitable for number of light sources: 1
- Beam angle: > 80° - Extreme wide beam
- Lamp holder: Other
- Degree of protection (IP): IP65
- Height/depth: 77 mm
- Outer diameter: 270 mm
- Type of control gear: LED operating device current-controlled
- Material cover: Plastic, opal
- Housing material: Aluminium
- Surface protection housing: Powder coating
- With control gear: Yes
- With light source: Yes
- Protection class according to IEC 61140: II
- Degree of protection (NEMA): Other
- Impact strength: IK10
- Nominal voltage: 220-240 V
- Voltage type: AC
- Colour rendering index CRI: 80-89
- Light outlet: Direct
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 2
- Dimming phase cut-off (trailing edge): Yes
- Dimming with push-button: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Power factor: 0.9
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming phase cut-on (leading edge): No
- Dimmable: Yes
- Conductor cross section: 1.5 mm²
- Colour of light: White
- Light distributor: Other
- Luminaire efficacy: 96 lm/W
- Suitable for built-in mounting: No
- Suitable for lamp power: 7 W
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- With air slots: No
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Suitable for ceiling mounting: Yes
- Type of grid: Matt
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Covering of the luminaire with thermally insulating material possible: No
- Operation by Bluetooth: No
- Photobiological safety according to EN 62471: Other
- Colour consistency (McAdam ellipse): SDCM3
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 80 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 20 %
- Beam angle adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Luminous flux adjustable: Positions
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 123
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 123
- IFTTT support available: No
- Exchangeable control gear: No
- Suitable for wall mounting: Yes
- Connection type: Push-in clamp
- REACH Date: 2022-08-25
- REACH contains candidate substances: Bly
- Dimming LineSwitch: No
- Dimming Sine Wave Reduction: No
- REACH Information obligation: Yes
