Norlys
Roof luminaire Lofoten
ROOF LUMINAIRE E27 IP44 LOFOTEN BLK
Article number: Suppl. article no:
7703087
1942B
to see price and stock

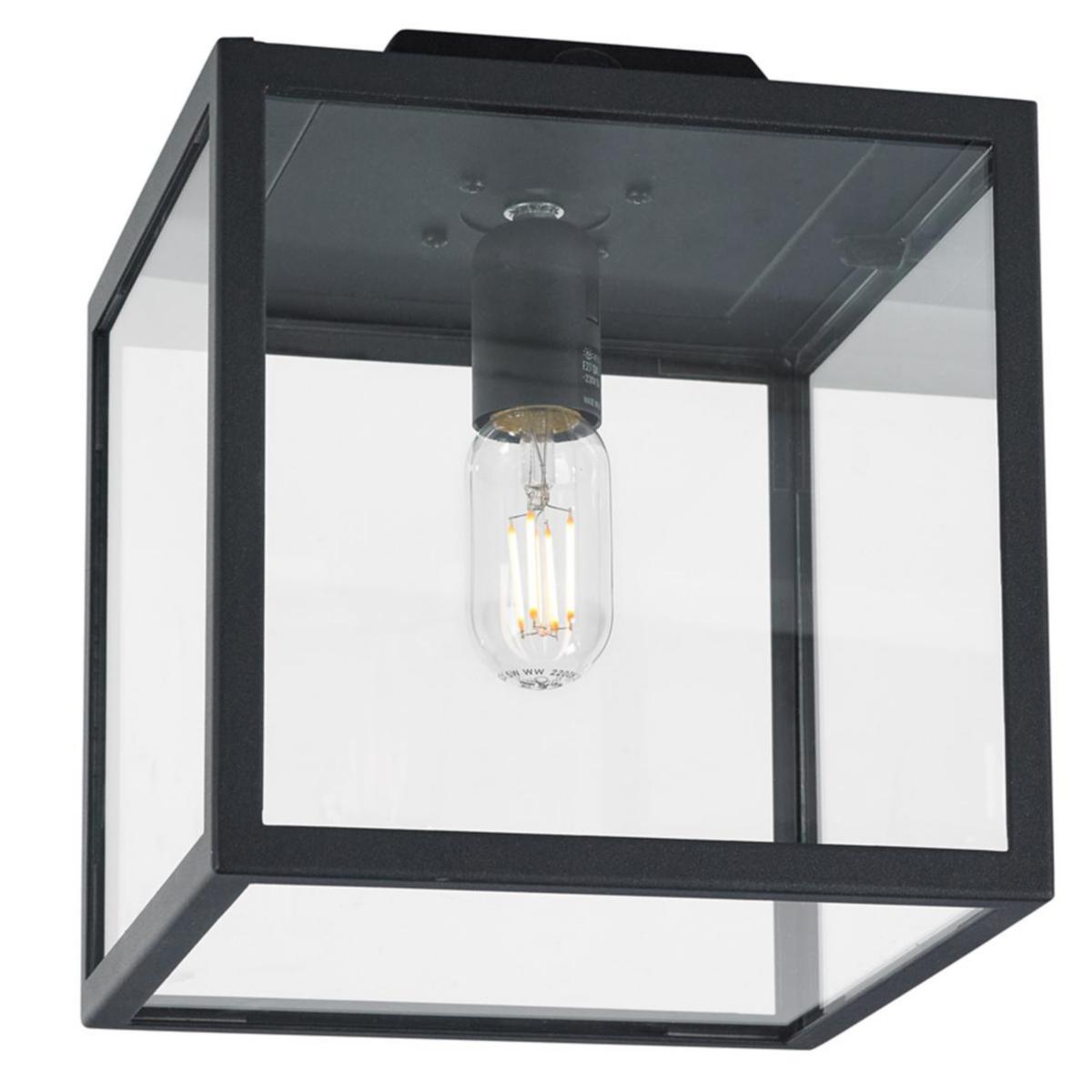

Retro luminaire for ceiling mounting. The luminaire is in black lacquered steel with clear glass. Available in two variants for mounting thick ceilings and a variant that is mounted suspended in a chain.
- Article number: 7703087
- Suppl. article no: 1942B
- Ean no: 7042891942765
- Material class QT9060
Technical data
- Type: 1942B
- Design: Cube
- Dimmable: Yes
- Housing colour: Black
- Lamp type: Incandescent lamp
- Beam angle: > 80° - Extreme wide beam
- Lamp holder: E27
- Dimming DALI: No
- Dimming DALI-2: No
- Cover material: Glass transparent
- Length: 230 mm
- Number of poles: 2
- Width: 230 mm
- Height/depth: 270 mm
- Type of control gear: Not required
- Degree of protection (IP): IP44
- Housing material: Steel
- With control gear: No
- With light source: No
- Protection class according to IEC 61140: II
- Nominal voltage: 220-240 V
- Voltage type: AC
- Light distribution: Symmetric
- Light outlet: Direct
- Covering of the luminaire with thermally insulating material possible: No
- Type of grid: None
- Colour of light: White
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for emergency lighting: No
- Suitable for suspended mounting: No
- With light sensor: No
- With air slots: Yes
- With movement sensor: No
- Suitable for workplace according to EN 12464-1: No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Suitable for number of light sources: 1
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: Yes
- Dimming phase cut-off (trailing edge): No
- Dimming with push-button: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Dimming phase cut-on (leading edge): No
- Glow-wire test according to IEC 60695-2-11: None
- Conductor cross section: 2.5 mm²
- Light distributor: None
- Degree of protection (NEMA): Other
- Dimming Touch and Dim: No
- Type of wiring: Suitable for loop-through wiring
- Surface protection housing: Powder coating
- Exchangeable control gear: No
- Suitable for wall mounting: No
- Connection type: Other
- REACH Date: 2021-06-15
- Lowest energy efficiency class of the exchangeable lamp: D
- Highest energy efficiency class of the exchangeable lamp: A++
- Dimming GPRS: No
- REACH Information obligation: No
- Dimming depending on control gear: No
