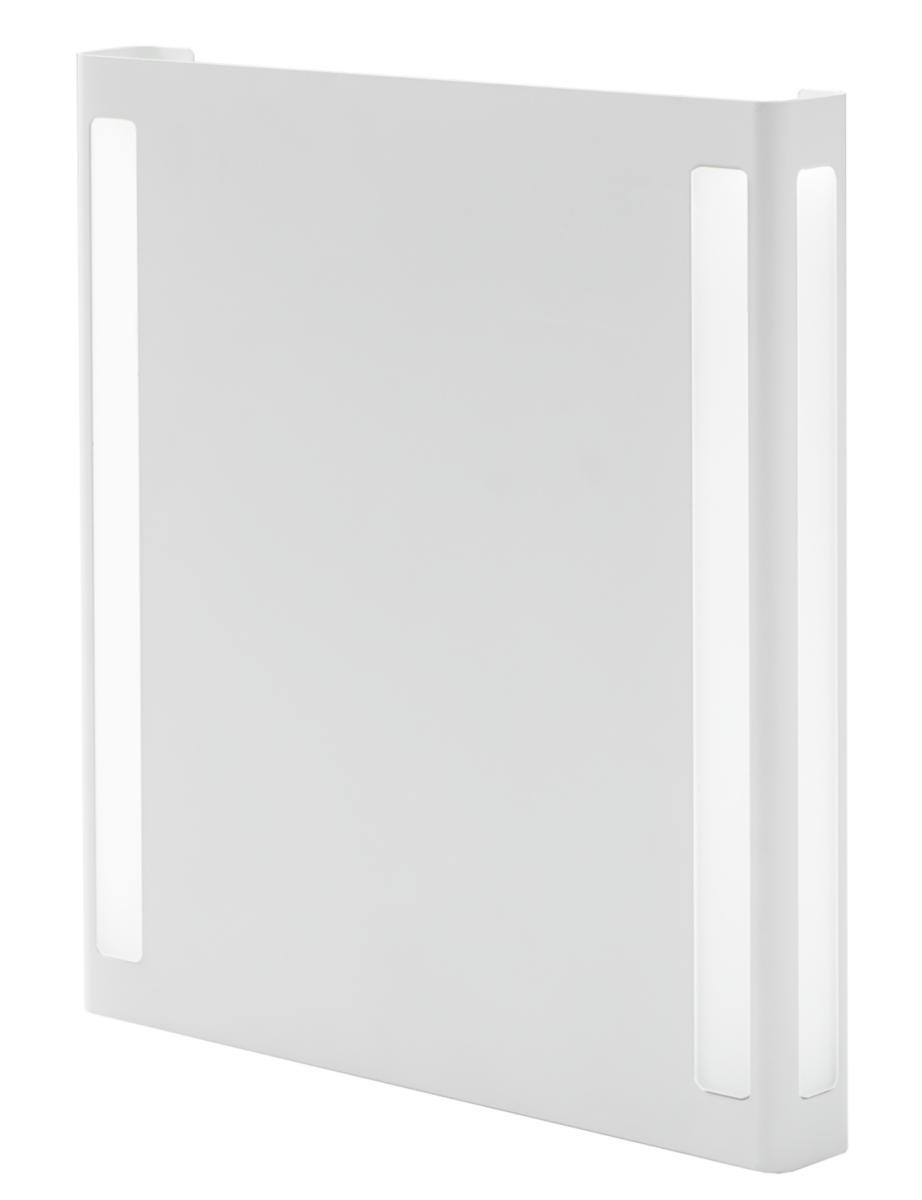

Wall luminaire
WALL LUM 1150LM 3000K WHITE
Article number: Suppl. article no:
7511200
7333123912008
to see price and stock
Luminaire for wall mounting. Suspension with keyhole or on a box. Frame and front in white painted RAL901 glare shield in white opal acrylic. Connection in transferable 3-pole terminal block, cable entry in the middle and ends of the luminaire, possible to connect with exposed cable. Adjustable light output and power in several steps.
- Article number: 7511200
- Suppl. article no: 7333123912008
- Ean no: 7333123912008
- Material class QT6800
Technical data
- Packagin Size: 1 PCS/80 PCS
- Max. system power: 14 W
- Rated luminous flux according to IEC 62722-2- 1: 230-1400 lm
- Colour temperature: 3000 K
- Housing colour: White
- Dimming DALI: No
- Dimming DALI-2: No
- Colour rendering index CRI: 80-89
- Length: 320 mm
- Width: 295 mm
- Height/depth: 50 mm
- Degree of protection (IP), front side: IP30
- Impact strength: IK03
- Dimming phase cut-off (trailing edge): No
- Lamp type: LED exchangeable
- Type of control gear: LED operating device current-controlled
- With control gear: Yes
- Material cover: Plastic, opal
- Voltage type: AC
- Number of poles: 3
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimmable: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming RF: No
- Dimming Touch and Dim: No
- Dimming Zigbee: No
- Dimming phase cut-on (leading edge): No
- Dimming manufacturer's proprietary system: No
- Dimming potentiometer (integrated): No
- Dimming mains voltage modulation: No
- Dimming programmable: No
- Dimming with push-button: No
- Suitable for built-in mounting: No
- Suitable for light line configuration: No
- Suitable for suspended mounting: No
- Suitable for surface mounting: Yes
- Suitable for ceiling mounting: No
- Protection class according to IEC 61140: I
- Housing material: Steel
- Conductor cross section: 2.5 mm²
- Colour of light: White
- Light distribution: Symmetric
- Light outlet: Direct
- With movement sensor: No
- With light source: Yes
- Nominal voltage: 220-240 V
- Type of wiring: Suitable for loop-through wiring
- Beam angle: > 80° - Extreme wide beam
- Power factor: 0.87
- Colour consistency (McAdam ellipse): SDCM3
- Surface protection housing: Powder coating
- Beam angle adjustable: No
- Colour of light adjustable: No
- Luminous flux adjustable: Positions
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 27
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 46
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: C
- Suitable for wall mounting: Yes
- Connection type: Push-in clamp
- Connectable conductor cross section: 0.75-2.5 mm²
- Suitable for clamp-mounting: No
- Max. number of luminaires per miniature circuit breaker C10 (MCB): 27
- With presence detector: No
- Emergency power supply system: None
- REACH Date: 2025-07-04
- REACH Information obligation: No
