Hide-a-lite
Interior luminaire Flexline
Flexline 300 White
Article number: Suppl. article no:
7511474
5600
to see price and stock

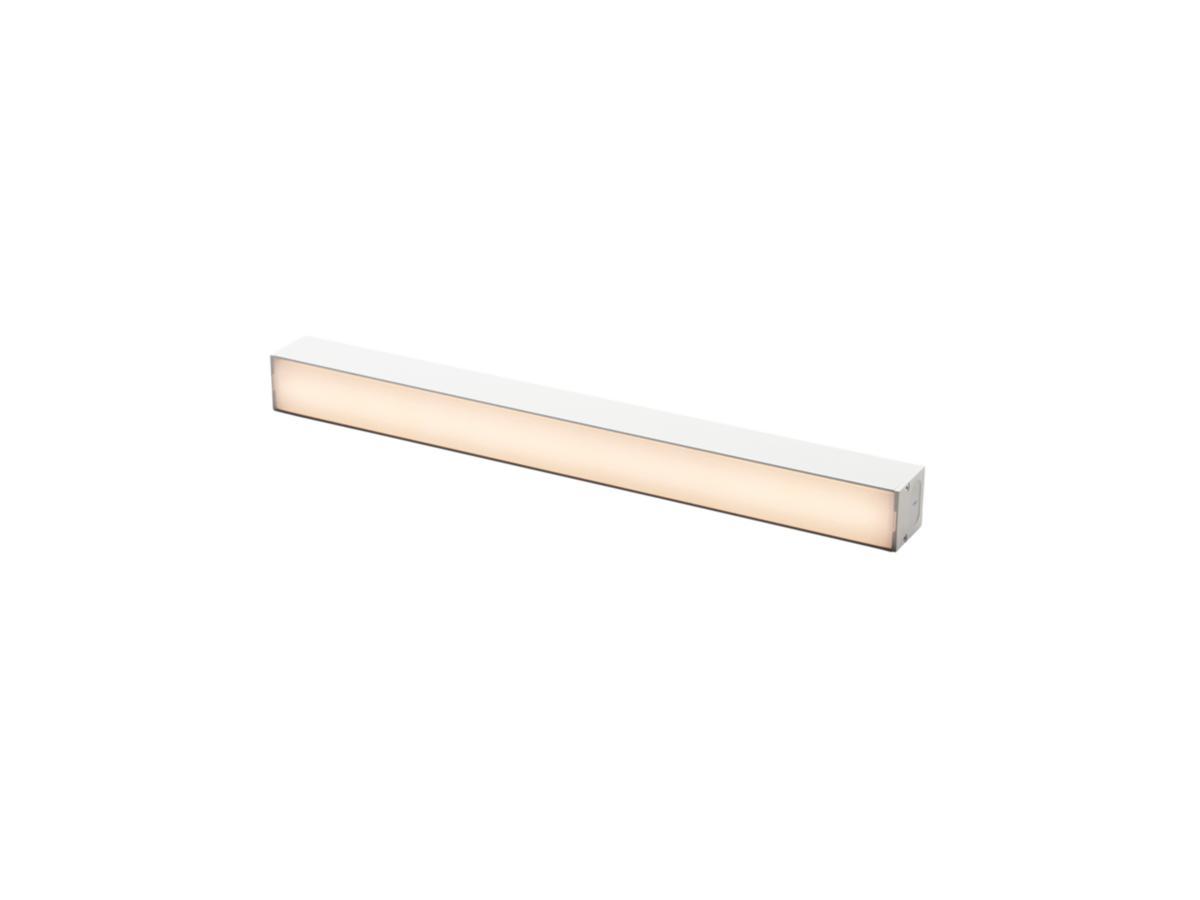

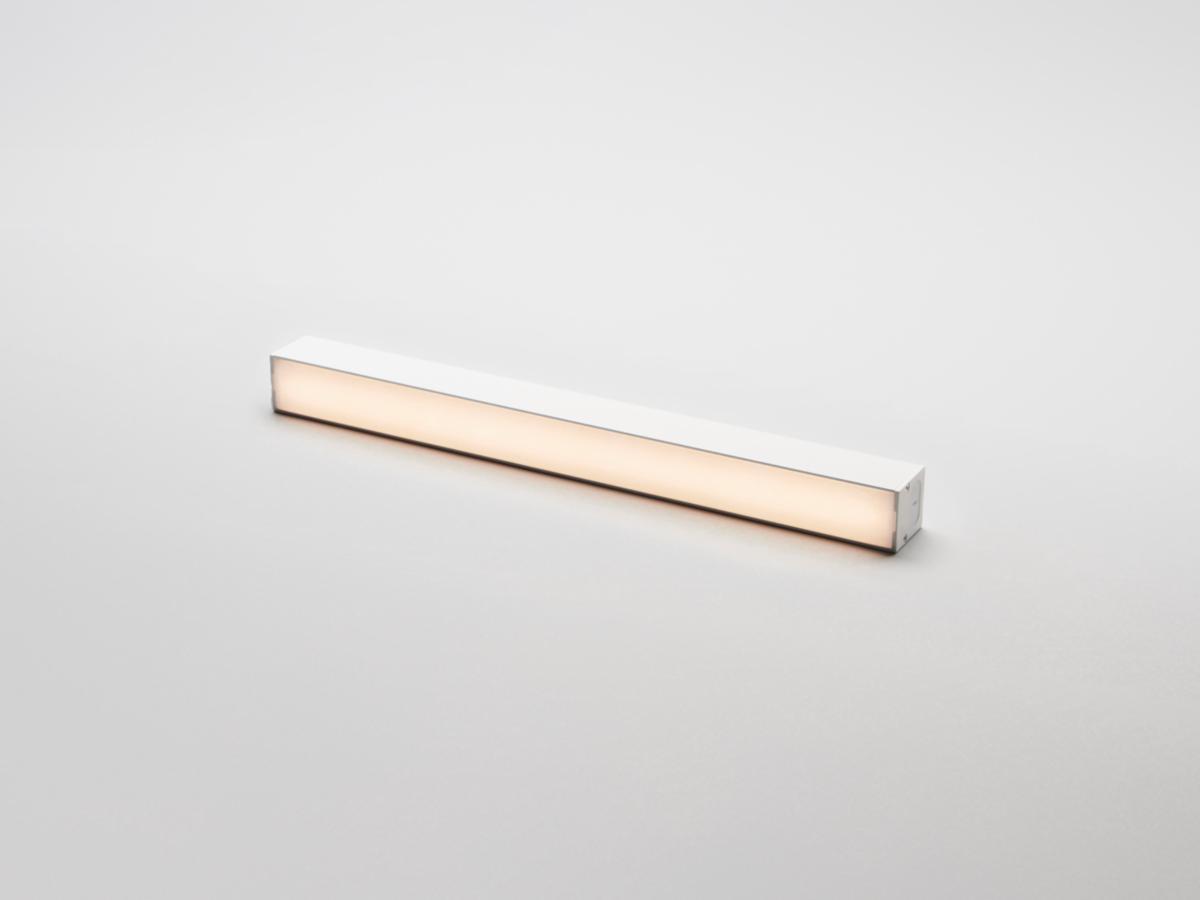

Flexline is a ready-made 230V profile solution with connection. Available in white or black painted aluminum. Wide range of accessories such as joints, suspension kits and connections (ordered separately). Available in lengths from 30 cm to 2 m. The luminaire has pre-drilled holes and is supplied with double-sided adhesive tape to facilitate installation. Screws should always be used for mounting. Select color temperature via DIP switch (2700K, 3000K or 4000K). Replaceable LED and driver. Dimmable via external dimmer and can be connected to a length of up to 10 meters. Perfect for a wide range of applications such as behind curtains, in fitting rooms, niches, integrated into shelving systems or base cabinets, and suspended over, for example, shop counters.
- Article number: 7511474
- Suppl. article no: 5600
- Ean no: 7392971153209
- Material class QT7620
Technical data
- Packagin Size: 1 PCS/30 PCS
- Max. system power: 6 W
- Rated luminous flux according to IEC 62722-2- 1: 490-545 lm
- Colour temperature: 2700-4000 K
- Housing colour: White
- Length: 300 mm
- Height/depth: 28 mm
- Width: 27 mm
- Degree of protection (IP): IP20
- Protection class according to IEC 61140: II
- With control gear: Yes
- Colour rendering index CRI: 90-100
- Nominal voltage: 220-240 V
- Material: Aluminium
- Lamp type: LED exchangeable
- Colour of light: White
- Rated lifetime L70/B50 at 25 °C: 100000 h
- With switch: No
- Dimming phase cut-off (trailing edge): Yes
- With light source: Yes
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 91 %
- Dimmable: Yes
- Dimming phase cut-on (leading edge): No
- Power factor: 0.9
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Colour of light adjustable: Positions
- Luminous flux adjustable: Continuously variable
- Light distributor: Diffuser lens/optic/panel
- Voltage type: AC
- Type of wiring: Suitable for loop-through wiring
- Exchangeable control gear: Yes
- Nominal current: 125 mA
- Luminaire efficacy: 91 lm/W
- Connection type: Other
- Containing product according to 2019/2020/EU: Yes
- REACH Date: 2025-06-16
- GWP-tot (A1-A3): 3,7900 kgCO2e/ST
- REACH Information obligation: No
