Hide-a-lite

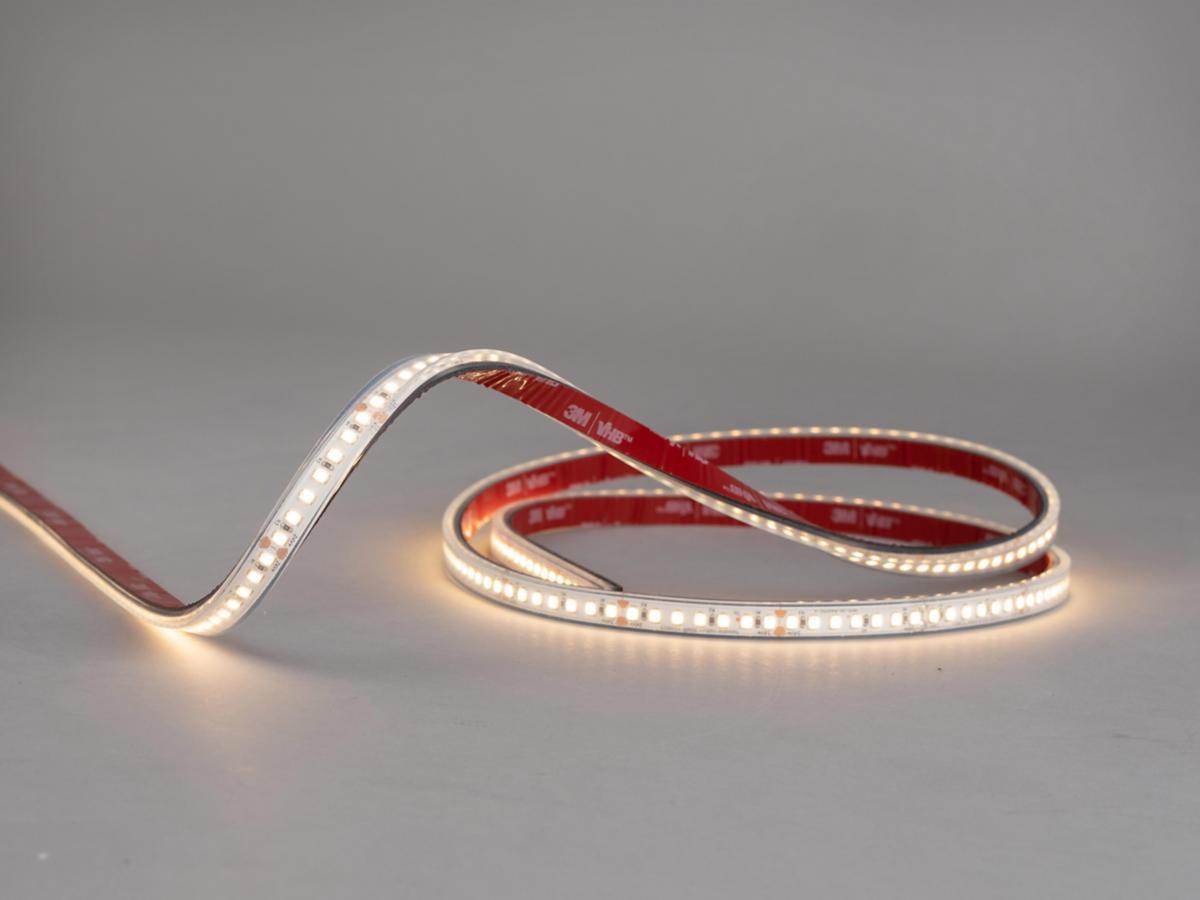

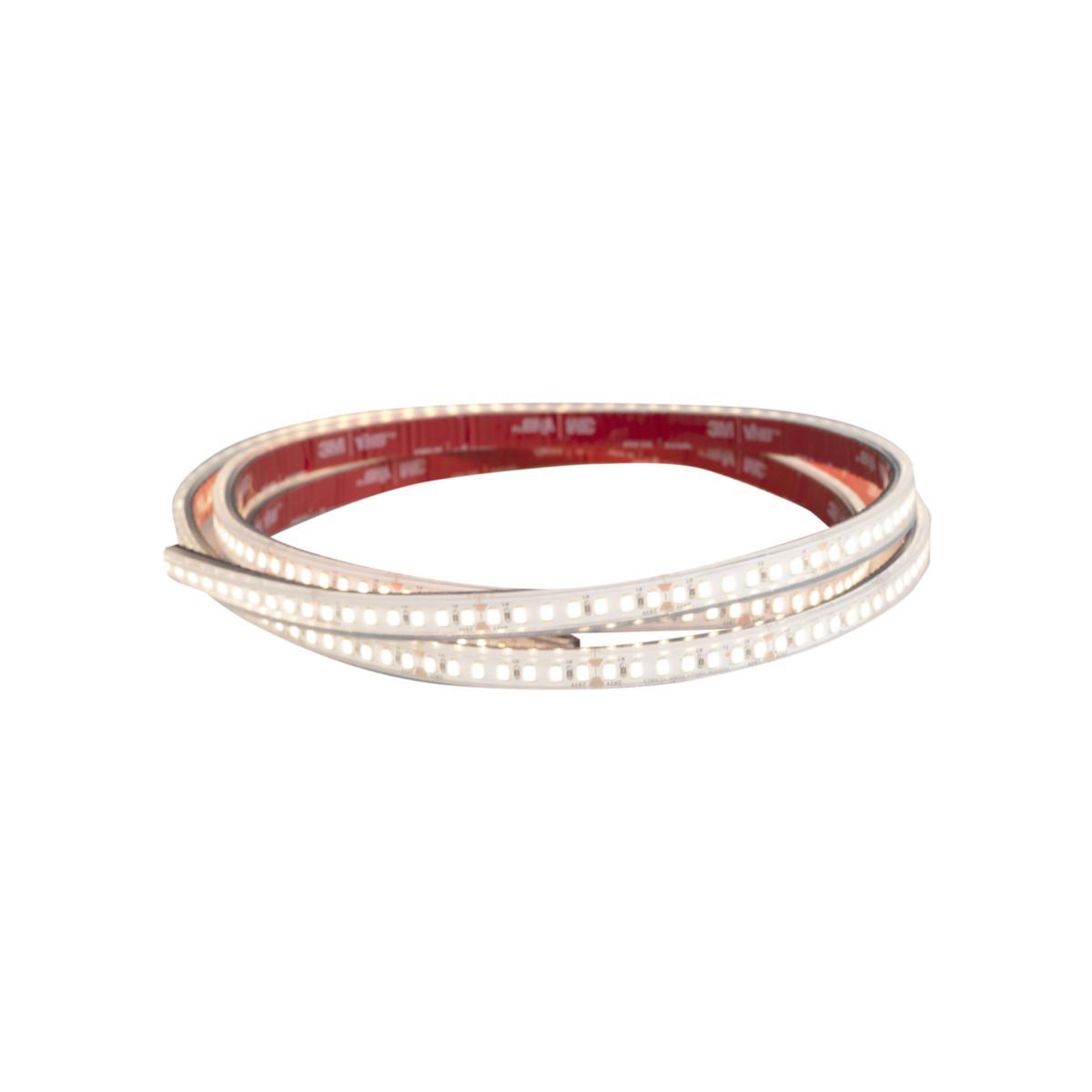

LEDstrip 24V Midlum, Hide-a-Lite
LEDstrip 24V IP67 Mid 930 5m
Article number: Suppl. article no:
7509846
4889
to see price and stock
Basic version of our 24V LED strip, with 120 LED / m you get a lot of light and good efficiency. The shorter distance between the diodes gives a homogeneous light with an opal cover even in lower profiles. Delivered in 5m lengths with self-adhesive tape, 2m connection cable, 1m extra connection cable and 2 10cm shrink tubing, 10 clips and 20 screws. Can also be made to measure in desired lengths, cutting interval 50mm and maximum length 10m. Drive device separate after desired fog technology and location.
- Article number: 7509846
- Suppl. article no: 4889
- Ean no: 7392971149707
- Material class QT7620
- This is an alternative to item 7502165
Technical data
- Packagin Size: 1 PCS/22 PCS
- Energy label: F
- Colour temperature: 3000 K
- Total length: 5000 mm
- Length of particular segments: 41 mm
- Lamp power per meter: 9.6 W
- Number of nodes per meter: 168
- Degree of protection (IP): IP67
- Width: 10 mm
- Height/depth: 5 mm
- Lamp voltage: 24 V
- Voltage type: DC
- Self-adhesive: Yes
- Beam angle: 120 °
- With connection set: Yes
- With end piece: Yes
- Lowest bending radius: 60 mm
- Model: Strip
- Type of control gear: LED operating device voltage-controlled
- Colour rendering index CRI: 90-100
- Luminous flux per meter: 1115 lm
- Colour of light: White
- Lamp type: LED not exchangeable
- With protective cover: Yes
- Mounting method: Surface mounting
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Protection class according to IEC 61140: III
- Type of wiring: Loop-through wiring included
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 79 %
- Colour of light adjustable: No
- Luminous flux adjustable: Continuously variable
- Suitable for dimmer: Yes
- Luminaire efficacy: 116.1 lm/W
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Connection type: Push-in clamp
- REACH Date: 2023-11-24
- REACH Information obligation: No
