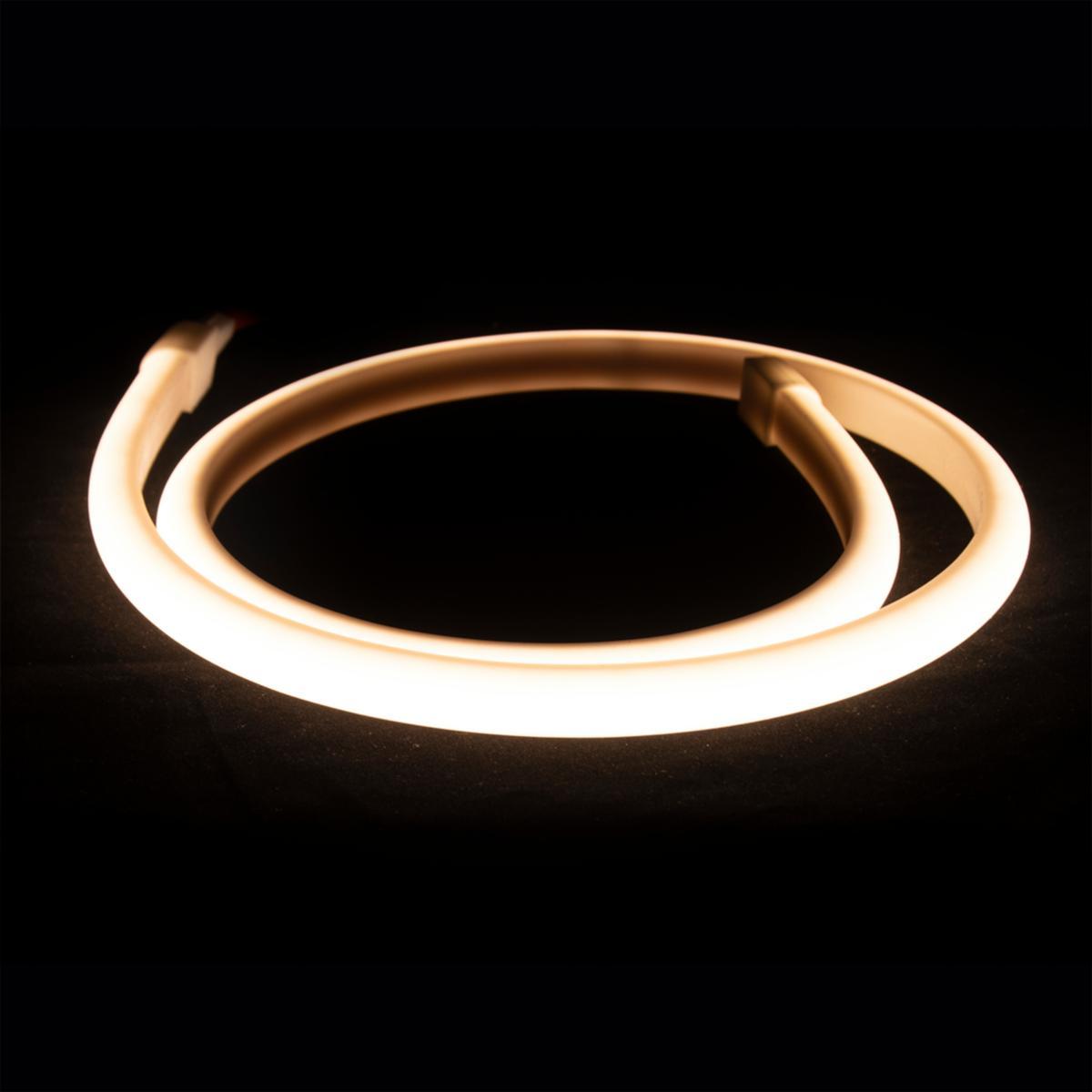

NEON Flex LED strip is designed to withstand extreme environments and can withstand temperatures between -40 to +100 degrees. This light strip is ideal for installation in places where lighting with LED technology was previously not possible. The product's unique properties mean that it suitable for installation in eg sauna, whirlpool, dust and can also withstand salt water Enclosed by a tight silicone cover with flat underside (IP68) NEON flex can be bent to be mounted against a rounded surface but does not work to bend sideways Light color 3000K with 180 diodes / m (one diode every 5.6 mm) Can be adjusted in length and cutable between every 3rd diode (every 17 mm). Must be operated with low voltage (constant voltage) 12VDC and can be fed from 2 directions when connecting strips more than 10m.
Dimensions: The list is 12mm wide, 11mm high and is delivered in a length of 6m.
Included in the package: The list is delivered with approx. 15cm cable for connection at both ends. The package also includes 3x 15cm cable, 3 sealing caps for connection,
3x tight connection for termination. The list is easily mounted with silicone stirrups (10 pcs) which are included in the package.
Dimensions: The list is 12mm wide, 11mm high and is delivered in a length of 6m.
Included in the package: The list is delivered with approx. 15cm cable for connection at both ends. The package also includes 3x 15cm cable, 3 sealing caps for connection,
3x tight connection for termination. The list is easily mounted with silicone stirrups (10 pcs) which are included in the package.
- Article number: 7507023
- Suppl. article no: DB-515
- Ean no: 7340123803304
- Material class QT764B
Technical data
- Energy label: G
- Type: DB-515
- Max. system power: 86.4 W
- Colour temperature: 3000 K
- Length: 6000 mm
- Lamp power per meter: 14.4 W
- Number of nodes per meter: 180
- Degree of protection (IP): IP68
- Width: 12 mm
- Height/depth: 11 mm
- Lamp voltage: 12 V
- Voltage type: DC
- Beam angle: 180 °
- With connection set: Yes
- With end piece: Yes
- Model: Strip
- Colour rendering index CRI: 80-89
- Luminous flux per meter: 1000 lm
- Colour of light: White
- Lamp type: LED not exchangeable
- Mounting method: Surface mounting/recessed mounting
- Rated lifetime L70/B50 at 25 °C: 50000 h
- REACH Date: 2021-10-19
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
