Hide-a-lite

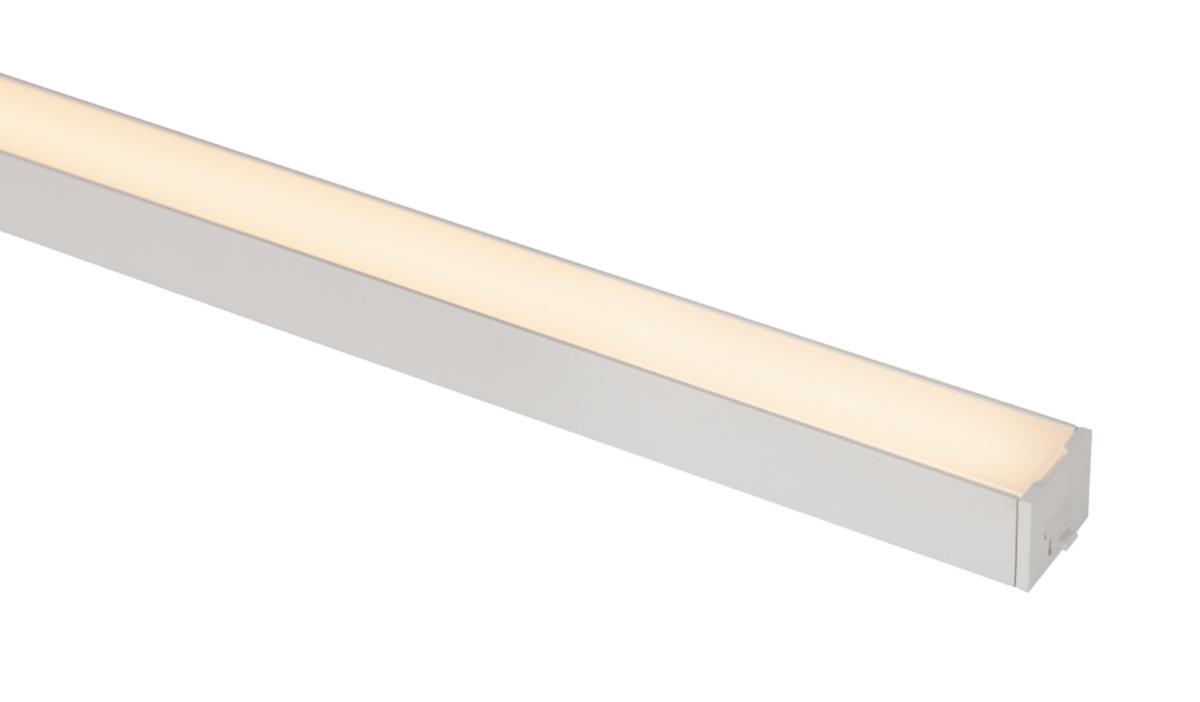

LED strip Extend G2, Hide-a-lite
LED STRIP EXTEND G2 30 2700K LEDLIST EXTEND G2 30 2700K
Article number: Suppl. article no:
7503987
7503987
to see price and stock
LED strip of white lacquered aluminum with high luminous flux, good color rendering and even homogeneous light. Fitted with double-sided adhesive tape and screws or with hidden clips. Perfect alternative to fluorescent lamps and spotlights as cabinet lighting. Can be linked up to 4m with link pins and / or link cables. Supplied with connection cable 2m, link cable 25cm, link pin and brackets. Connected to LED transformer 24VDC. LED Extend G2 Corner is available for 90 ° angles (50 mm). Accessible touch dimmer is available as an accessory.
- Article number: 7503987
- Suppl. article no: 7503987
- Ean no: 7392971132501
- Material class QT762A
Technical data
- Packagin Size: 1 ST/40 ST
- Max. system power: 3.9 W
- Colour temperature: 2700 K
- Total length: 300 mm
- Lamp power per meter: 12 W
- Number of nodes per meter: 112
- Degree of protection (IP): IP21
- Width: 19 mm
- Height/depth: 16 mm
- Lamp voltage: 24 V
- Voltage type: DC
- Self-adhesive: No
- Beam angle: 110 °
- With connection set: Yes
- With end piece: Yes
- Lowest bending radius: 0 mm
- Model: Strip
- Number of nodes per foot: 34
- Number of poles: 2
- Type of control gear: LED operating device voltage-controlled
- Colour rendering index CRI: 90-100
- Lamp power per foot: 4 W
- Luminous flux per meter: 820 lm
- Colour of light: White
- Lamp type: LED not exchangeable
- With protective cover: Yes
- Mounting method: Surface mounting
- Rated lifetime L70/B50 at 25 °C: 90000 h
- Protection class according to IEC 61140: III
- Type of wiring: Loop-through wiring included
- Connection type: Blade terminal
- REACH Date: 2022-06-01
- Energy efficiency class of the built-in lamp: A++, A+, A (LED)
- REACH Information obligation: No
