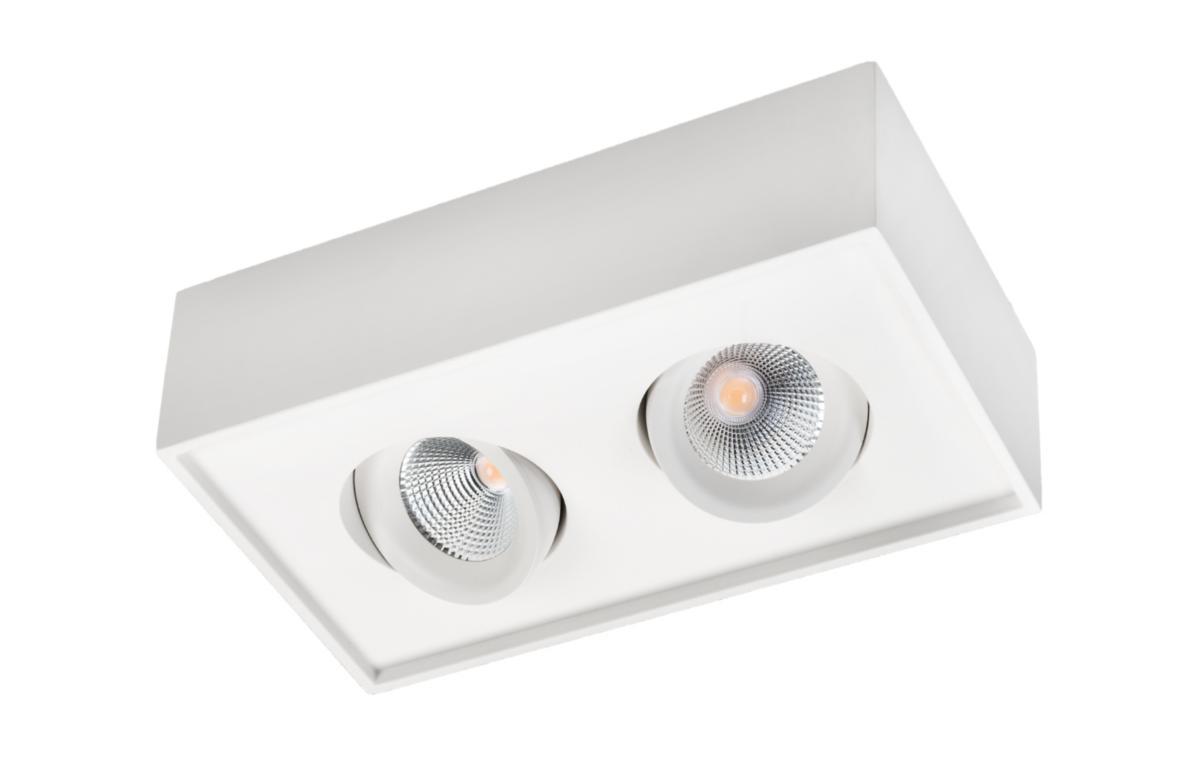

Downlight Cube Lux
Cube Lux 2x White 3000K
Article number: Suppl. article no:
7473154
902549
to see price and stock
Effective surface-mounted downlight for indoor and outdoor can be directed 30 ° in all directions in a 360 ° stepless slope. Can be mounted thick roof or against roof box. Quick coupling between luminaire housing and ceiling mount. The luminaire housing is clicked firmly and secured completely by two concealed screws on the sides with the Allen key.
- Article number: 7473154
- Suppl. article no: 902549
- Ean no: 7021989025498
- Material class QT4420
Technical data
- Packagin Size: 1 PCS/10 PCS/200 PCS
- Design: 2x8 W
- Max. system power: 16 W
- Rated luminous flux according to IEC 62722-2- 1: 1180 lm
- Colour temperature: 3000 K
- Housing colour: White
- Surface brushed: No
- Beam angle: 41-80° - Wide beam
- Height/depth: 65 mm
- Lamp type: LED not exchangeable
- Adjustability: Swivelling
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Reflector: High-gloss
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 3
- Dimming phase cut-off (trailing edge): Yes
- Width: 132 mm
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Power factor: 0.9
- Photobiological safety according to EN 62471: RG1
- Filament test according to IEC 60695-2-11: None
- Material cover: Glass transparent
- Degree of protection (IP): IP21
- Dimmable: Yes
- Degree of protection (IP), rear side: IP21
- Lamp holder: None
- Conductor cross section: 1 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: I
- Light distributor: Other
- Light outlet: Direct
- Luminaire efficacy: 74 lm/W
- Suitable for number of light sources: 2
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: No
- Suitable for clamp-mounting: No
- Suitable for lamp power: 7 W
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: Yes
- Length: 231 mm
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 230 V
- Voltage type: AC
- Suitable for ceiling mounting: Yes
- Degree of protection (NEMA): Other
- Impact strength: IK00
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-2.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM1
- Covering of the luminaire with thermally insulating material possible: No
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 90 %
- Failure rate at median useful life of 100,000 h at 25 °C ambient (tq): 10 %
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 84
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 84
- IFTTT support available: No
- Unified Glare Ratio (UGR): 22
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Connection type: Push-in clamp
- Luminous flux: 1000-1500 lm
- REACH Date: 2022-08-29
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
- Emergency power supply integrated: No
