Spotlight Optic Spot XS and XXS

Spotl Optic Spot XS 36° White
Article number:
7452817
Suppl. article no:
7452817





 to see price and stock

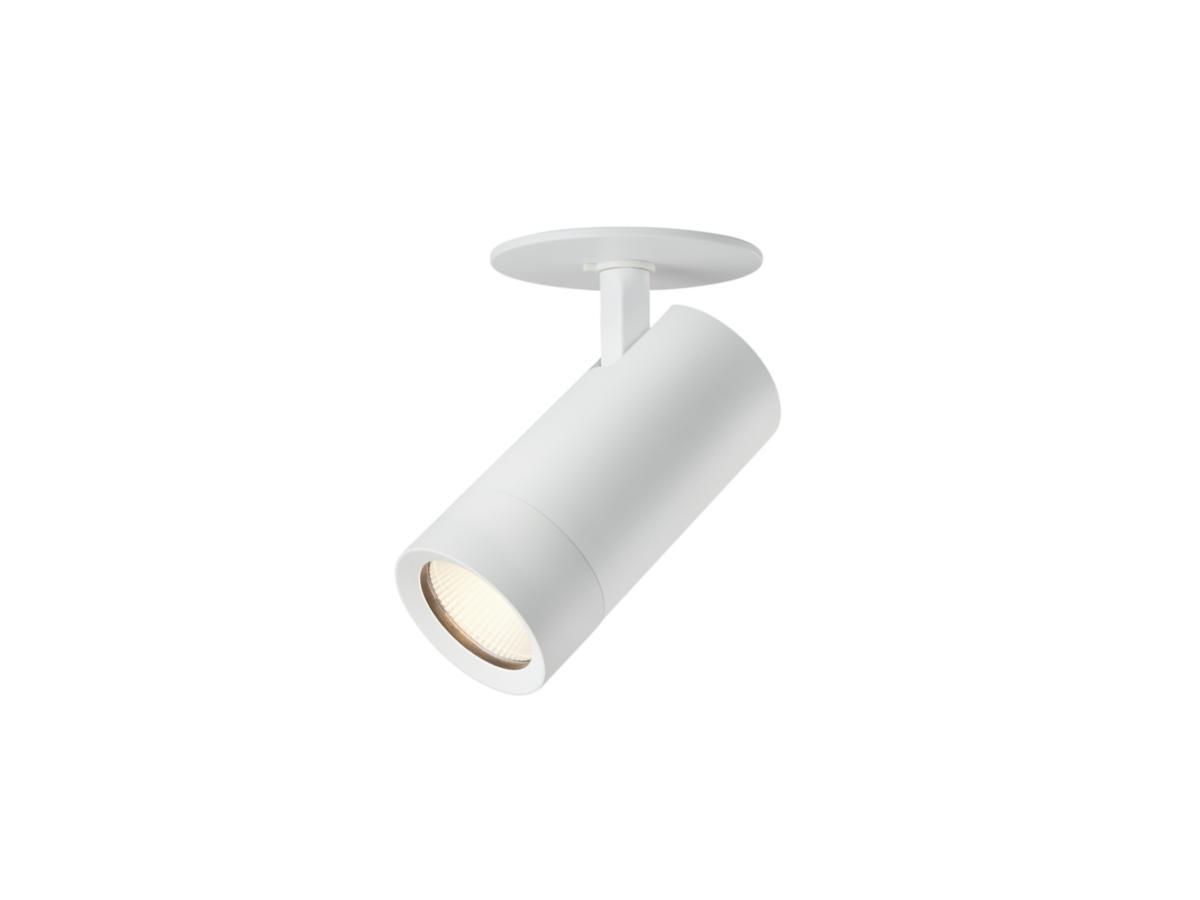

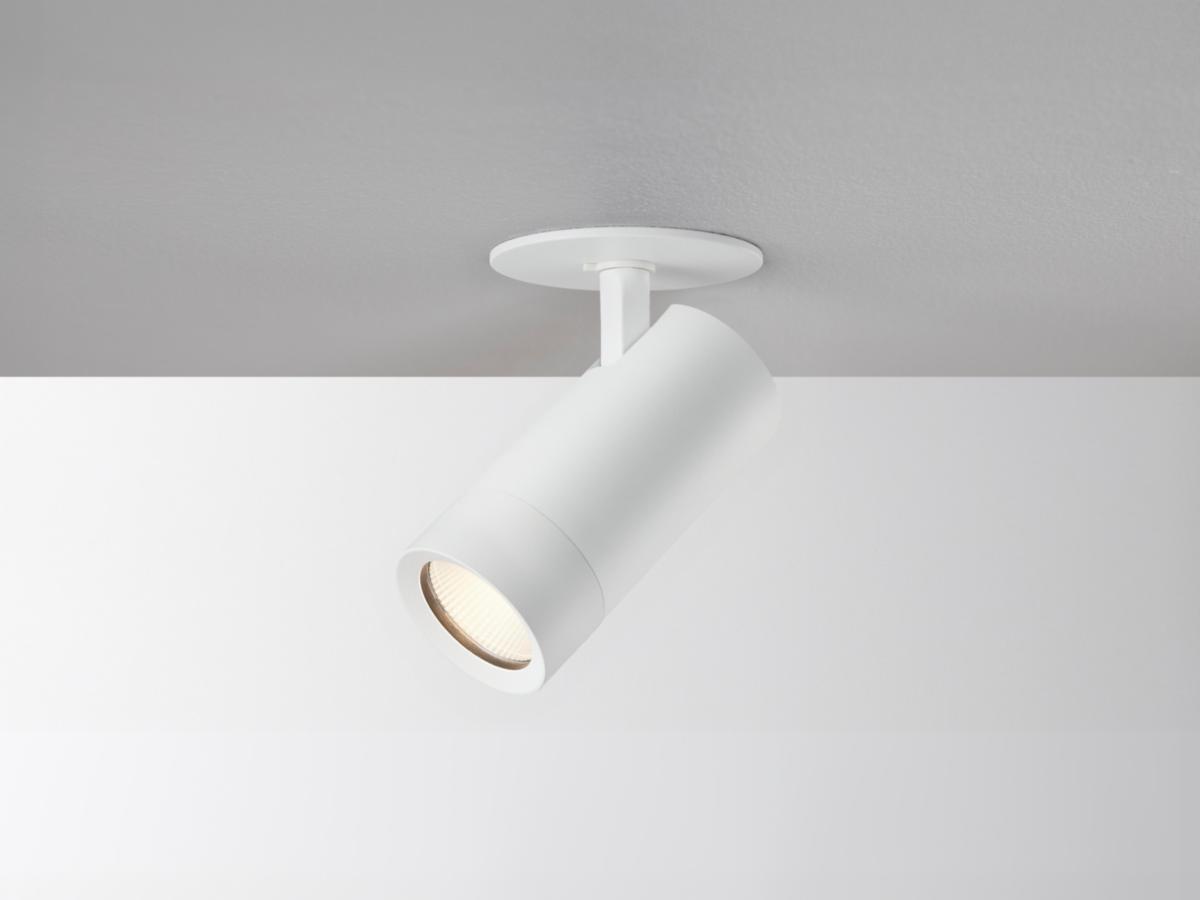

Discreet, compact and well-blinded spotlight with bracket for recessed mounting in ceiling. 230V luminaire with integrated phase dimmable driver. Interchangeable LED and driver – built for the future. Directible 90° and rotatable 355° – mounting the luminaire in sloping ceilings makes it easier to direct the light towards selected surfaces, such as walls or paintings, which gives better results than with recessed downlights. Via the DIP-Switch color temp function, the color temperature is easily adjusted with a push of a button directly on the back of the luminaire. Our luminaires with reflector technology are optimized to create a well-dazzled and sharp light image that directs the light to what you want to highlight. For increased glare reduction, the luminaires can be supplemented with the Honeycomb accessory. Easily replace the reflector with a lens accessory to adjust the light pattern as needed.
  • Article number:
    7452817
  • Suppl. article no:
    7452817
  • Ean no:
    7392971151250
  • Material class
    QT4320
  • This is an alternative to item
    7451558
Technical data
  • Packagin Size: 1 PCS/18 PCS/270 PCS
  • Max. system power: 9.7 W
  • Rated luminous flux according to IEC 62722-2- 1: 770 lm
  • Colour temperature: 2700-3000 K
  • Housing colour: White
  • Housing material: Aluminium
  • Type of control gear: LED operating device current-controlled
  • With control gear: Yes
  • Outer diameter: 60 mm
  • Length: 130 mm
  • Beam angle: 21-40° - Medium beam
  • Degree of protection (IP): IP20
  • Protection class according to IEC 61140: II
  • Reflector: High-gloss
  • Colour rendering index CRI: 90-100
  • Adjustability: Rotating and swivelling
  • Colour of light: White
  • Light distribution: Symmetric
  • Lamp type: LED exchangeable
  • Connectable conductor cross section: 0.5-2.5 mm²
  • Number of poles: 3
  • Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 81 %
  • Dimmable: Yes
  • Dimming 0-10 V: No
  • Dimming 1-10 V: No
  • Dimming DALI: No
  • Dimming DALI-2: No
  • Dimming phase cut-off (trailing edge): Yes
  • Dimming phase cut-on (leading edge): No
  • Total harmonic distortion (THD): 0.16
  • Flickering value Pst LM: 0.01
  • Colour consistency (McAdam ellipse): SDCM3
  • Filament test according to IEC 60695-2-11: 650 °C - 30 s
  • Height/depth: 127 mm
  • Beam angle adjustable: No
  • Colour of light adjustable: Positions
  • Constant light output (CLO): No
  • Lamp holder: None
  • Luminous flux adjustable: Continuously variable
  • Light distributor: Reflector
  • Luminous intensity: 2000 cd
  • Luminaire efficacy: 79 lm/W
  • Light outlet: Direct
  • Suitable for number of light sources: 1
  • Suitable for built-in mounting: Yes
  • Suitable for clamp-mounting: No
  • Suitable for low voltage cable system: No
  • Suitable for pedestal/floor mounting: No
  • Suitable for suspended mounting: No
  • Suitable for light-track mounting: No
  • Suitable for ceiling mounting: Yes
  • Suitable for traverse mounting: No
  • Suitable for surface mounting: Yes
  • Max. number of luminaires per miniature circuit breaker B16 (MCB): 75
  • Max. number of luminaires per miniature circuit breaker C16 (MCB): 125
  • With light source: Yes
  • With light sensor: No
  • With movement sensor: No
  • Nominal voltage: 220-240 V
  • Rated lifetime L70/B50 at 25 °C: 100000 h
  • Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
  • Voltage type: AC
  • Stroboscope effect value SVM: 0.01
  • Type of wiring: Suitable for loop-through wiring
  • Exchangeable control gear: Yes
  • Suitable for wall mounting: No
  • Surface protection: Lacquered
  • Energy efficiency class of the light source according to EU regulation 2019/2015: F
  • Reflector colour: Silver
  • Connection type: Push-in clamp
  • REACH Date: 2024-04-09
  • REACH Information obligation: No
