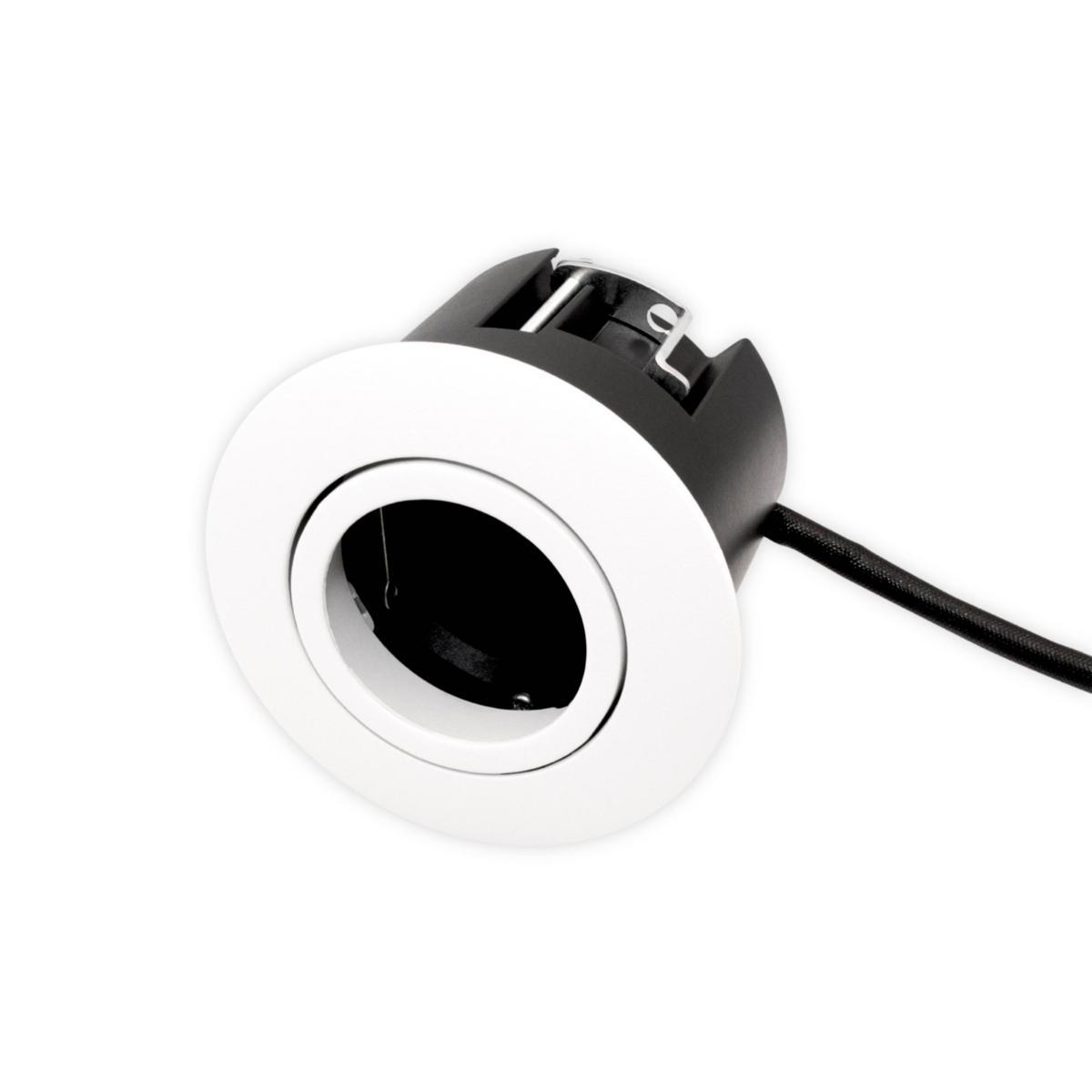

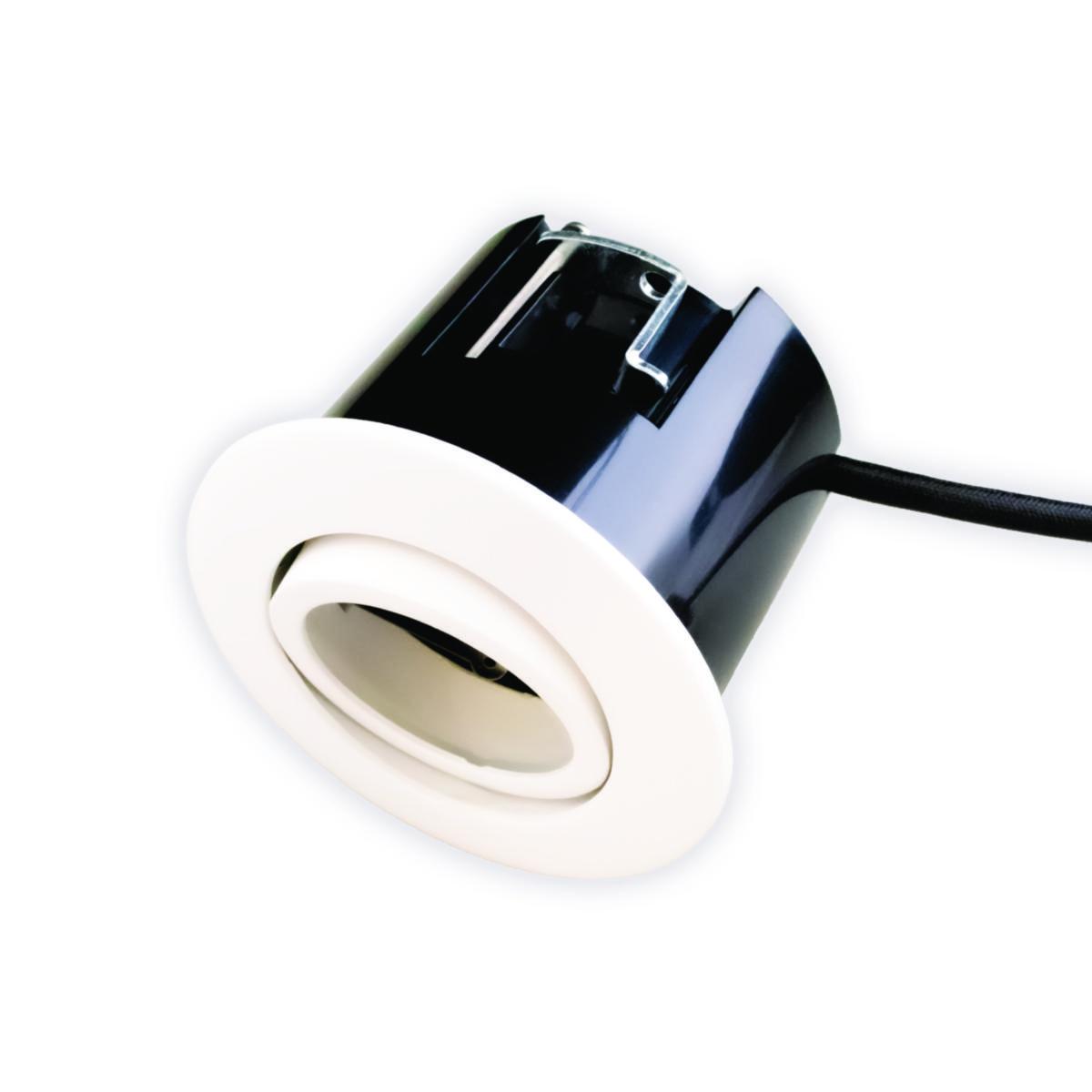

Downlight Luna QI excluding light source - DL Luna QI 2 White in/out
/external-assets/JPEGlarge800_800/44/40/ProductImage78114440.jpg
/external-assets/JPEGlarge800_800/20/44/ProductImage78852044.jpg
/external-assets/JPEGlarge800_800/20/45/ProductImage78852045.jpg
Scan Products

Downlight Luna QI excluding light source

DL Luna QI 2 White in/out
Article number:
7477583
Suppl. article no:
10041
‌
‌
‌
‌
‌
 to see price and stock

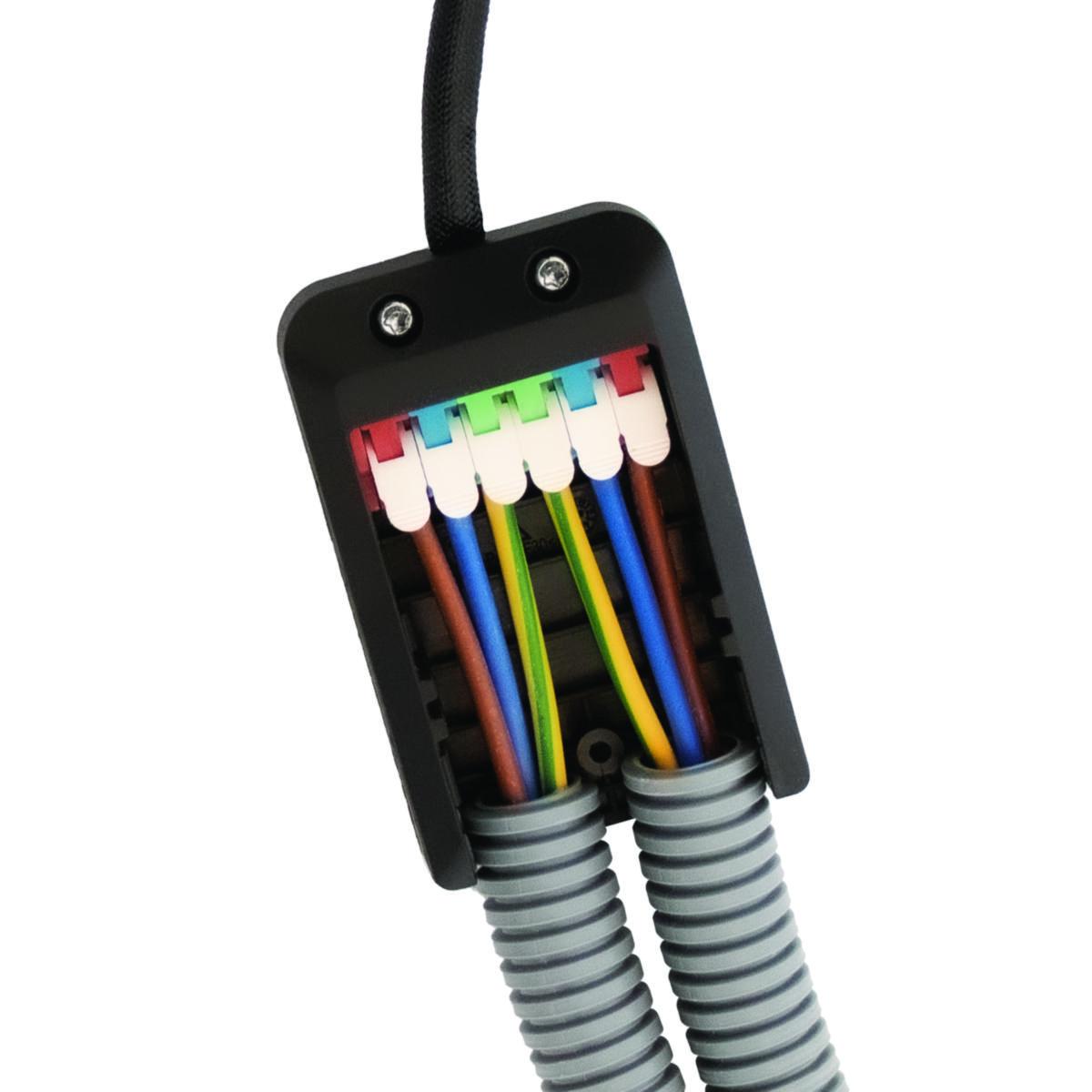

Luna Quick install 2.0 is an adjustable downlight, with a rear-mounted light source, approved for installation directly in insulation and flammable materials. The smart connection box, with a height of only 20 mm, allows the connection of both cable and flexible hose. The new quick-release clamps make installation a breeze without sore fingers. Luna Quick install 2.0 is installed using screws and is also suitable for acoustic ceilings. The installation depth of only 63 mm ensures many application possibilities. Luna Quick install 2.0 is IP44 and is suitable for both indoor and outdoor installation and directly in insulation.
  • Article number:
    7477583
  • Suppl. article no:
    10041
  • Ean no:
    5713080100410
  • Replaces art.nbr:
    7461748 7476951
  • Material class
    QT4370
Technical data
  • Packagin Size: 1 PCS/40 PCS
  • Housing colour: White
  • Surface brushed: No
  • Dimming DALI: No
  • Dimming DALI-2: No
  • Outer diameter: 88 mm
  • Built-in diameter: 75 mm
  • Built-in height: 63 mm
  • Lamp type: LED exchangeable
  • Adjustability: Swivelling
  • With light source: No
  • With control gear: No
  • Type of control gear: Not required
  • Reflector: None
  • Housing material: Aluminium
  • Suitable for workplace according to EN 12464-1: No
  • Number of poles: 3
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
  • Dimming with push-button: No
  • Dimming Sine Wave Reduction: No
  • Dimming mains voltage modulation: No
  • Dimming 0-10 V: No
  • Dimming 1-10 V: No
  • Dimming DMX: No
  • Dimming DSI: No
  • Dimming LineSwitch: No
  • Dimming RF: No
  • Dimming Zigbee: No
  • Dimming potentiometer (integrated): No
  • Dimming programmable: No
  • Dimming manufacturer's proprietary system: No
  • Dimming phase cut-on (leading edge): No
  • Dimmable: Yes
  • Degree of protection (IP), front side: IP44
  • Lamp holder: GU10
  • Conductor cross section: 1.5 mm²
  • Protection class according to IEC 61140: II
  • Light distributor: None
  • Light outlet: Direct
  • Suitable for number of light sources: 1
  • Suitable for built-in mounting: Yes
  • Suitable for clamp-mounting: No
  • Suitable for lamp power: 3-6 W
  • Suitable for low voltage cable system: No
  • Suitable for pedestal/floor mounting: No
  • Suitable for suspended mounting: No
  • Suitable for light-track mounting: No
  • Suitable for traverse mounting: No
  • Suitable for wall mounting: No
  • Suitable for surface mounting: Yes
  • With light sensor: No
  • With movement sensor: No
  • Nominal voltage: 220-240 V
  • Voltage type: AC
  • Suitable for ceiling mounting: Yes
  • Dimming Touch and Dim: No
  • Type of wiring: Suitable for loop-through wiring
  • Connectable conductor cross section: 1.5 mm²
  • Surface protection: Powder coating
  • Covering of the luminaire with thermally insulating material possible: Yes
  • Exchangeable control gear: No
  • Connection type: Push-in clamp
  • With presence detector: No
  • REACH Date: 2025-03-28
  • REACH Information obligation: No
