Philips
Downlight Ledinaire Spot
RS071B 5S/827_30_40 40D PSR PI
Article number: Suppl. article no:
7477352
929003322502
to see price and stock

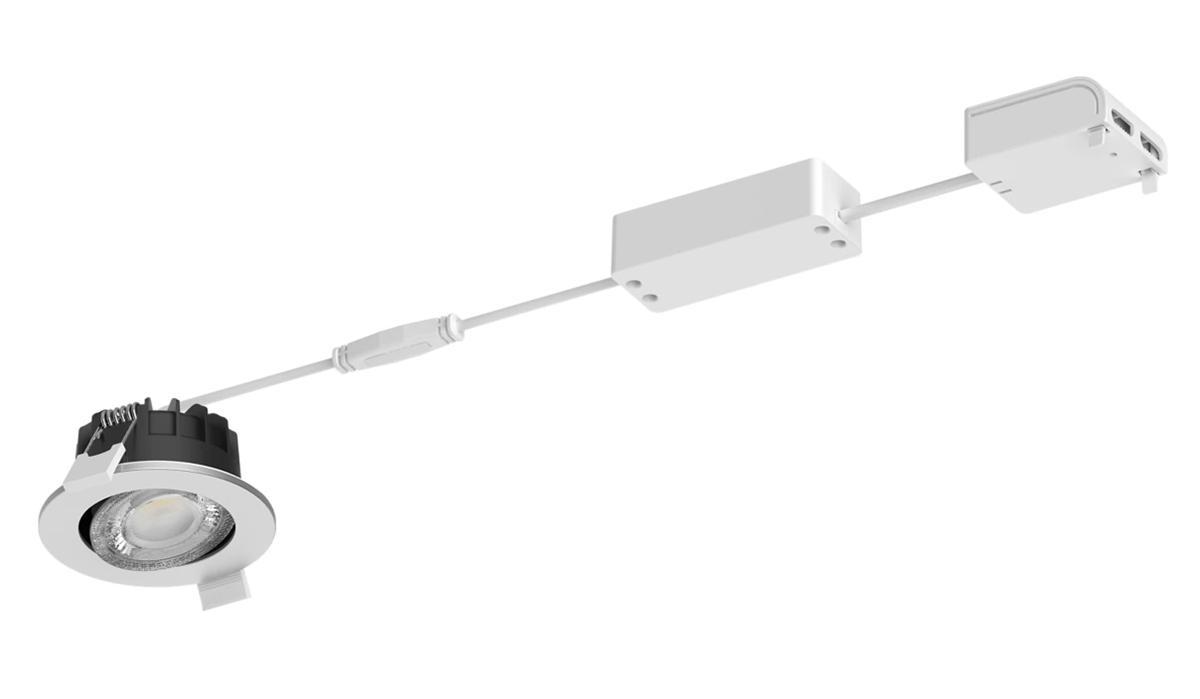

Dimmable recessed LED spot. Adjustable light direction. Adjustable light color temperature 2700K/3000K/4000K. Installation recessed ceiling or directly against insulation. Quick connection via DC plug between luminaire and external drive. Over-connection via quick terminals 3x2.5mm2 in connection box. IP65 from below, IP20 from above. Cover frame in gold and silver as an accessory. Lifespan 50,000 hours at L65.
- Article number: 7477352
- Suppl. article no: 929003322502
- Ean no: 8720169208827
- Material class QT4340
Technical data
- Packagin Size: 1 PCS/12 PCS/576 PCS
- Max. system power: 6 W
- Rated luminous flux according to IEC 62722-2- 1: 550 lm
- Colour temperature: 2700-4000 K
- Housing colour: White
- Surface brushed: No
- Beam angle: 21-40° - Medium beam
- Dimming DALI: No
- Dimming DALI-2: No
- Outer diameter: 89 mm
- Built-in diameter: 68 mm
- Built-in height: 41 mm
- Height/depth: 43 mm
- Lamp type: LED not exchangeable
- Adjustability: Rotatable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 940 cd
- Reflector: None
- Housing material: Other
- Suitable for workplace according to EN 12464-1: Yes
- Number of poles: 2
- Dimming phase cut-off (trailing edge): No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming with push-button: No
- Dimming Sine Wave Reduction: No
- Dimming mains voltage modulation: No
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming potentiometer (integrated): No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Rated ambient temperature according to IEC 62722-2-1: -20-40 °C
- Total harmonic distortion (THD): 0.2 %
- Power factor: 0.9
- Photobiological safety according to EN 62471: RG1
- Dimming phase cut-on (leading edge): Yes
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Material cover: Plastic, transparent
- Degree of protection (IP): IP20
- Dimmable: Yes
- Lamp holder: None
- Conductor cross section: 0.75 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Focal lens
- Light outlet: Direct
- Luminaire efficacy: 91 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 80-89
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Suitable for ceiling mounting: Yes
- Impact strength: IK03
- Dimming Touch and Dim: No
- Type of wiring: Ending
- Connectable conductor cross section: 0.75-2.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM5
- Covering of the luminaire with thermally insulating material possible: Yes
- Flickering value Pst LM: 0.1
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: Continuously variable
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 240
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 306
- IFTTT support available: No
- Stroboscope effect value SVM: 0.4
- Unified Glare Ratio (UGR): 21
- Exchangeable control gear: No
- Operation by Bluetooth: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Reflector colour: Other
- Nominal current: 30 mA
- Connection type: Insulation displacement connector
- Luminous flux: 500 lm
- REACH Date: 2024-08-12
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
- Emergency power supply integrated: No
