Plejd

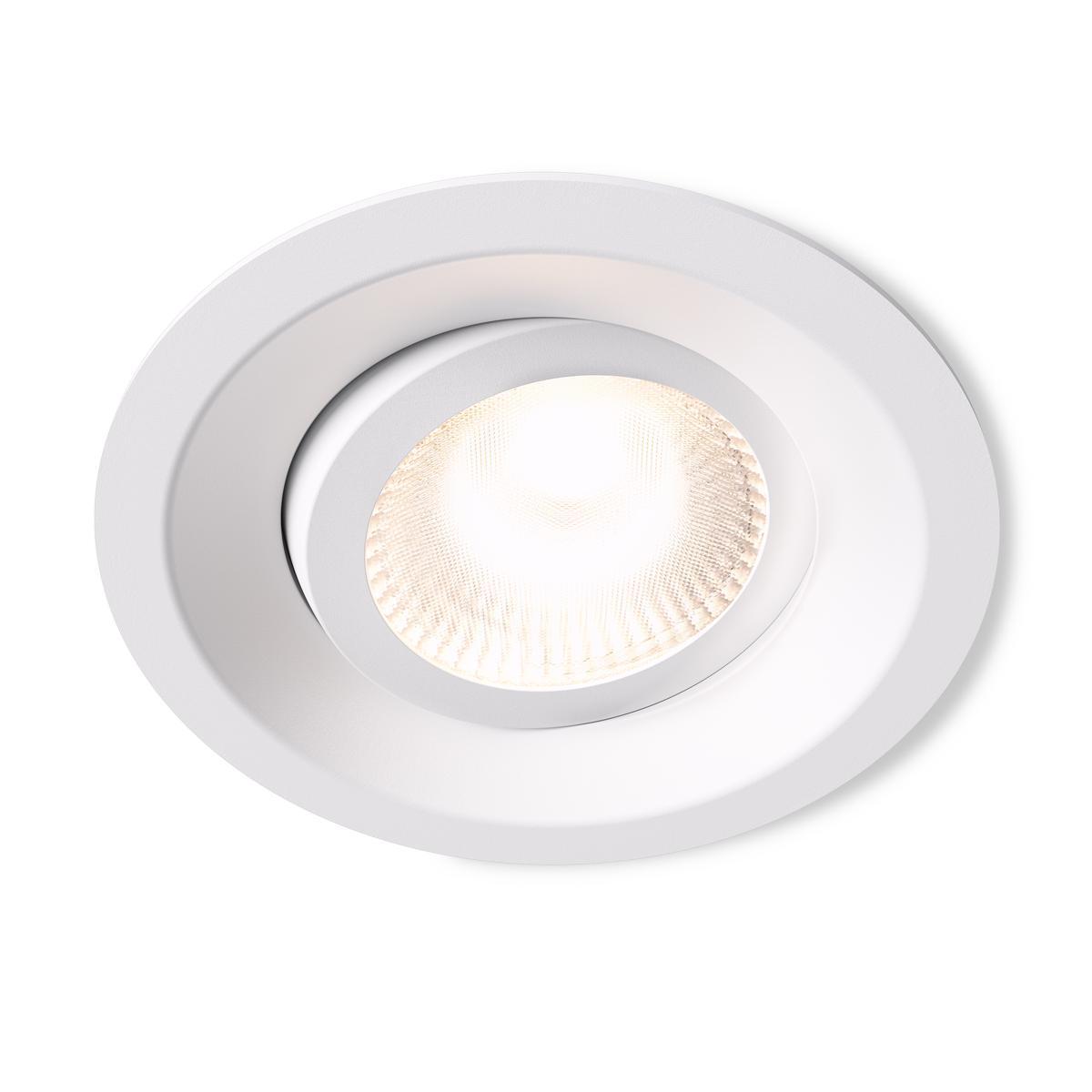

Downlight DWN-01 tiltable
Downlight Tilt White
Article number: Suppl. article no:
7476990
DWN-01-W
to see price and stock
DWN-01 is a smart, tunable downlight with built-in dimmer function. No external dimmer should be used. The light source in Downlight Tilt can be angled sideways to vary the lighting in the room. The product can be grouped wirelessly and controlled via the app, other products from Plejd or a wired push button. The DWN-01 has adjustable color temperature and can be set to a fixed temperature or dim to warm.
- Article number: 7476990
- Suppl. article no: DWN-01-W
- Ean no: 7330018013000
- Material class QT4470
Technical data
- Packagin Size: 1 PCS/18 PCS
- Max. system power: 8 W
- Rated luminous flux according to IEC 62722-2- 1: 1-515 lm
- Colour temperature: 2200-4000 K
- Housing colour: White
- Beam angle: 21-40° - Medium beam
- Outer diameter: 94 mm
- Built-in diameter: 83 mm
- Built-in width: 83 mm
- Built-in height: 28-40 mm
- Lamp type: LED not exchangeable
- Adjustability: Rotating and swivelling
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Luminous intensity: 1-900 cd
- Housing material: Aluminium
- Dimming with push-button: Yes
- Dimming manufacturer's proprietary system: Yes
- Total harmonic distortion (THD): 45 %
- Rated ambient temperature according to IEC 62722-2-1: -25-35 °C
- Power factor: 0.9
- Filament test according to IEC 60695-2-11: 650 °C - 30 s
- Material cover: Without cover
- Degree of protection (IP): IP44
- Dimmable: Yes
- Degree of protection (IP), front side: IP44
- Degree of protection (IP), rear side: IP20
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Focal lens
- Luminaire efficacy: 76 lm/W
- Colour rendering index CRI: 90-100
- Nominal voltage: 220-240 V
- Voltage type: AC
- Rated lifetime L70/B50 at 25 °C: 60000 h
- Suitable for ceiling mounting: Yes
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.75-2.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM3
- Covering of the luminaire with thermally insulating material possible: Yes
- Flickering value Pst LM: 0.12
- Beam angle adjustable: No
- Colour of light adjustable: Continuously variable
- Compatible with Amazon Alexa: Yes
- Compatible with Apple HomeKit: Yes
- Compatible with Google Assistant: Yes
- Luminous flux adjustable: Continuously variable
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 420
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 420
- Stroboscope effect value SVM: 0.08
- Unified Glare Ratio (UGR): 22
- Exchangeable control gear: No
- Operation by Bluetooth: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Nominal current: 1-40 mA
- Connection type: Push-in clamp
- Luminous flux: 1-515 lm
- REACH Date: 2023-10-05
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
