Downlight Aspect Exterior
DOWNLIGHT GU10 EXT MED BOX VIT
Article number:
7476952
to see price and stock

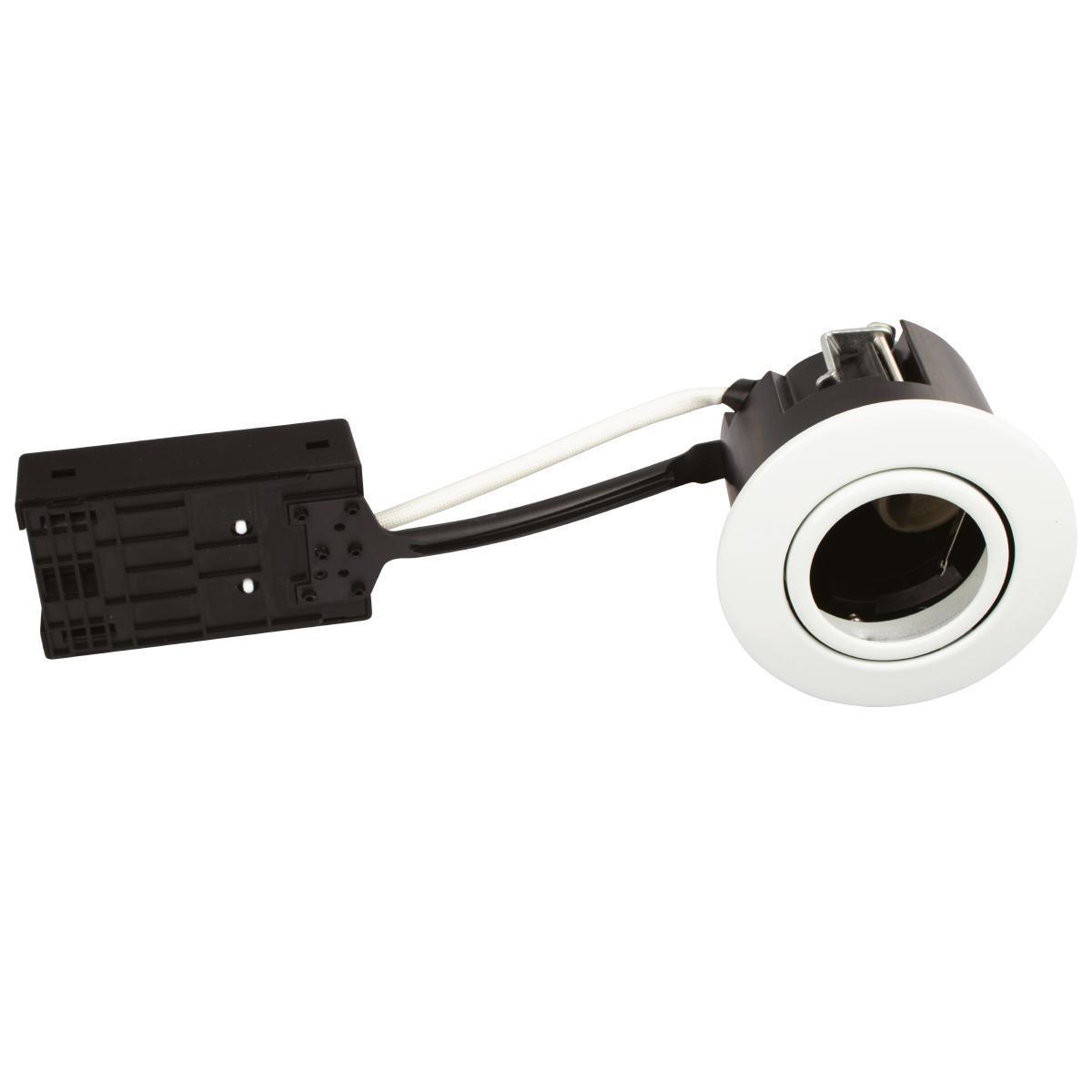

Adjustable downlight that can be mounted directly against insulation or combustible material. Enclosure and junction box in plastic, front in acid-proof stainless steel. LED reflector lamp with GU10 socket and power up to 6W can be used. Can be mounted in eaves or canopy. Connects in connection box for cable or flex pipe. Screwless strain relief and quick release clamps.
- Article number: 7476952
- Ean no: 7333123853646
- Material class QT4300
Technical data
- Packagin Size: 1 PCS/40 PCS
- Housing colour: White
- Surface brushed: No
- Outer diameter: 88 mm
- Built-in diameter: 75 mm
- Built-in height: 63 mm
- Adjustability: Swivelling
- With light source: No
- Type of control gear: Not required
- Housing material: Stainless steel
- Number of poles: 3
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Degree of protection (IP): IP44
- Lamp holder: GU10
- Conductor cross section: 1.5 mm²
- Light outlet: Direct
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for lamp power: 3-6 W
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Suitable for ceiling mounting: Yes
- Surface protection: Powder coating
- Covering of the luminaire with thermally insulating material possible: Yes
- Connection type: Push-in clamp
