Downlight Aspect
DOWNLIGHT GU10 MED BOX VIT
Article number:
7476951
to see price and stock

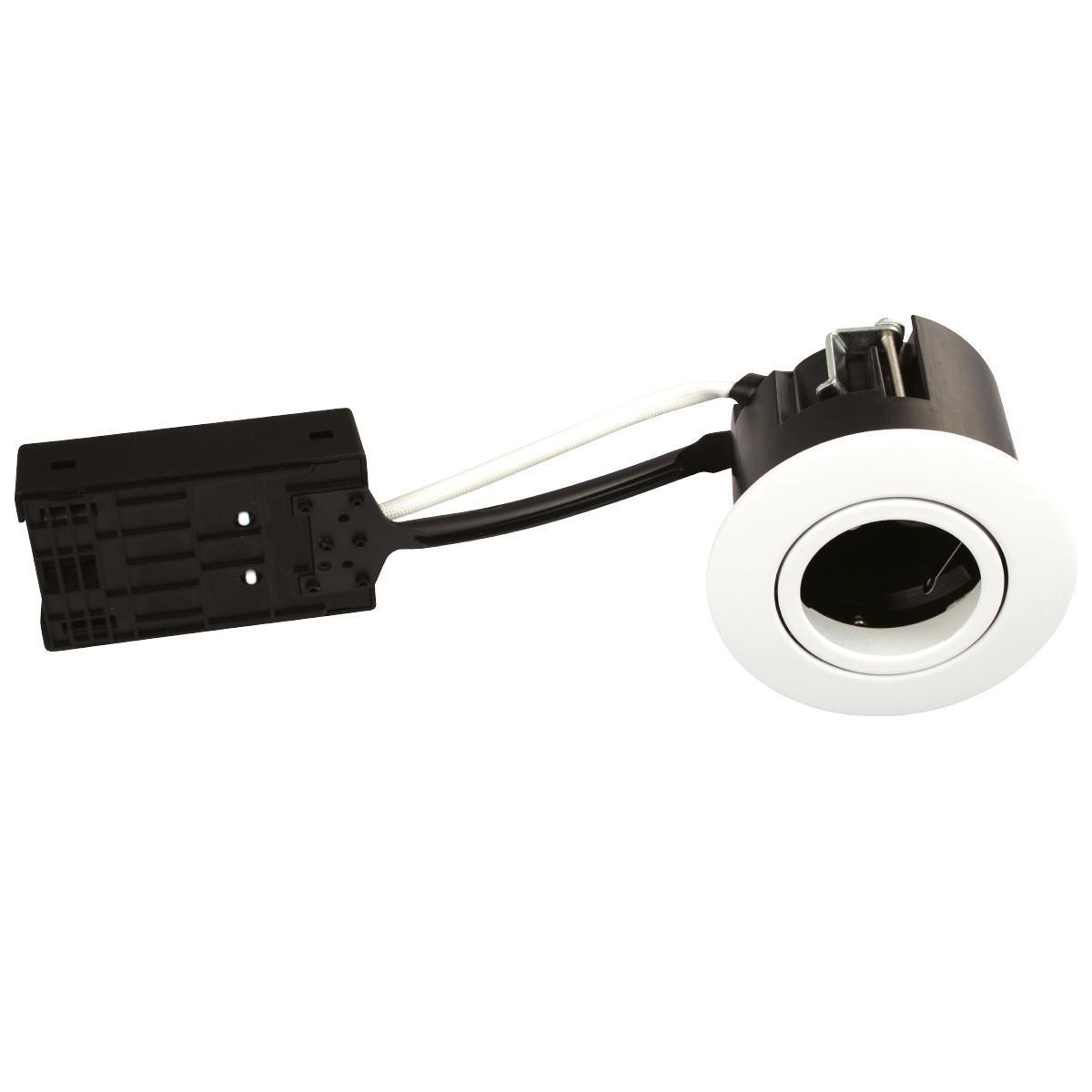

Adjustable downlight that can be mounted directly against insulation or combustible material. Enclosure and junction box in plastic, front in powder-coated aluminium. LED reflector lamp with GU10 socket and maximum power of 6W can be used. Can be installed in a plaster ceiling or suspended ceiling slab. Connects in connection box for cable or flex pipe. Screwless strain relief and quick release clamps.
- Article number: 7476951
- Ean no: 7333123853639
- Replaces art.nbr: 7461748
- Material class QT4300
Technical data
- Packagin Size: 1 PCS/40 PCS
- Housing colour: White
- Surface brushed: No
- Outer diameter: 88 mm
- Built-in diameter: 75 mm
- Built-in height: 63 mm
- Adjustability: Swivelling
- With light source: No
- With control gear: No
- Type of control gear: Not required
- Housing material: Aluminium
- Number of poles: 3
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Degree of protection (IP): IP44
- Lamp holder: GU10
- Conductor cross section: 1.5 mm²
- Protection class according to IEC 61140: II
- Light outlet: Direct
- Suitable for number of light sources: 1
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for lamp power: 3-6 W
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-240 V
- Voltage type: AC
- Suitable for ceiling mounting: Yes
- Surface protection: Powder coating
- Covering of the luminaire with thermally insulating material possible: Yes
- REACH Date: 2025-04-04
- REACH Information obligation: No
