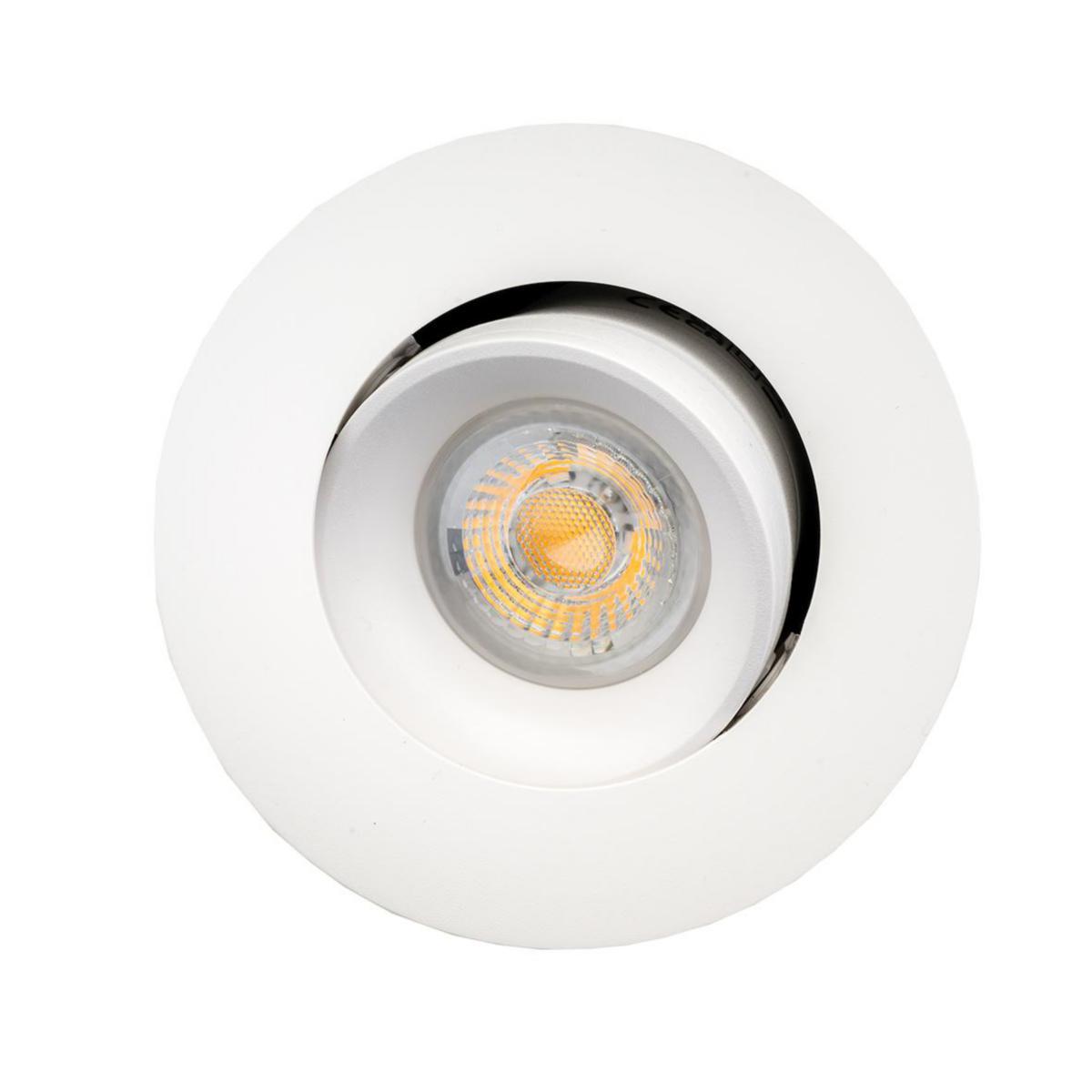

Downlight Junistar Bio
Junistar Bio White 3000K
Article number: Suppl. article no:
7476835
905251
to see price and stock
Junistar Bio has been developed with a focus on sustainability and is made from biocircular material, produced from waste and residues of biological origin. It also requires less material than a traditional downlight: around 40% weight reduction. Junistar Bio sets a new standard for easy installation of downlights. Patent-pending new spring solution minimizes installation time. Can be installed in 48 mm battens in all board thicknesses from 2 mm and up, directly in the insulation or in a downlight box. If necessary, it can be dismantled just as easily. Supplied with connection box with strain relief for several cable types, as well as attachment for flex pipes. Extremely efficient downlight with high light quality without flickering. It is dimmable with a rear edge dimmer and can be angled 25° in steps in two directions. A project winner that comes in an 8-pack.
- Article number: 7476835
- Suppl. article no: 905251
- Ean no: 7021989052517
- Material class QT4420
Technical data
- Packagin Size: 1 FRP/6 FRP/48 FRP/120 FRP
- Max. system power: 5 W
- Rated luminous flux according to IEC 62722-2- 1: 520 lm
- Colour temperature: 3000 K
- Housing colour: White
- Beam angle: 41-80° - Wide beam
- Outer diameter: 94 mm
- Built-in diameter: 83 mm
- Built-in height: 56 mm
- Height/depth: 59 mm
- Lamp type: LED not exchangeable
- Adjustability: Swivelling
- With light source: Yes
- Colour of light: White
- Type of control gear: Not required
- Reflector: High-gloss
- Housing material: Plastic
- Number of poles: 2
- Dimming phase cut-off (trailing edge): Yes
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Photobiological safety according to EN 62471: RG1
- Cover material: Glass, transparent
- Degree of protection (IP): IP44
- Dimmable: Yes
- Degree of protection (IP), front side: IP44
- Degree of protection (IP), rear side: IP20
- Lamp holder: None
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Focal lens
- Light outlet: Direct
- Luminaire efficacy: 84 lm/W
- Suitable for number of light sources: 1
- Suitable for built-in mounting: Yes
- Colour rendering index CRI: 90-100
- Suitable for lamp power: 5 W
- Nominal voltage: 220-240 V
- Voltage type: AC
- Suitable for ceiling mounting: Yes
- Type of wiring: Suitable for loop-through wiring
- Colour consistency (McAdam ellipse): SDCM2
- Covering of the luminaire with thermally insulating material possible: Yes
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 80 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 20 %
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 112
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 190
- Unified Glare Ratio (UGR): 22
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Connection type: Push-in clamp
- REACH Date: 2024-08-23
- GWP-tot (A1-A3): 4,3295 kgCO2e/FRP
- REACH Information obligation: No
