Designlight

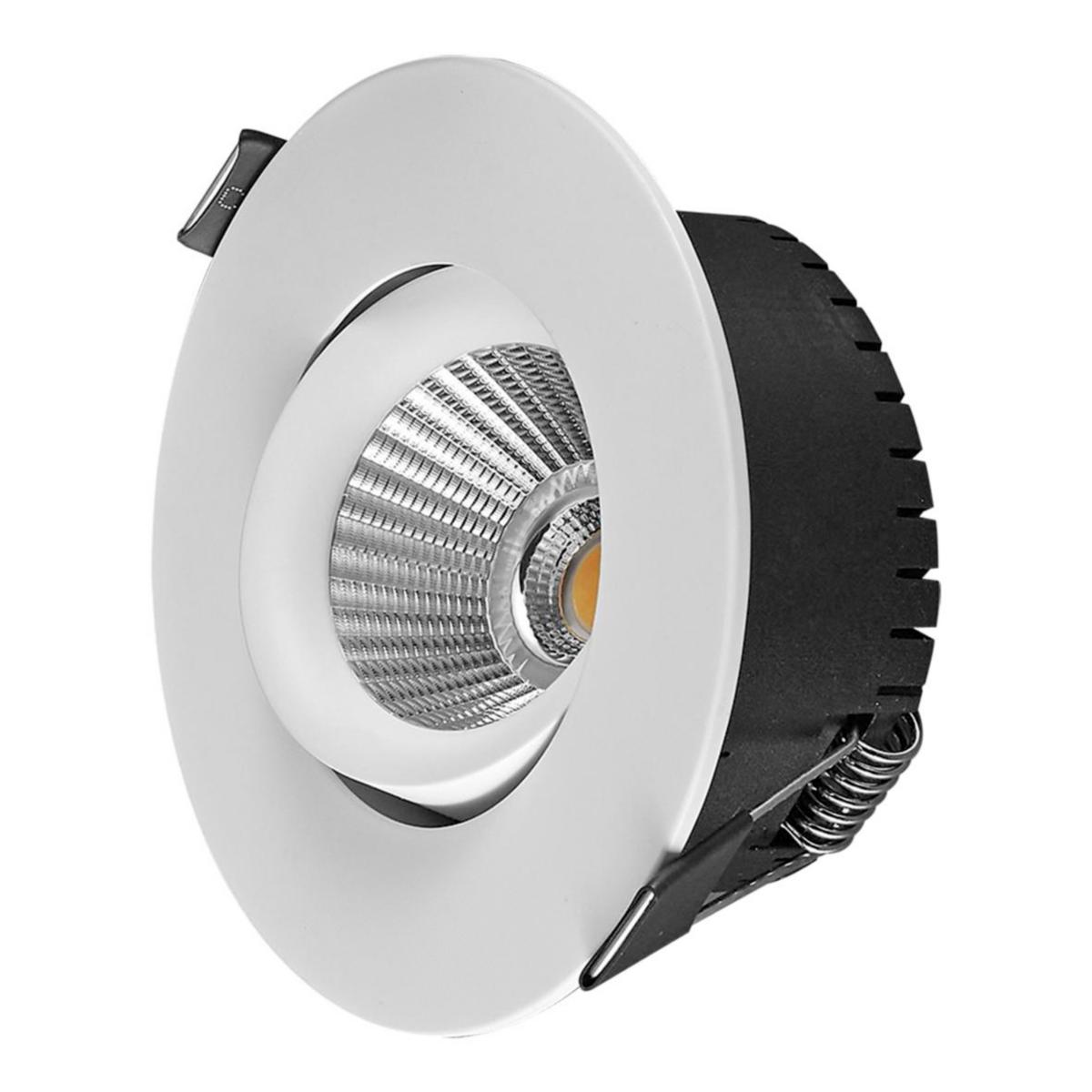

Downlight Bondy
Downl B-5MW2730 5,5W White
Article number: Suppl. article no:
7475907
B-5MW2730
to see price and stock
A dimmable and user-friendly luminaire where the installation can be carried out directly against the insulation. Tiltable. Changeable color temperature 2700K or 3000K, via switch on connection cable. Plastic-free packaging.
- Article number: 7475907
- Suppl. article no: B-5MW2730
- Ean no: 7340132804040
- Material class QT4440
Technical data
- Packagin Size: 1 PCS/50 PCS
- Max. system power: 5.5 W
- Colour temperature: 2700-3000 K
- Housing colour: White
- Surface brushed: No
- Beam angle: 21-40° - Medium beam
- Outer diameter: 85 mm
- Built-in diameter: 60-70 mm
- Built-in width: 58.5 mm
- Built-in height: 32.5 mm
- Built-in length: 58.5 mm
- Height/depth: 35 mm
- Lamp type: LED not exchangeable
- Adjustability: Rotatable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Luminous intensity: 646 cd
- Reflector: High-gloss
- Housing material: Aluminium
- Number of poles: 3
- Dimming phase cut-off (trailing edge): Yes
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Width: 85 mm
- Power factor: 0.9
- Dimming phase cut-on (leading edge): Yes
- Degree of protection (IP): IP44
- Dimmable: Yes
- Lamp holder: None
- Light distribution: Symmetric
- Light distributor: Reflector
- Light outlet: Direct
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for lamp power: 3.8 W
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- Length: 85 mm
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 230 V
- Voltage type: DC
- Rated lifetime L70/B50 at 25 °C: 50000 h
- Suitable for ceiling mounting: Yes
- Connectable conductor cross section: 0.5-2.5 mm²
- Surface protection: Powder coating
- Covering of the luminaire with thermally insulating material possible: Yes
- Beam angle adjustable: No
- Colour of light adjustable: Positions
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Exchangeable control gear: Yes
- Operation by Bluetooth: No
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Reflector colour: Silver
- Nominal current: 230 mA
- Connection type: Push-in clamp
- Luminous flux: 420 lm
- REACH Date: 2022-11-09
- REACH Information obligation: No
- Emergency power supply integrated: No
