SG Armaturen
Downlight Junistar Eco Isosafe, SG-Armaturen

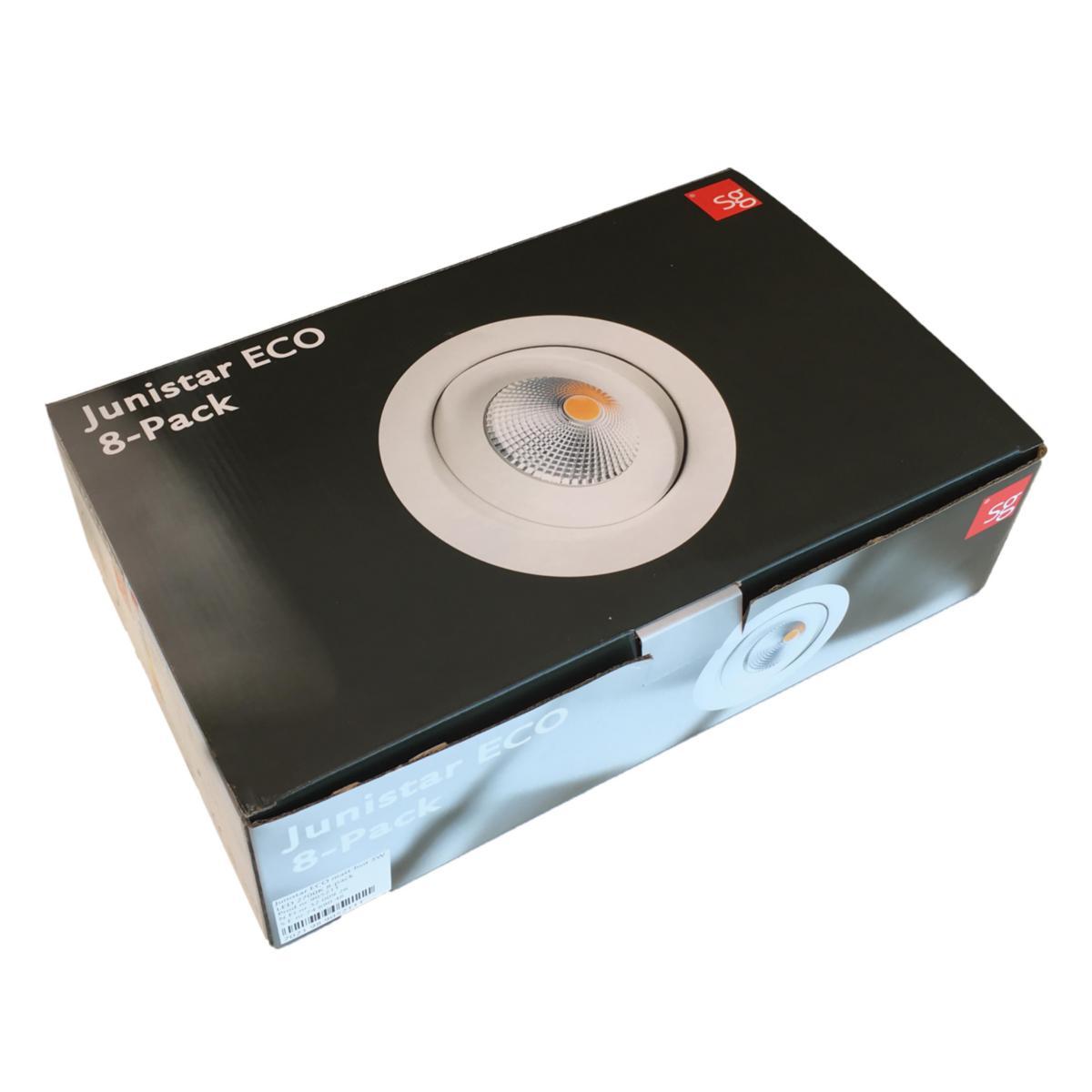

Junistar Eco B 6W 3000K 8-pack
Article number: Suppl. article no:
7475315
905224
to see price and stock

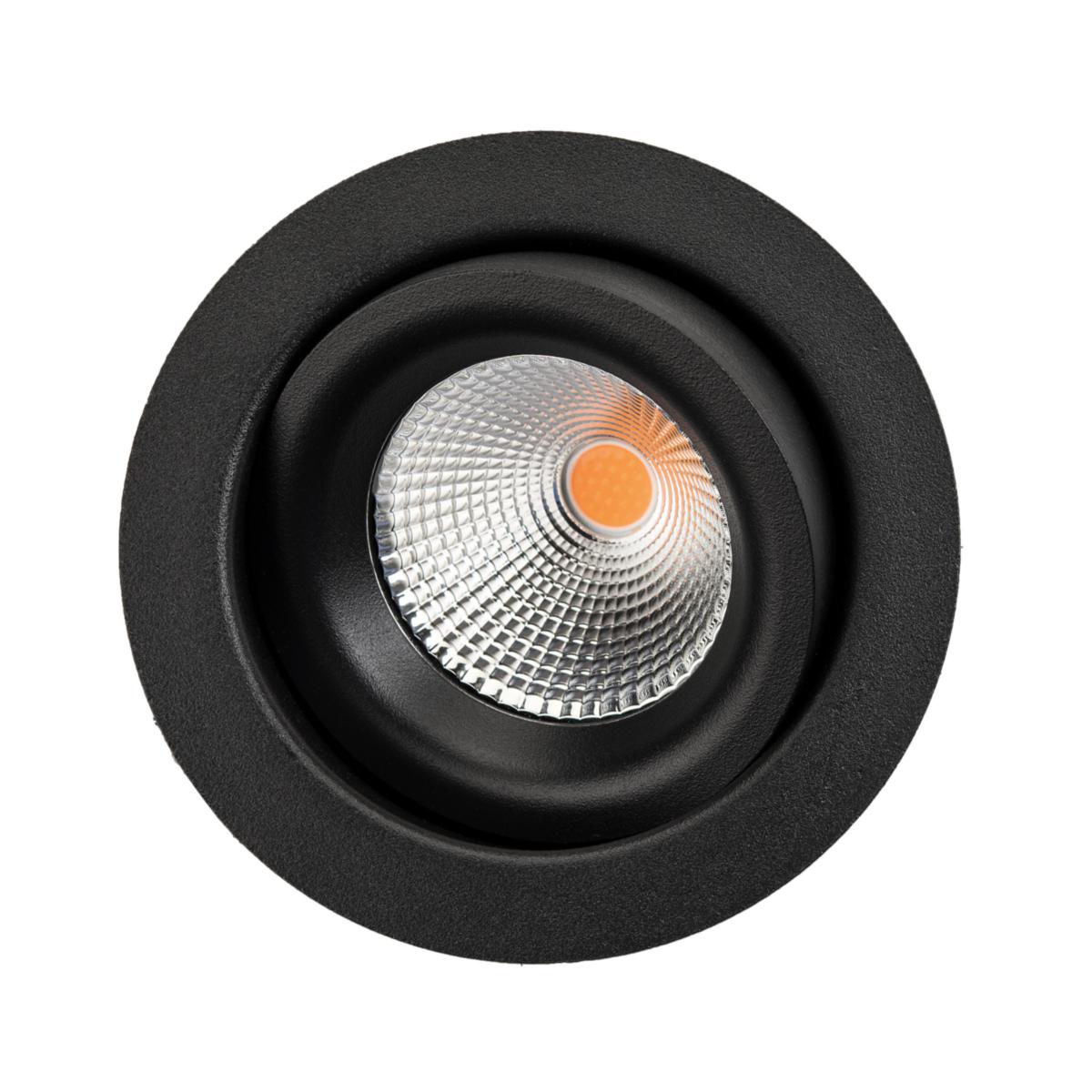

Cost-effective downlight for indoor use. Can be directed up to 30° in two directions. Integrated efficient LED chip with good light quality and delivered complete in 8-pack with pre-assembled dimmable driver. Simple and quick assembly with terminal block for further feeding. With a hole diameter of Ø68-83 mm, the fixture is suitable for replacing existing older fixtures. Made of die-cast aluminium, steel and clear glass. Class II and IP44. IsoSafe products can be installed directly in the insulation.
- Article number: 7475315
- Suppl. article no: 905224
- Ean no: 7021989052241
- Material class QT4420
Technical data
- Packagin Size: 1 Pack/6 Pack/72 Pack
- Max. system power: 7 W
- Rated luminous flux according to IEC 62722-2- 1: 590 lm
- Colour temperature: 3000 K
- Housing colour: Black
- Surface brushed: Yes
- Beam angle: 41-80° - Wide beam
- Outer diameter: 90 mm
- Built-in diameter: 68-83 mm
- Built-in height: 40 mm
- Height/depth: 40 mm
- Lamp type: LED not exchangeable
- Adjustability: Swivelling
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Reflector: High-gloss
- Housing material: Aluminium
- Number of poles: 2
- Dimming phase cut-off (trailing edge): Yes
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Material cover: Glass transparent
- Degree of protection (IP): IP44
- Dimmable: Yes
- Degree of protection (IP), front side: IP44
- Degree of protection (IP), rear side: IP20
- Lamp holder: None
- Conductor cross section: 1 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Reflector
- Light outlet: Direct
- Luminaire efficacy: 84 lm/W
- Suitable for number of light sources: 1
- Suitable for built-in mounting: Yes
- Colour rendering index CRI: 90-100
- Suitable for lamp power: 6 W
- Nominal voltage: 230 V
- Voltage type: AC
- Suitable for ceiling mounting: Yes
- Impact strength: IK00
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-2.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM2
- Covering of the luminaire with thermally insulating material possible: Yes
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 90 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 80 %
- Failure rate at median useful life of 100,000 h at 25 °C ambient (tq): 10 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 20 %
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 168
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 168
- IFTTT support available: No
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Connection type: Push-in clamp
- REACH Date: 2022-08-24
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
