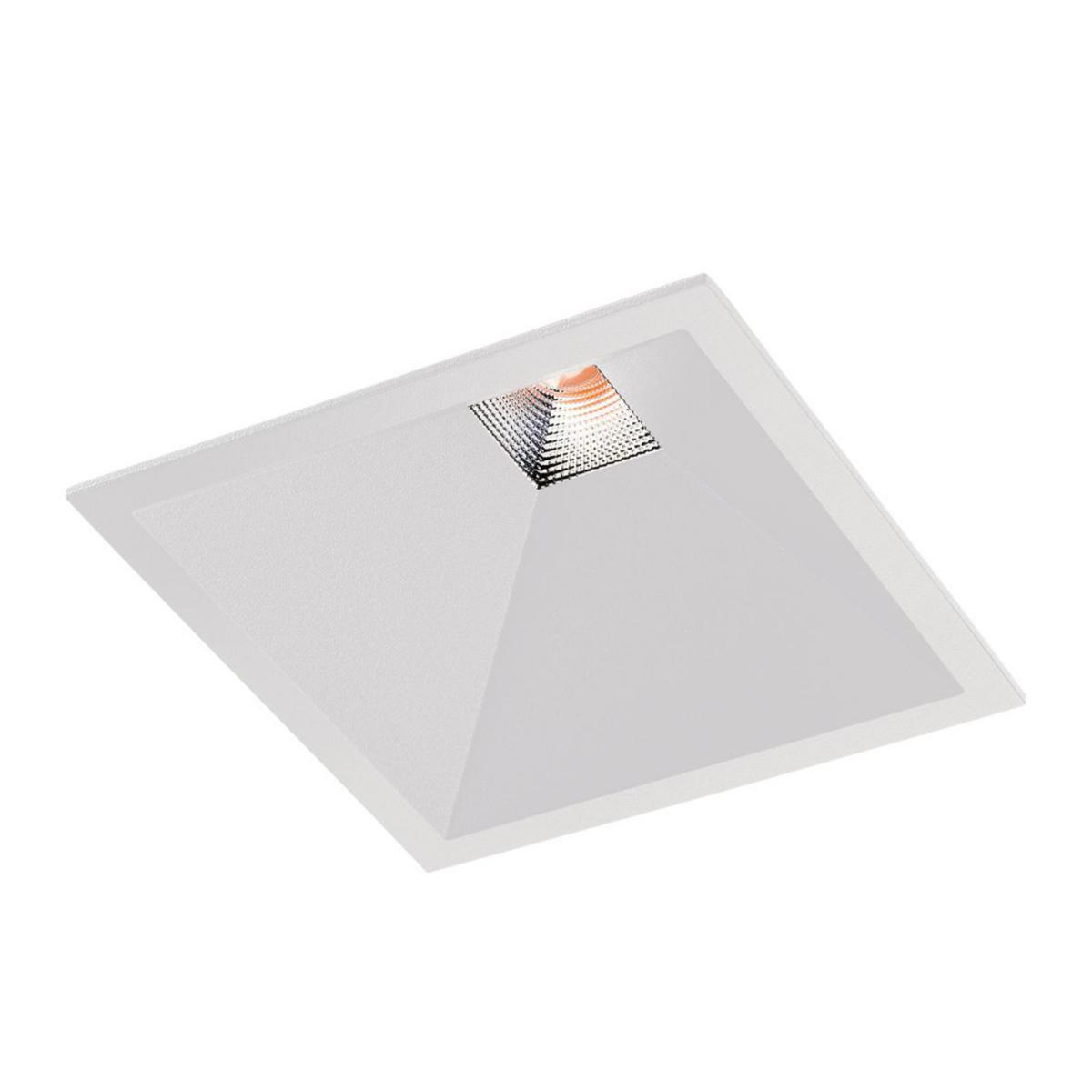

Downlight Soft Square
Soft Square White 2700K
Article number: Suppl. article no:
7475224
903260
to see price and stock
Soft Square is a downlight with a completely square shape that fits in modern environments, both in residential and commercial contexts. It provides wide light scattering with a marked shape. The recessed light source in the black protection plate gives an exclusive glare-free appearance with harmonious, flicker-free light and superb color reproduction. Soft Square is intended for square holes but can also be installed in round holes if extra frames are used.
- Article number: 7475224
- Suppl. article no: 903260
- Ean no: 7021989032601
- Material class QT4420
Technical data
- Packagin Size: 1 PCS/20 PCS/480 PCS
- Max. system power: 12 W
- Rated luminous flux according to IEC 62722-2- 1: 900 lm
- Colour temperature: 2700 K
- Housing colour: White
- Beam angle: 41-80° - Wide beam
- Dimming DALI: No
- Dimming DALI-2: No
- Built-in diameter: 83 mm
- Built-in height: 57 mm
- Height/depth: 58 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Reflector: High-gloss
- Housing material: Aluminium
- Number of poles: 2
- Dimming phase cut-off (trailing edge): Yes
- Width: 95 mm
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Photobiological safety according to EN 62471: RG1
- Material cover: Glass transparent
- Degree of protection (IP): IP43
- Dimmable: Yes
- Degree of protection (IP), front side: IP43
- Degree of protection (IP), rear side: IP20
- Conductor cross section: 1 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light outlet: Direct
- Luminaire efficacy: 75 lm/W
- Suitable for number of light sources: 1
- Suitable for built-in mounting: Yes
- Colour rendering index CRI: 90-100
- Suitable for lamp power: 12 W
- Length: 95 mm
- Nominal voltage: 220-240 V
- Voltage type: AC
- Suitable for ceiling mounting: Yes
- Impact strength: IK00
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-2.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM1
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 80 %
- Failure rate at median useful life of 100,000 h at 25 °C ambient (tq): 10 %
- Luminous flux adjustable: Positions
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 30
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 51
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Nominal current: 200-300 mA
- Connection type: Push-in clamp
- Luminous flux: 500-1000 lm
- REACH Date: 2022-08-26
- REACH contains candidate substances: Bly
- REACH Information obligation: Yes
