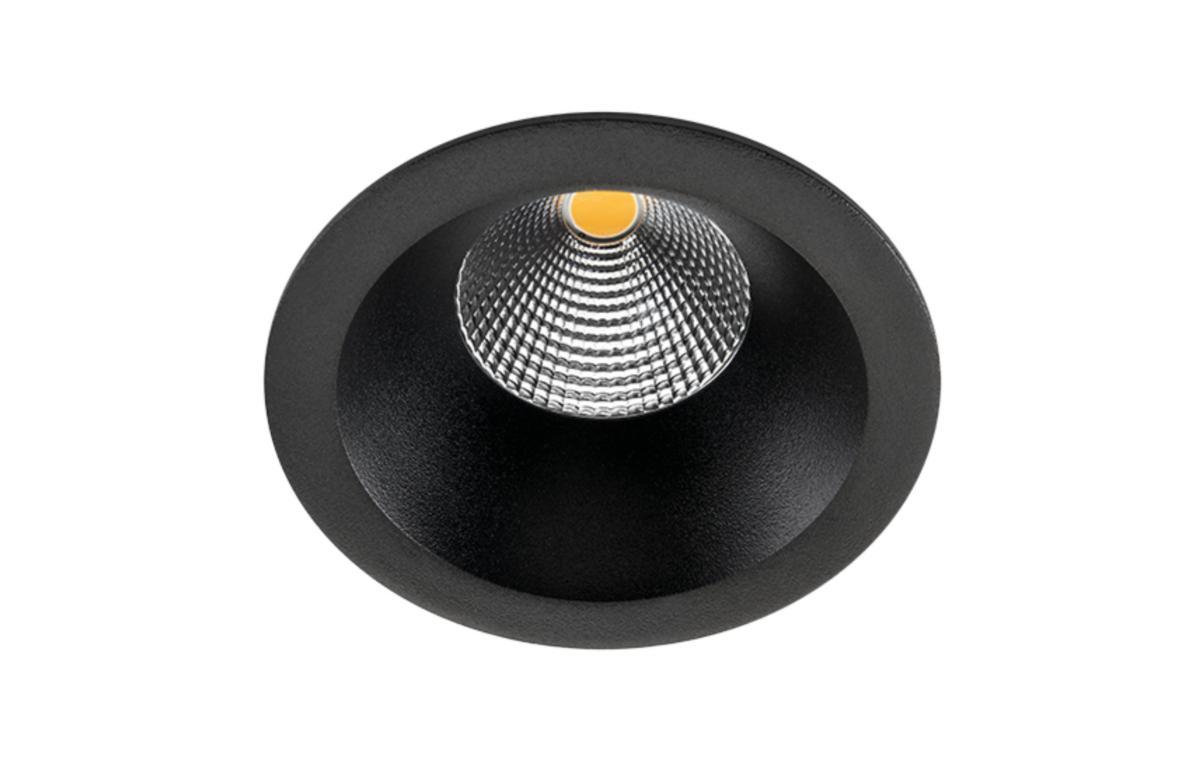

Downlight LED Junistar Soft, SG-Armaturen
JUNISTAR SOFT BLACK 9W 3000K JUNISTAR SOFT
Article number: Suppl. article no:
7474805
903316
to see price and stock
Junistar Soft is a luminaire with a reflector and light source that is moved deep into the luminaire housing. This contributes to a light with good dimming. The high protection class IP44 means that the luminaire is well suited in all environments in the home where it is approved with IP44. The product is fully dimmable and the recommended dimmer is 13 603 12.
- Article number: 7474805
- Suppl. article no: 903316
- Ean no: 7021989033165
- Material class QT4420
Technical data
- Packagin Size: 1 ST/20 ST
- Max. system power: 11 W
- Rated luminous flux according to IEC 62722-2- 1: 760 lm
- Colour temperature: 3000 K
- Housing colour: Black
- Surface brushed: No
- Beam angle: 41-80° - Wide beam
- Dimming DALI: Yes
- Dimming DALI-2: Yes
- Outer diameter: 94 mm
- Built-in diameter: 83 mm
- Built-in height: 51 mm
- Height/depth: 53 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Reflector: High-gloss
- Housing material: Aluminium
- Suitable for workplace according to EN 12464-1: No
- Number of poles: 5
- Dimming phase cut-off (trailing edge): No
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Rated ambient temperature according to IEC 62722-2-1: 25 °C
- Photobiological safety according to EN 62471: RG1
- Filament test according to IEC 60695-2-11: None
- Material cover: Glass transparent
- Degree of protection (IP): IP54
- Dimmable: Yes
- Degree of protection (IP), front side: IP54
- Degree of protection (IP), rear side: IP20
- Lamp holder: None
- Conductor cross section: 1 mm²
- Light distribution: Symmetric
- Protection class according to IEC 61140: II
- Light distributor: Reflector
- Light outlet: Direct
- Luminaire efficacy: 69 lm/W
- Suitable for number of light sources: 1
- Colour rendering index CRI: 90-100
- Suitable for built-in mounting: Yes
- Suitable for clamp-mounting: No
- Suitable for lamp power: 9 W
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-230 V
- Voltage type: AC
- Suitable for ceiling mounting: Yes
- Degree of protection (NEMA): Other
- Impact strength: IK00
- Type of wiring: Suitable for loop-through wiring
- Connectable conductor cross section: 0.5-2.5 mm²
- Surface protection: Powder coating
- Colour consistency (McAdam ellipse): SDCM2
- Covering of the luminaire with thermally insulating material possible: No
- Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq): 90 %
- Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq): 90 %
- Failure rate at median useful life of 100,000 h at 25 °C ambient (tq): 10 %
- Failure rate at median useful life of 50,000 h at 25 °C ambient (tq): 10 %
- Beam angle adjustable: No
- Colour of light adjustable: No
- Compatible with Amazon Alexa: No
- Compatible with Apple HomeKit: No
- Compatible with Google Assistant: No
- Constant light output (CLO): No
- Luminous flux adjustable: No
- Max. number of luminaires per miniature circuit breaker B16 (MCB): 123
- Max. number of luminaires per miniature circuit breaker C16 (MCB): 123
- IFTTT support available: No
- Exchangeable control gear: Yes
- Energy efficiency class of the light source according to EU regulation 2019/2015: F
- Energy efficiency class: A++
- Nominal current: 100-260 mA
- Connection type: Push-in clamp
- LED nominal current at constant current: 180-255 mA
- REACH Date: 2025-02-26
- Energy efficiency class of the provided exchangeable built-in lamp: A+
- REACH Information obligation: No
