Designlight
Downlight LED P, Designlight
DOWNL P-196B FIXED 11W BLACK P-196B
Article number: Suppl. article no:
7474646
P-196B
to see price and stock

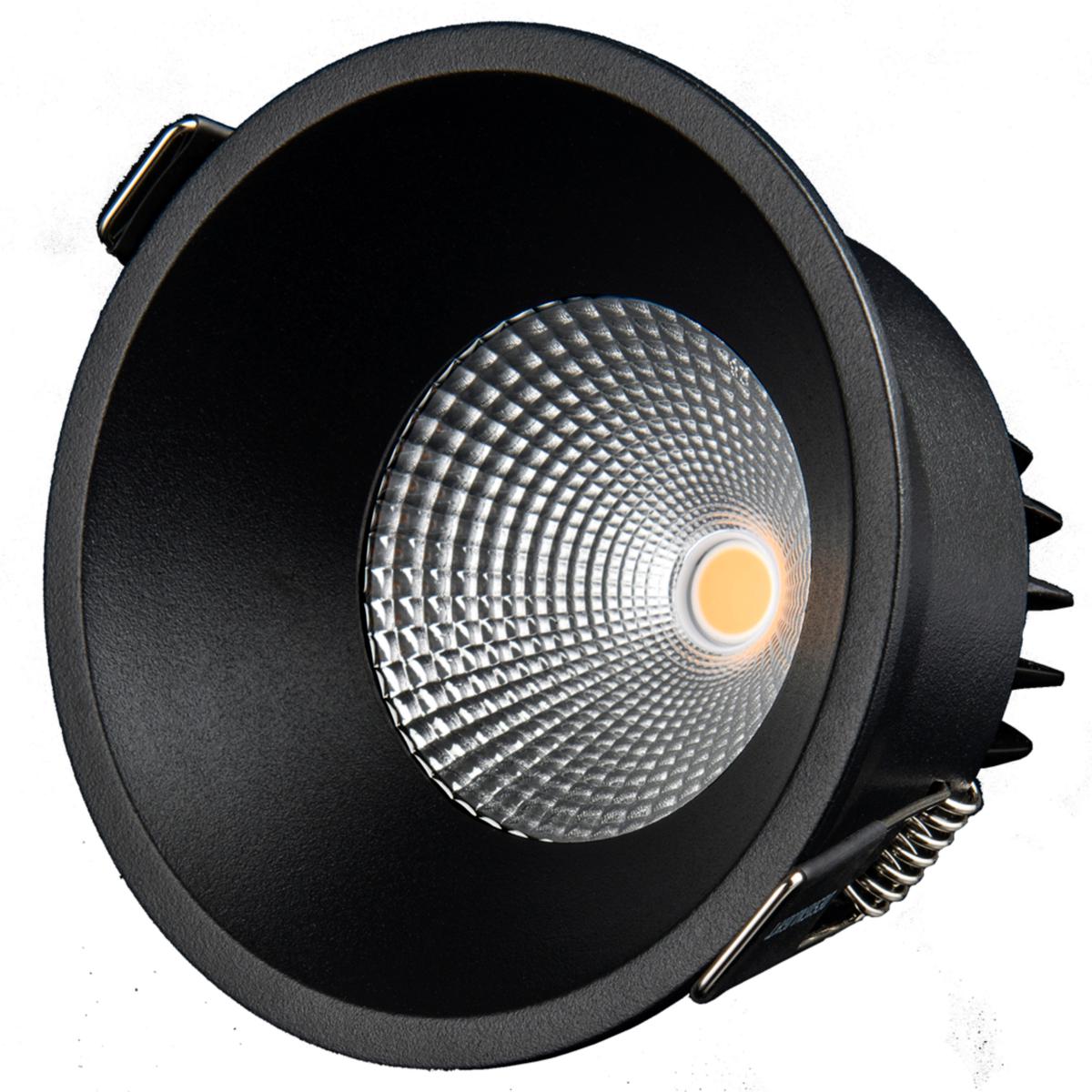

A nicely designed slightly larger luminaire with a high luminous flux. The light source is recessed far into the luminaire, which reduces the risk of glare. Two replaceable reflectors are included that can easily be changed to the desired spread angle. IP44 enables use even in bathrooms or in outdoor eaves. Dimmable. Incl. driver
- Article number: 7474646
- Suppl. article no: P-196B
- Ean no: 7340123803243
- Material class QT4440
Technical data
- Packagin Size: 1 ST/36 ST
- Energy label: F
- Type: P-196B
- Max. system power: 11 W
- Rated luminous flux according to IEC 62722-2- 1: 780 lm
- Colour temperature: 3000 K
- Housing colour: Black
- Surface brushed: No
- Beam angle: 21-40° - Medium beam
- Dimming DALI: No
- Outer diameter: 98 mm
- Built-in diameter: 92 mm
- Built-in height: 72 mm
- Height/depth: 72 mm
- Lamp type: LED not exchangeable
- Adjustability: Not adjustable
- With light source: Yes
- Colour of light: White
- With control gear: Yes
- Type of control gear: LED operating device current-controlled
- Reflector: High-gloss
- Housing material: Aluminium
- Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: No
- Dimming Sine Wave Reduction: Yes
- Dimming 0-10 V: No
- Dimming 1-10 V: No
- Dimming DMX: No
- Dimming DSI: No
- Dimming LineSwitch: No
- Dimming RF: No
- Dimming Zigbee: No
- Dimming programmable: No
- Dimming manufacturer's proprietary system: No
- Filament test according to IEC 60695-2-11: None
- Material cover: None
- Degree of protection (IP): IP44
- Lamp holder: None
- Light distribution: Symmetric
- Protection class according to IEC 61140: III
- Suitable for number of light sources: 1
- Suitable for built-in mounting: Yes
- Colour rendering index CRI: 90-100
- Suitable for clamp-mounting: No
- Suitable for low voltage cable system: No
- Suitable for pedestal/floor mounting: No
- Suitable for suspended mounting: No
- Suitable for light-track mounting: No
- Suitable for traverse mounting: No
- Suitable for wall mounting: No
- Suitable for surface mounting: No
- With light sensor: No
- With movement sensor: No
- Nominal voltage: 220-230 V
- Voltage type: AC
- Suitable for ceiling mounting: Yes
- Dimming Touch and Dim: No
- Colour consistency (McAdam ellipse): SDCM3
- REACH Date: 2021-08-16
- REACH Information obligation: No
