Downlight LED P-1603530, Designlight - DOWNL P-1601530 MULTI 7W 3000K
F
Designlight

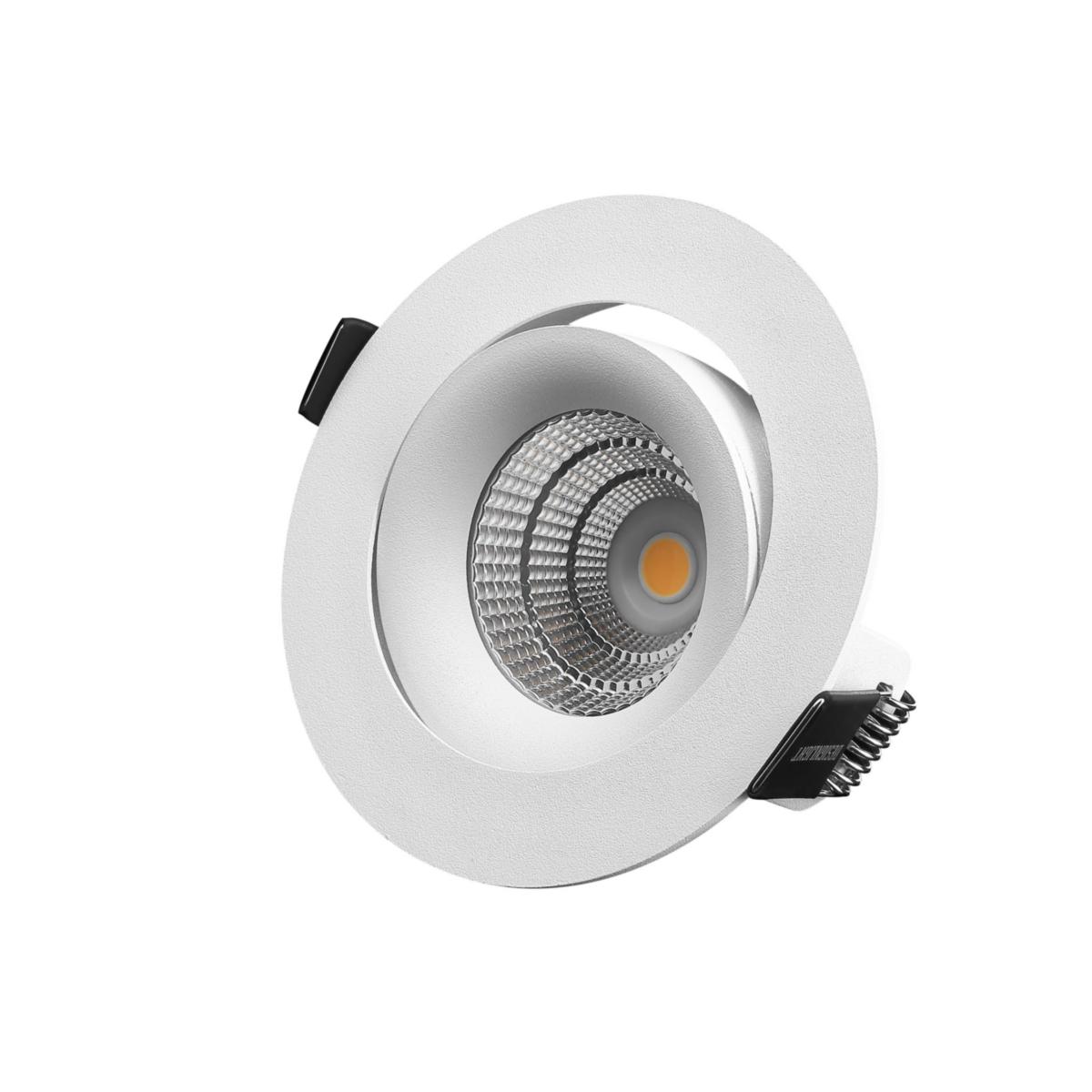

Downlight LED P-1603530, Designlight

DOWNL P-1601530 MULTI 7W 3000K
Article number:
7464736
Suppl. article no:
P-1603530
‌
‌
‌
‌
‌
 to see price and stock
Energimärkt F
A designed, positionable, low-profile downlight with a beautiful appearance and very good light output.
Can be placed in any desired position. Incl. actuator.
  • Article number:
    7464736
  • Suppl. article no:
    P-1603530
  • Ean no:
    7340132800882
  • Material class
    QT4441
Technical data
  • Energy label: F
  • Type: P-1603530
  • Max. system power: 7 W
  • Rated luminous flux according to IEC 62722-2- 1: 590 lm
  • Colour temperature: 3000 K
  • Housing colour: White
  • Beam angle: 21-40° - Medium beam
  • Dimming DALI: FALSE
  • Outer diameter: 94 mm
  • Height/depth: 41 mm
  • Lamp type: LED not exchangeable
  • Adjustability: Rotatable
  • With light source: TRUE
  • Colour of light: White
  • With control gear: TRUE
  • Type of control gear: LED operating device current-controlled
  • Luminous intensity: 1044 cd
  • Reflector: High-gloss
  • Housing material: Aluminium
  • Dimming phase cut-off (trailing edge): TRUE
  • Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: FALSE
  • Dimming with push-button: FALSE
  • Dimming 0-10 V: FALSE
  • Dimming 1-10 V: FALSE
  • Dimming DMX: FALSE
  • Dimming DSI: FALSE
  • Dimming LineSwitch: FALSE
  • Dimming RF: FALSE
  • Dimming Zigbee: FALSE
  • Dimming potentiometer (integrated): FALSE
  • Dimming programmable: FALSE
  • Dimming manufacturer's proprietary system: FALSE
  • Dimming phase cut-on (leading edge): TRUE
  • Degree of protection (IP): IP44
  • Dimmable: TRUE
  • Light distribution: Symmetric
  • Protection class according to IEC 61140: III
  • Light outlet: Direct
  • Suitable for built-in mounting: TRUE
  • Colour rendering index CRI: 80-89
  • Suitable for clamp-mounting: FALSE
  • Suitable for pedestal/floor mounting: FALSE
  • Suitable for suspended mounting: FALSE
  • Suitable for light-track mounting: FALSE
  • Suitable for traverse mounting: FALSE
  • Suitable for surface mounting: FALSE
  • With light sensor: FALSE
  • With movement sensor: FALSE
  • Nominal voltage: 220-230 V
  • Voltage type: AC
  • Rated lifetime L70/B50 at 25 °C: 40000 h
  • Suitable for ceiling mounting: TRUE
  • Dimming Touch and Dim: FALSE
  • Colour consistency (McAdam ellipse): SDCM3
  • Covering of the luminaire with thermally insulating material possible: FALSE
  • Luminous flux: 620 lm
  • REACH Date: 2021-08-16
  • Spreading angle: 36°
  • Tiltable: Yes
  • Energy efficiency class of the built-in lamp: A++, A+, A (LED)
  • REACH Information obligation: No
  • Emergency power supply integrated: FALSE
  • Dimming depending on control gear: FALSE
  • Dimming GPRS: FALSE
